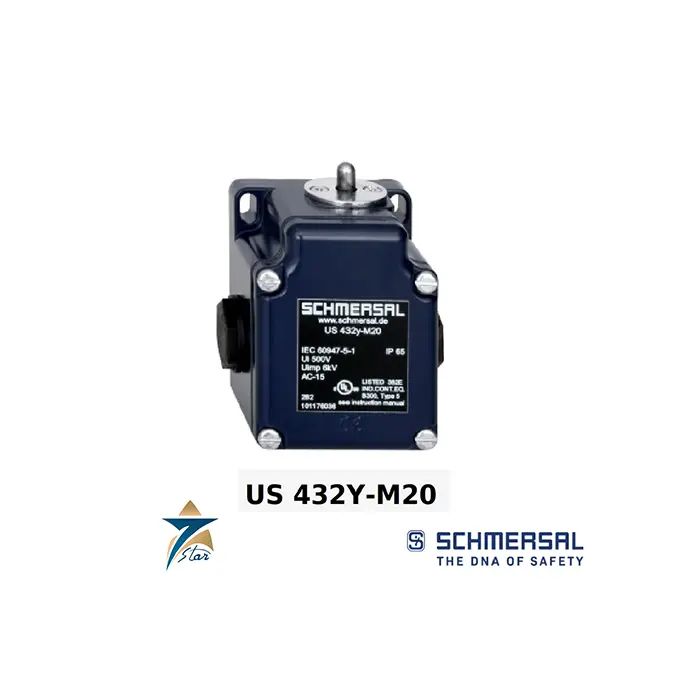

Schmersal US 432Y-M20 – Pneumatically Operated Limit Switch
Overview:
Reliable Mechanical Limit Switching
The Schmersal US 432Y-M20 is part of Schmersal’s U 432 universal range of limit and position switches engineered for industrial automation environments. Built for durability and precision, this model uses a mechanical actuator (plunger or optionally other actuators) to detect motion or position changes and trigger electrical contacts accordingly.
Designed for use in conveyors, machine tools, safety systems, and control panels, the US 432Y-M20 helps operators and controllers track machine element positions, safely detect end-of-travel points, and implement automation feedback loops with high reliability.
Key Features & Specifications
Model: Schmersal US 432Y-M20 limit switch (Part No: 101176036)
Manufacturer:Schmersal — specialist in industrial switching and safety solutions
Main Components: Metal housing, actuating plunger (basic configuration)
Contacts:2 mechanical contacts (adjustable switching points and contact function)
Housing Material: Rugged metal enclosure for industrial durability
Dimensions (Basic Component): ~62 mm (W) × 80 mm (H) × 50 mm (D)
Cable Entries:3 × M20 × 1.5 threaded entries for secure cabling
Connection: Screw terminals (M20 × 1.5)
Mechanical Life:≥10,000,000 operations minimum for reliable long-term service
Switching Principle: Slow-action mechanical contact triggering
Contact Materials: Silver contacts for reliable conductivity
Protection Rating:IP65 protection against dust and low-pressure water jets (industrial protection)
Rated Insulation Voltage:500 V (IEC/EN standards)
Thermal Test Current:16 A (tested current capacity)
Actuating Speed Range: ~1 mm/min to ~1 m/s
Operating Temp: Typically −20 °C to +60 °C (industrial ambient range)
This switch is factory-configurable with various actuator heads and contact arrangements, allowing tailored solutions for different industrial machine configurations.
Industrial Applications
The Schmersal US 432Y-M20 Limit Switch is suitable for a broad range of automation and safety applications including:
Conveyor end-of-travel detection
Position monitoring on industrial machinery
Safety interlocks and control feedback loops
Packaging and material handling systems
Robotics and handling automation
Process control panels and machine safety systems
Its robust metal enclosure and adjustable switching points make it ideal for environments where vibration, dust, or mechanical wear are present, ensuring longer life and consistent detection performance.
Request a Quote for Schmersal US 432Y-M20 – Pneumatically Operated Limit Switch
Ensure reliable position detection and automation control with the Schmersal US 432Y-M20 Limit Switch — contact Seven Star LLC for pricing, availability, and application support.
Technical Overview
The Schmersal US 432Y-M20 is a plunger-type limit switch used for position and end-of-travel detection on pneumatic cylinders and general industrial machinery. Per Schmersal’s official product configurator, the US 432Y-M20 provides 2 normally-closed (NC) contacts operating on a slow-action, double-break switching principle, actuated via a plastic roller plunger with an actuating angle of 20°. The minimum actuation speed is 60 mm/min, with a maximum vertical actuation speed of 1 m/s, giving the switch a wide operating range suitable for both slow manual actuation during commissioning checks and fast automated cylinder cycling in production.
The switch housing is constructed from light alloy die-cast with a painted finish, measuring 62 × 80 × 50 mm, and is rated IP65 for protection against dust and water jets in typical industrial environments. Contact specifications include a 1.5 mm contact gap with silver contacts rated at 6A/400VAC, a mechanical life of at least 10 million operations, an electrical contact life of 2 million operations, and a maximum switching frequency of 3,000 operations per hour — figures reflecting a robust design intended for continuous-duty industrial automation service. The switch carries cULus listing and complies with EN IEC 60947-5-1, with a rated insulation voltage of 500V and an impulse withstand voltage of 6kV. Operating temperature range is −20°C to +60°C.
Applications
The US 432Y-M20 is used for sensing the end positions of pneumatic cylinders, detecting the presence or position of moving machine parts, door and gate interlocking, and general limit/position sensing throughout industrial automation systems — wherever a robust, mechanically-actuated position switch is preferred over a proximity or optical sensor for reliability in harsh production environments.
Why Seven Star LLC
Seven Star LLC supplies genuine Schmersal limit switches to customers across Oman and the GCC, and helps confirm the correct actuator type, contact configuration, and housing material for a specific machine safety or position-sensing application before order confirmation.
Request a Quote for Schmersal US 432Y-M20 – Pneumatically Operated Limit Switch
Contact Seven Star LLC to request a quotation for the Schmersal US 432Y-M20 limit switch. Our team can help confirm the correct configuration for your pneumatic cylinder or machine positioning application, and support reliable delivery across Oman and the wider GCC region.
Ordering Notes
When requesting a quotation, please confirm the required contact configuration, actuator type, and cable/connector entry style for your installation, so Seven Star LLC can supply the correct US 432Y-M20 variant for your pneumatic cylinder or machine positioning application.
Reliability in High-Cycle Applications
With a rated mechanical life of 10 million operations and an electrical contact life of 2 million operations, the US 432Y-M20 is well suited to high-cycle production lines where a limit switch may be actuated thousands of times per shift. Seven Star LLC recommends tracking actuation counts on critical positioning applications and planning proactive replacement before contact wear begins to affect switching reliability, helping avoid unplanned line stoppages caused by a failed limit switch.
Genuine Parts Assurance
Sourcing a genuine Schmersal switch rather than a lower-cost unauthorized substitute matters for machine safety applications, since counterfeit or gray-market switches may not meet the stated contact life, insulation voltage, or certification standards under real operating conditions. Seven Star LLC’s authorized supply channel ensures every US 432Y-M20 switch delivered to customers in Oman and the GCC is genuine and fully compliant with its stated Schmersal specification.
