Brand: Lovato Electric

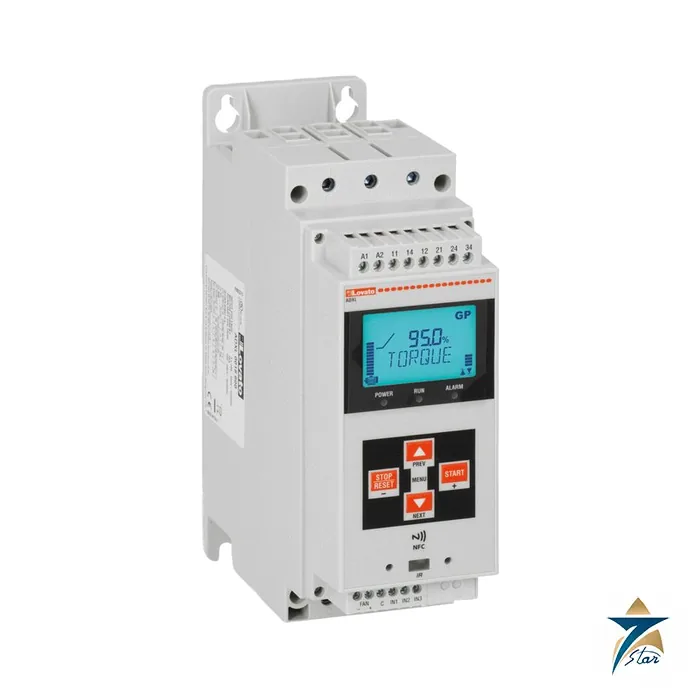

Lovato ADXL0030600 30 A Soft Starter with Built-in Bypass
Description
A 30 A soft starter with bypass and smartphone set-up
The ADXL0030600 is a soft starter from the Lovato Electric ADXL series, rated for a starter current of 30 A on three-phase supplies from 208 to 600 V AC. It controls two phases, includes a built-in bypass relay and is programmed from a backlit icon LCD or from a smartphone over NFC, even when the starter is not powered. It suits pumps, fans, compressors and conveyors where a smooth start and stop reduces mechanical and electrical stress compared with direct-on-line starting.
The unit offers torque ramp, voltage ramp and constant torque starting, each combined with an adjustable current limit, and torque ramp, voltage ramp or free-wheel stopping. Motor protection, supply monitoring and starter diagnostics are built in, so a separate overload relay is not needed for many applications. The table lists the values from the Lovato data sheet.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | Soft starter, ADXL series, two-phase control, order code ADXL0030600 |
| Rated supply voltage | 208 to 600 V AC, 50/60 Hz, three phase |
| Auxiliary supply (Us) | 100 to 240 V AC |
| Rated starter current Ie | 30 A |
| IEC motor ratings (T up to 40 degC) | 7.5 kW at 230 V AC, 15 kW at 400 V AC, 18.5 kW at 500 V AC |
| UL motor ratings (T up to 40 degC) | 10 HP at 220-240 V AC, 15 HP at 380-415 V AC, 20 HP at 440-480 V AC, 25 HP at 550-600 V AC |
| Controlled phases | 2 |
| Bypass | Built in |
| Start methods | Torque ramp, voltage ramp or constant torque, each with current limit |
| Stop methods | Torque ramp, voltage ramp, free-wheel stop |
| Other functions | Kick start, dynamic braking, PTC input, event log, hour and start counters, clock and calendar |
| Digital inputs | 3 (2 dry contact, 1 dry contact or PTC, configurable) |
| Digital outputs | 3: 2 x 1 NO (3 A 250 V AC) and 1 changeover (5 A 250 V AC on the NO contact) |
| Programming | Backlit icon LCD with keypad, NFC, optical port; optional RS485 board |
| Operating temperature | -20 to +60 degC, current derating above 40 degC of 0.5 % per degC |
| Altitude | 1000 m without derating; 0.5 % per 100 m above |
| Degree of protection | IP00 |
| Dimensions (W x H x D) | 75 x 218 x 171.5 mm |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-2, UL 508, CSA C22.2 No. 14; cULus, EAC, RCM |
Protection and diagnostics
On the motor side the ADXL monitors overload at starting and during running with selectable trip classes, locked rotor, current asymmetry and minimum torque for dry-run detection. On the supply side it detects loss of supply, phase loss, phase sequence, frequency out of limits and minimum or maximum voltage. Starter faults reported include overcurrent, overtemperature, bypass failure, shorted phase, temperature sensor and cooling fan faults and a maintenance request.
Mounting and accessories
The soft starter is screw-fixed, or mounted on a 35 mm DIN rail with the optional EXP8003 kit. Cooling is natural, with a forced-cooling fan available as an option. Lovato lists the CX01 USB and CX02 Wi-Fi optical connectors for PC set-up and the EXC1042 board for RS485 communication. The data sheet table gives a weight of 2.1 kg while the logistics data gives 2180 g, so confirm the figure if packing weight matters. For a comparison with another brand on the same site, see the Schneider Altistart 22, or browse all motor soft starters.
Documents and quotation
The ADXL instruction manual (Lovato document I456, 2026 edition) is attached to this page and covers wiring, parameters, protections and NFC programming. Please send the full order code, quantity and delivery location through the quotation form, and Seven Star LLC will revert with availability.
Datasheets & Documents
- Instruction manual Lovato ADXL instruction manual (EN, I456, 2026) Download
Reviews (0)
About brand
Lovato Electric is an Italian manufacturer of low voltage electrical devices for industrial applications, founded in 1922 in Bergamo and still family owned. Seven Star LLC, an independent supplier in Muscat, quotes Lovato Electric contactors, motor protection circuit breakers, generator controllers and power factor controllers for control panels, motor starters and stand-by power systems.
Motor control, protection and energy management
The Lovato Electric catalogue covers contactors and motor protection circuit breakers, thermal overload relays, soft starters, pushbuttons and signalling, switch disconnectors, time and monitoring relays, energy meters, power factor controllers and engine and generator controllers. Each catalogue page links its instruction sheet, leaflet and declarations of conformity.
Ordering Lovato Electric products
Send the full order code, coil or supply voltage, quantity and any approval needed for the project. With the order code, the matching version can be checked against its documentation before a quotation is issued.
Related products
Frequently Asked Questions
What current is the ADXL0030600 rated for?
The rated starter current is 30 A, with an operating voltage of 208 to 600 V AC.
Does it include a bypass?
Yes. The bypass relay is built in.
How is it programmed?
Through the backlit LCD and keypad, or from a smartphone with the Lovato NFC app, even with the starter unpowered.
What auxiliary supply does it need?
100 to 240 V AC.
Does it have a Modbus port?
Not as supplied. RS485 communication is an optional board, listed by Lovato as EXC1042.
