Rittal AX 9206.100 Ex Plastic Enclosure 600 x 600 x 200 mm

Overview

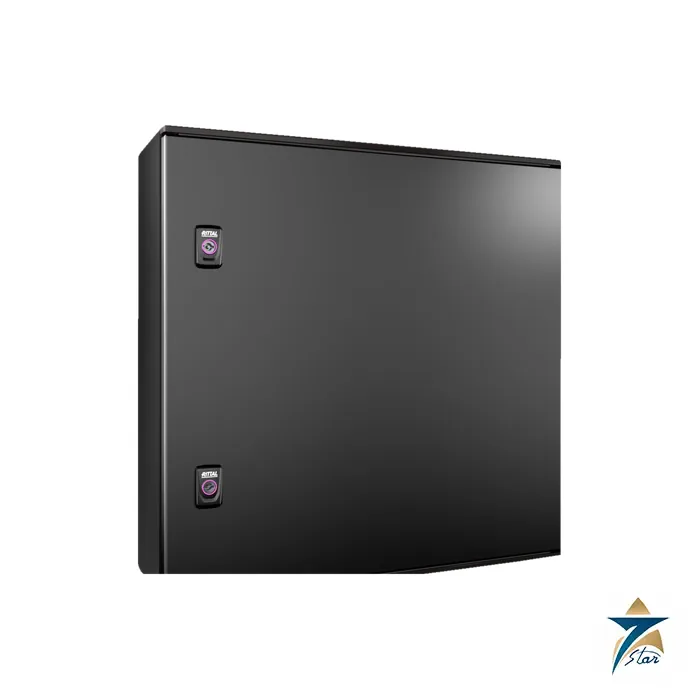

The Rittal AX 9206.100 is an empty Ex enclosure with a hinged door, moulded from fibreglass-reinforced unsaturated polyester rather than metal. It belongs to the AX plastic Ex family that Rittal developed for explosion hazard areas such as refineries, petrochemical plants, energy installations and drilling platforms, and it is approved for Zones 1 and 2 as well as Zones 21 and 22 with explosion protection by increased safety (Ex e) and by enclosure (Ex tb). External dimensions are 600 mm wide, 600 mm high and 200 mm deep, which makes it a mid-size housing for control gear, terminal rows and instrument wiring.

Seven Star LLC supplies the Rittal AX 9206.100 to oil and gas operators, petrochemical contractors, power producers and water utilities in the Sultanate of Oman and the GCC. Plastic Ex enclosures are chosen when corrosion, weight or insulation matter more than a metallic shield, so our team in Muscat reviews the zone, ambient temperature and cable entry plan with you before quoting.

Construction of the Rittal AX 9206.100

The enclosure body of the Rittal AX 9206.100 is made in one piece from impact-resistant, glass-fibre-reinforced unsaturated polyester with a surface resistance below 10⁹ ohm, so static charge is dissipated safely. According to the manufacturer’s tender text it is self-extinguishing to UL 94 V-0 and is a class II insulated enclosure to VDE 100 part 410. The door uses the same material, with a circumferentially bonded silicone seal and a double sealing strip with an integral rain protection edge at the top and bottom of the door.

The symmetrical layout allows the whole enclosure to be rotated through 180 degrees, and the door has a stainless steel 130 degree hinge that can be changed from left to right. The finish is RAL 9011. A printed QR code on the body, mounting plate, door and type plate gives direct access to documentation and ensures traceability of the individual parts, which is a practical benefit when maintenance teams audit hazardous-area equipment.

Explosion Protection of the Rittal AX 9206.100

The Rittal AX 9206.100 is rated for Zone 1 and 2 or 21 and 22 under the ATEX Directive 2014/34, with explosion protection category to EN 60079 given as increased safety (Ex e) and enclosure protection (Ex tb). The ambient temperature range is −40 °C to +70 °C, although the installed equipment may limit it. Certificates listed on the datasheet are IEC Ex PTB 10.0011U and PTB 03 ATEX 1011U, and approvals also include ATEX and IECEx quality assurance and UR and C-UR recognition.

These are component certificates for an empty enclosure. The installer must still verify the complete assembly, including terminals, glands, heat dissipation and any equipment fitted, so that the finished panel meets the requirements of the hazardous area where it will operate.

Key Features of the Rittal AX 9206.100

The manufacturer’s documentation highlights these features of the Rittal AX 9206.100.

• Ex e and Ex tb certification for gas Zones 1 and 2 and dust Zones 21 and 22, with IEC Ex, ATEX and UL HazLoc approvals across the AX Ex family.
• Fibreglass-reinforced polyester construction is robust, outdoor-compatible and highly UV resistant, which suits pipelines, tank farms and offshore structures.
• The enclosure is fully insulated to class II at 1000 V DC for personal protection.
• The mounting plate is 3 mm zinc-plated steel measuring 505 x 525 mm, fixed on pre-assembled bolts and easily earthed through machined keyholes.
• A 25 mm pitch pattern with universal brackets allows rails and punched sections to be fitted without drilling the enclosure.
• Mounting lugs on the door reinforcement frame allow door-mounted accessories such as wiring plan pockets.
• Wall brackets can be fixed from the outside while retaining the UL approval, and a pole clamp can be fitted to the external threaded inserts.
• The AX Ex range is supplied on request, with lead time confirmed at quotation for project work.

Industrial Applications

Rittal positions the AX plastic Ex enclosure for the petrochemicals industry, the energy sector and dust-laden environments, for example in refineries or on drilling platforms, as well as for outdoor use on oil tankers and pipelines. In Oman the comparable settings are oil and gas gathering stations in the interior, refineries and terminals, fuel storage at Sohar and Salalah, grain and bulk handling, and coastal utilities where humid, salt-laden air attacks bare steel.

The Rittal AX 9206.100 is typically used as a junction box, instrument marshalling box or local control enclosure for devices that must stay in the hazardous area. Seven Star LLC supplies it with engineering support in Muscat and can quote compatible junction boxes, glands and accessories with it.

Technical Specifications

The values below are taken from the Rittal data sheet for the Rittal AX 9206.100.

Request a Quote for Rittal AX 9206.100

To request a quotation for the Rittal AX 9206.100, send the Seven Star LLC instrumentation team your zone classification, gas or dust group, ambient temperature and cable entry plan. We will confirm the article number, advise on stock and lead time for Oman and the GCC, and provide the Rittal data sheet. Compatible hazardous-area items, including the MEDC SM87JB Ex junction box, the Cooper Crouse-Hinds GUP315 junction box and the Schneider Electric Kaedra modular enclosure system, can be quoted with it.
