Brand: Spelsberg

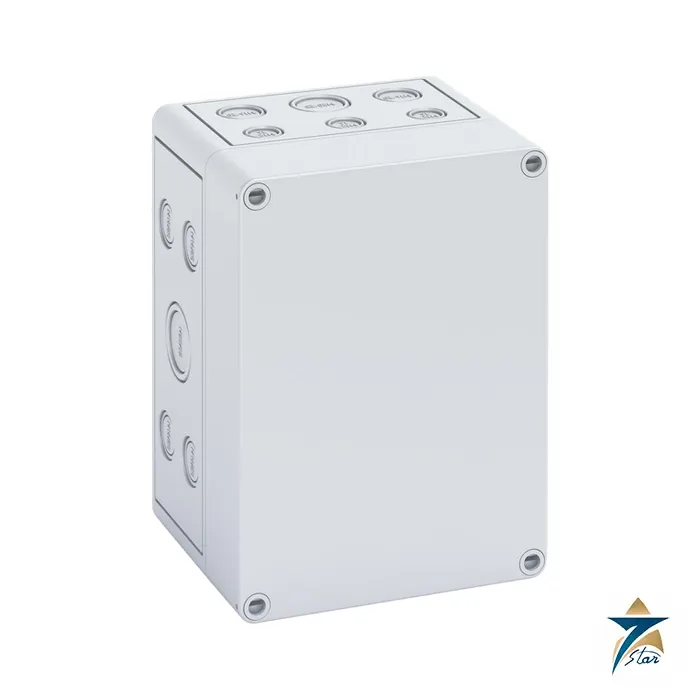

Spelsberg TK PC 1813-11-m Polycarbonate Enclosure
Description
A UV-resistant polycarbonate enclosure with knockouts for industrial areas
The Spelsberg TK PC 1813-11-m is an empty glass-fibre reinforced polycarbonate enclosure, 180 x 130 x 111 mm, with knockouts for M12, M16, M20, M25 and M32 glands on the sides. Spelsberg lists it for industrial environments and protected outdoor areas, with approvals for ships and offshore installations and for ammonia resistance.
Technical specifications
| Parameter | Specification |
|---|---|
| Product number | 12791601 |
| Dimensions W x L x H | 180 x 130 x 111 mm |
| Weight | 0.515 kg |
| Material | Glass-fibre reinforced polycarbonate base and cover, polyurethane seal |
| Knockouts | M12/M16/M20/M25/M32, 23 on the sides |
| Protection type | IP66, protection class II |
| Rated insulation voltage | 690 V AC / 1000 V DC |
| Impact strength | IK08 |
| Flammability | UL94 V2; glow-wire 960 degC (EN 60695-2-11) |
| UV resistance / halogen free | UV-resistant / halogen free |
| UL type rating | 4X, 12/12K |
| Test marks | UL (UL 50, CSA 22.2 No. 94.1-07; UL 50E, CSA C22.2 No. 94.2-07), DLG ammonia resistance, DNV ships and offshore |
| Ambient temperature | -35 to +80 degC (24 h average 60 degC) |
| Features | Sealable, stackable; cover screw torque 1.2 Nm |
| EAN / ETIM class | 4013902352760 / EC000261 |
| Installation location | Industrial environments and protected outdoor areas; wall or ceiling mounting |
| Maximum relative humidity | 95 % at 25 degC; 50 % at 40 degC |
| Customs tariff number | 85389099 |
| Colour and fastening | Grey base and cover; internal fixing points; cover screws of glass-fibre reinforced polyamide |
Selection and installation
The wide temperature range and UV resistance suit protected outdoor locations in hot climates, and the knockouts remove the need to drill. Accessories listed on the data sheet include mounting plates, DIN rails (TS 15 and NS 35), a mast or pipe fixing set, external fixing lugs, an external hinge set and a cable tray fastening. Mount the gear on a plate so that the wall is not drilled through the sealed body.
Accessory part numbers
Spelsberg lists these accessories for the TK PC 1813-11-m: mast or pipe fixing set MABF 100-1 (89602001), external fixing lugs kit TK ABL (19400101), external hinge set ASS-gro (19000501), mounting material HBA (19000101), mounting plates TK MPI-1813 (19501101) and TK MPS-1813 (19701101), standard rails TS 15-154 (19715401) and NS 35-144 (19814401), and cable tray fastening KTB 1-100 (89602901). None are supplied with the enclosure.
Note that the sheet states IP66 only, not IP67, so it should not be specified where temporary immersion is possible. The DLG ammonia mark and the DNV mark (class: ships and offshore installations) are listed as test marks alongside the UL marks, and the sheet describes the enclosure as sealable and stackable with a cover screw torque of 1.2 Nm.
Compare the Rittal AX 9206.100 for a metal option, or view the automation accessories category.
Documents and quotation
The Spelsberg data sheet for product number 12791601 is attached and is the source of the figures above; the sheet itself states that its statements are without guarantee, so confirm any critical value with the current Spelsberg listing. Send the product number, the cable entries needed and the quantity through the quotation form for availability from Seven Star LLC.
Datasheets & Documents
- Datasheet Spelsberg TK PC 1813-11-m data sheet Download
Reviews (0)
About brand
Spelsberg is a family-run German manufacturer of electrical installation and enclosure technology based in Schalksmühle. The company dates back to 1904, when the company Kaiser & Co was founded in the town, and it supplies installation and industrial enclosures to building, industry, renewables, marine and infrastructure sectors.
Spelsberg enclosures and junction boxes
The industrial range includes empty polycarbonate, ABS and polystyrene enclosures of the TK and TG series, the large GEOS-L enclosures up to 40 x 50 cm, Abox junction boxes with terminals, and fire-resistant WKE junction boxes for tunnel applications. The company also offers customizing services such as CNC processing, printing and assembly.
Requesting enclosures from Seven Star LLC
Seven Star LLC, an independent supplier in Muscat, lists selected Spelsberg enclosures for control panels, junction points and outdoor installations in Oman and the GCC. Send the product number or the full type designation, the cable entries needed and the environment, and Seven Star LLC will prepare a quotation from the Spelsberg data sheet.
Related products
Frequently Asked Questions
Is the enclosure UV-resistant?
Yes, the data sheet lists it as UV-resistant and halogen free.
What temperature range applies?
Minimum -35 degC and maximum 80 degC, with a 24-hour average of 60 degC.
Which certificates are listed?
UL, DLG ammonia resistance and DNV for ships and offshore installations.
What knockouts are fitted?
Knockouts for M12, M16, M20, M25 and M32 glands, 23 on the sides.
What accessories exist?
Mounting plates, DIN rails, a mast or pipe fixing set, fixing lugs, a hinge set and a cable tray fastening.
