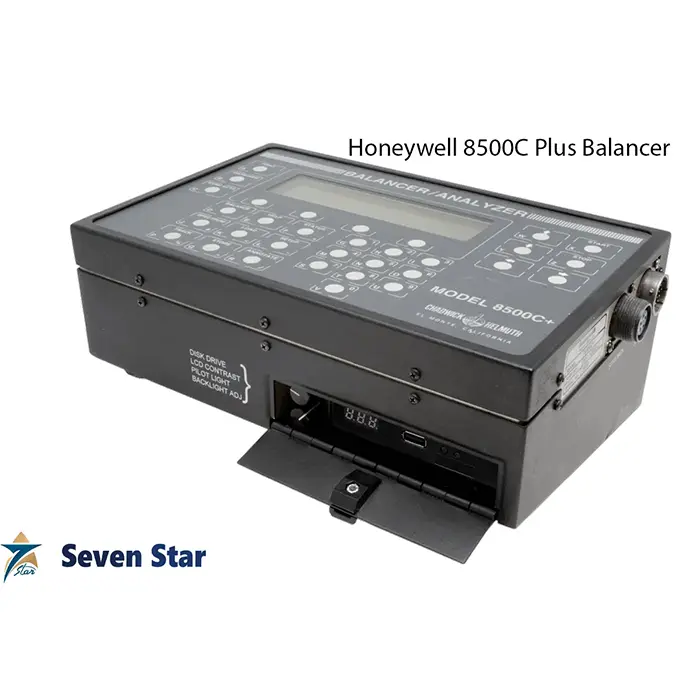

Honeywell 8500C Plus Balancer (Chadwick-Helmuth)

Overview

The Honeywell Chadwick-Helmuth 8500C Plus is the balancer version of the 8500C family, a portable digital computer and FFT analyzer for rotor track and balance, fixed wing propeller track and balance, helicopter and fixed wing vibration surveys, and vibration analysis and trend analysis. The Plus configuration carries the full analyzer functionality with the bright backlit display, integral printer, built-in help and Smart Chart technology. The instrument computes the balance solution from the acquired vibration and tachometer data and prints the report at the aircraft, which makes the 8500C Plus a complete carry-on balancing station.

The 8500C Plus balance job is completed in one session: the kit is installed, the data are acquired during the run-up, the corrections are computed with the track readings and the report is printed at the aircraft. The FFT analyzer resolves the vibration signal into the rotor and propeller components, and the Smart Chart technology guides the operator through the solution. The memory stores the configuration per aircraft type, so the same instrument serves the complete fleet without re-entering the parameters.

Engineering and Design

The balancer acquires the vibration signal from the sensor mounted on the aircraft pick-up point and the speed reference from the tachometer, then resolves the amplitude and phase at the rotor or propeller speed. Track data from the blade markers is entered into the unit, and the computer calculates the corrections required on the adjustable blades or the balance weights. The integral printer issues the balance report and the correction data immediately, eliminating transcription errors between the aircraft and the workshop.

The Smart Chart technology built into the unit replaces the paper charts of the older instruments with the stored factory charts, and the built-in help guides the operator through the procedure step by step. Because the same acquisition routine is used for surveys, the 8500C Plus also supports vibration analysis and trend analysis between scheduled maintenance events. The instrument is supported by the Chadwick-Helmuth calibration and repair service operated by Diagnostic Solutions International.

Before the balance run, the 8500C Plus is configured with the rotor geometry and the sensor channel for the aircraft, and the tachometer input is connected to the speed reference. During the run the operator records the blade track data while the analyzer acquires the vibration signal, and the computer computes the corrections from the combined data set. The report is printed at the aircraft, showing the measured amplitudes, the phase angles and the recommended adjustments, so the crew applies the corrections and verifies the result on the next run. The same unit supports helicopter and fixed wing procedures, which reduces the number of instruments required for a mixed fleet. The analyzer memory stores the survey data for trend analysis, and the Smart Chart technology replaces the paper charts of the older instruments. The unit is verified against the reference vibration source during the annual calibration, and the spare parts, sensors and accessories are available from the Chadwick-Helmuth service organisation. For MRO workshops that operate several aircraft types, the configuration parameters are stored per type and recalled at the start of each job.

Key Features

• Portable balancer analyzer for rotor track and balance
• Propeller track and balance for fixed wing aircraft
• Vibration surveys and trend analysis
• Digital computer and FFT analyzer
• Integral printer for on-aircraft reports
• Smart Chart technology with built-in help

Applications

The 8500C Plus is used by helicopter operators, fixed wing operators, MRO organisations and military aviation units for rotor track and balance, propeller balancing, vibration troubleshooting and scheduled vibration surveys. The unit covers both rotorcraft and fixed wing aircraft in one kit.

Specifications

Honeywell Chadwick 8500C+ Instrument and System Specifications

The 8500C+ main unit is compact for a flight-line analyser: 27.4 × 19.1 × 10.2 cm and 3.22 kg. It runs from aircraft or ground power between 12 and 28 V DC, with 28 V DC nominal, and Honeywell offers a battery option for self-contained work. The operator interface is a backlit, heated LCD measuring 1.4 × 5.3 inches at 64 × 256 pixels. An integral thermal printer produces a permanent record of what is shown on screen, so no external printer is needed at the aircraft.

For balancing, Honeywell quotes a vibration amplitude accuracy of plus or minus 0.2 dB and a phase accuracy of plus or minus 2 degrees. The FFT spectrum can be set to a maximum frequency anywhere from 200 to 600,000 rpm in user-selected steps, with 461 lines of resolution up to 7.5 kHz and 400 lines up to 10 kHz. At system level the 8500C+ handles 36 vibration channels and four phase inputs, and the FasTrak optical tracker measures blade track to within 1 mm plus 5 percent of reading.

The instrument operates from -40 to +55 °C, although the printer and disk drive are limited to -10 °C at the low end, and it can be stored between -40 and +70 °C. Internal memory is up to 2 MB of SRAM and 1 MB of flash EPROM. Data storage and transfer use an integral 1.44 MB 3.5 inch disk drive in PC/MS-DOS format, a point worth planning for today because survey data must be moved to a PC by floppy disk. A Strobex connector allows visual tracking and phase measurement.

8500C+ Kit Contents, Smart Charts, Route Disks and Analysis Software

Honeywell supplies the 8500C+ as a flight-line-ready kit in a rugged carrying case, with the accessories, software and instructions for one or more specific aircraft types. The system interfaces to a range of vibration and phase sensors and uses either the FasTrak optical blade tracker or a Strobex for helicopter blade track. Honeywell states that applications exist for more than 300 rotary and fixed-wing aircraft types, so application software for the aircraft concerned should be specified when ordering.

Three software elements define how the unit is used. Smart Charts guide the operator through installation, data acquisition and a main rotor smoothing solution that balances mass and blade track together while respecting weight and tab limits. Balance Charts cover tail rotors, propellers, shafts and other rotating parts. Route disks turn the analyser into a menu-driven data collector for vibration surveys of up to 36 channels. Survey data can then be archived and trended on a PC with VibraLog or Vib Review.

Why Seven Star LLC

Seven Star LLC supplies Honeywell Chadwick-Helmuth 8500C Plus balancers and accessories to aviation maintenance organisations across Oman and the GCC. Every part number is checked before your order is confirmed, and our team verifies the kit configuration and accessories for your aircraft type. The 8500C Plus builds on the base 8500C platform, so where a facility already owns 8500C accessories, we confirm which are genuinely compatible with the Plus variant before recommending a full new accessory set, since some accessories carry forward while others do not, and buying a complete new set unnecessarily is an avoidable cost.

For MRO facilities upgrading from an earlier Chadwick-Helmuth balancer to the 8500C Plus, we help plan the transition around your maintenance schedule so the upgrade happens during planned downtime rather than disrupting an active balancing program. Our team is also glad to walk through the practical differences between the base 8500C and the Plus variant for facilities still deciding which platform best matches their diagnostic needs and budget, rather than defaulting to the newest model simply because it is the newest one available on the market today, regardless of whether it’s genuinely the right fit for the specific work their maintenance team does day to day, on real aircraft, under real operational time pressure, day after day, aircraft after aircraft.

Request a Quote for Honeywell 8500C Plus Balancer (Chadwick-Helmuth)

Submit a formal inquiry through our RFQ page with the 8500C Plus part number, your aircraft type and the required kit configuration. We will confirm availability and respond with a formal quotation. | Inquiry Form
