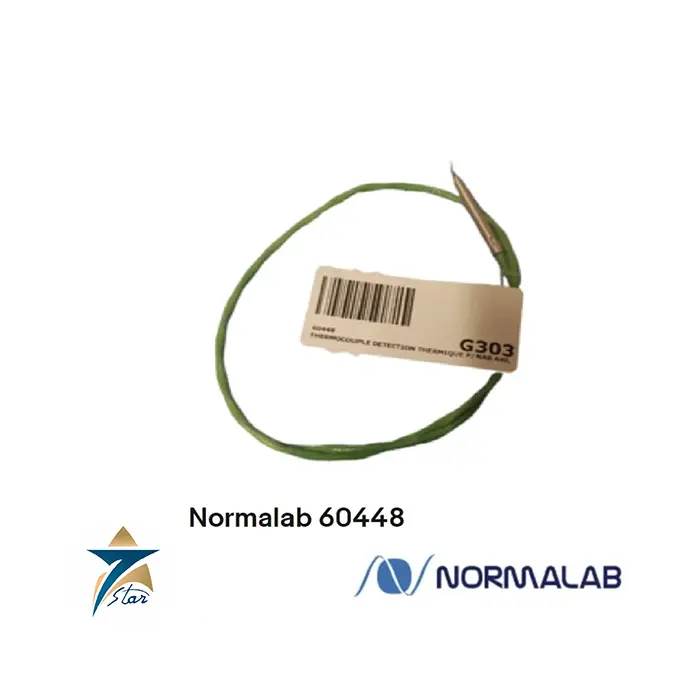

Normalab 60448 – Thermal Detection Thermocouple

Overview

Precision Thermocouple for Thermal Detection

The Normalab 60448 Thermal Detection Thermocouple is engineered as a high-responsiveness thermocouple sensor intended for integration with laboratory and industrial test equipment. This thermocouple is widely used as the detection element in flash point testers such as the Normalab NPM 450, where it ensures precise monitoring of temperature changes during testing procedures.

In flash point and other temperature-critical tests, accurate detection of when a sample reaches a specific thermal threshold is crucial. The 60448 thermocouple reliably captures these transitions and transmits precise electrical signals to the test instrument’s control system, enabling trustworthy measurement results and test automation.

Core Technology & Design

• Thermocouple-based Detection: Uses a pair of dissimilar metals to generate an electrical voltage proportional to temperature — a standard and reliable method for industrial temperature measurement.

• Rapid Thermal Response: Designed to detect temperature changes quickly, which is vital in tests where thermal events occur rapidly.

• Thermocouple Cable Assembly: Often supplied as a detection thermocouple cable that interfaces with test instruments like flash point testers.

• Durable Construction: Built to withstand repeated thermal cycling and constant use within test environments, ensuring long service life and consistent performance.

In Normalab instruments, components like the 60448 thermocouple work alongside other accessories (e.g., Pt100 probes, sample cups, ignition systems) to provide a complete test solution driven by precise thermal feedback loops.

Where It’s Used

The Normalab 60448 Thermocouple is a critical part in systems such as:

• Flash Point Test Instruments

  — e.g., Normalab NPM 450 automated flash point tester for petroleum products, where the thermocouple helps detect flash point events.

• Thermal Detection Modules in laboratory analyzers

• Industrial Measurement Systems requiring real-time temperature feedback

• Temperature Logging and Control in precision test rigs where accurate detection determines key process outcomes

Because of its precision and responsiveness, this thermocouple is suitable not just for flash point testers, but for any industrial system that depends on accurate temperature threshold detection.

Technical Specifications

Key Benefits & Features

• High-Accuracy Thermal Detection: Ensures precise temperature sensing for critical test processes.

• Fast Response Time: Rapid signal generation as temperature changes — ideal for dynamic testing environments.

• Reliable Performance: Designed for consistent operation across repeated test cycles.

• Durable Sensor Construction: Built to resist thermal stress and long-term operational use.

• Instrumentation Integration: Easily integrates with compatible Normalab and other industrial test machines that require thermocouple feedback.

Compatibility and Replacement

As a detection thermocouple used in flash point and other thermal-threshold test instruments, the 60448 is typically ordered as a like-for-like replacement part when the original sensor in a Normalab tester degrades from repeated thermal cycling. Confirming the exact cable length, connector type, and thermocouple type (matched to the specific test instrument model) before ordering avoids a mismatch that would prevent correct signal interpretation by the tester’s control system.

Identifying the Correct Replacement

A detection thermocouple is part of the tester’s measurement chain, so a correct match is essential. Before ordering the Normalab 60448, confirm:

• The tester model and serial number from the instrument label
• The part number on the existing sensor, the instrument parts list or the service manual
• The position of the sensor in the test head and its function in the method
• The connector type and cable length of the installed sensor

A photo of the installed part and the tester nameplate is usually enough for us to confirm the match. Where the tester has been modified or a sensor from another source has been fitted, tell us, as the original part may differ.

Replacement and Verification

Switch off the tester and let the test head cool completely before removing the old sensor. Note the routing of the cable and the exact position of the tip, because detection depends on the tip being in the correct place relative to the sample cup and ignition source. Fit the new thermocouple in the same position, secure the cable away from hot parts and moving mechanisms, and reconnect.

After replacement, run a test with a certified reference material or a sample of known flash point and compare the result with the expected value and the repeatability of the method. Record the replacement and the verification result in the instrument log, as laboratories accredited to ISO/IEC 17025 need this evidence.

Troubleshooting

• Missed flash detection: tip bent or displaced, or deposits on the sensor.
• Erratic readings: damaged cable insulation or a loose connector.
• Open circuit error: broken thermocouple wire, often at the point where the cable flexes.

Cleaning the sensor gently after tests with heavy or sooty samples extends its life.

It is good practice to keep one spare sensor per tester in the laboratory, stored in its original packing away from solvents and heat. When a spare is taken into use, order the next one straight away so the laboratory is never left without a replacement during an audit or a busy testing period.

Applications in Oman and the GCC

Flash point testing is routine in refinery and terminal laboratories, fuel import quality control and marine fuel testing across the region. A spare Normalab 60448 on the shelf avoids a stopped tester during busy shipment periods.

Sourcing from Seven Star LLC

Seven Star LLC supplies Normalab spare parts and consumables and confirms compatibility with your tester before dispatch.

Request a Quote for Normalab 60448 – Thermal Detection Thermocouple

Enhance the accuracy and reliability of your thermal test processes with the Normalab 60448 Thermal Detection Thermocouple — contact Seven Star LLC for compatibility support, and availability.
