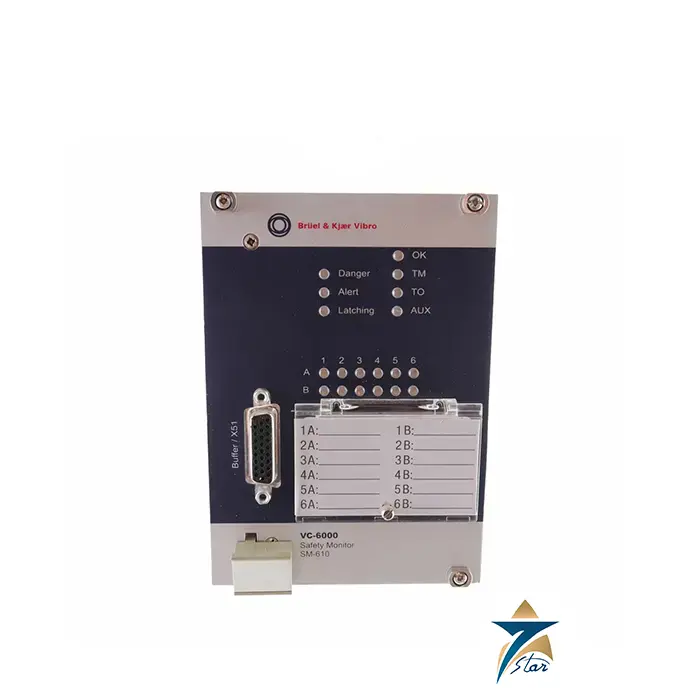

Brüel & Kjær Vibro VC-6000 SM-610-A01 Monitoring Module

Overview

The Brüel & Kjær Vibro sm-610-a01 Monitoring Module is a key component of the VIBROCONTROL 6000 (VC-6000) platform, a highly modular, rack-based machine protection and condition monitoring system developed by Brüel & Kjær Vibro. The VC-6000 system is widely used across heavy industries such as power generation, oil & gas, petrochemical, and manufacturing for continuous monitoring of rotating machinery performance and early fault detection.

This specific module, SM-610-A01, functions as a signal processing and monitoring unit within the VC-6000 rack. Installed alongside power supply modules and communication interfaces, it delivers high-speed data acquisition, alarm detection, and relay control for connected vibration and process sensors. Its role is critical in providing real-time condition measurements and protective signaling based on predefined thresholds and logic.

Core Functionality

The SM-610-A01 module accepts input signals from permanently installed sensors related to vibration, speed, and other machine condition parameters. It processes these signals through high-speed digital signal processing, checks them against configurable alarm and trip limits, and activates internal or external relay outputs when necessary. This ensures that machinery anomalies, such as excessive vibration or imbalance, are identified early to reduce the risk of catastrophic failure.

Being part of the modular VC-6000 system, the SM-610-A01 contributes to a scalable machine monitoring solution where multiple modules can operate independently yet communicate with a central visualization or control system via communication interfaces.

Industrial Applications

The VC-6000 SM-610-A01 Monitoring Module is employed in demanding industrial environments where continuous condition supervision and machine protection are paramount:

• Power plants for turbine, generator, and rotating equipment monitoring

• Oil & gas facilities for compressors and critical machinery protection

• Petrochemical plants for pump and motor condition tracking

• Heavy industrial manufacturing such as mills, blowers, and shaft-driven equipment

  Its rugged design and adaptability make it suitable for both standalone safety monitoring and deeper condition-based analytics when paired with software such as Compass 6000.

Integration and Scalability

The SM-610-A01 module integrates seamlessly with:

• PS-610 Power Supply Modules (for stable system power)

• CI-620 Communication Interfaces (for data exchange and visualization)

• Additional SM-610 series monitoring modules for multi-machine coverage

  These modules together form a powerful, scalable monitoring rack that can be tailored based on channel count, machine types, and specific monitoring needs.

By using multiple SM-610 modules, facilities can build a comprehensive monitoring network that not only detects faults but supports long-term condition-based maintenance strategies.

SM-610 Series Technical Notes

Across the SM-610 family within the VC-6000 platform, Brüel & Kjær Vibro publishes configurable input capacity of up to 8 vibration channels, 2 speed/phase channels, and 2 process inputs per module, with a measurable frequency range extending from DC up to roughly 20 kHz depending on the sensor type connected, and configurable measuring/integration times from around 10 milliseconds up to 100 seconds. Detection modes commonly supported across the family include RMS, Peak, and Peak-to-Peak, with two onboard relay outputs (typically configured as Alert and Danger stages) supporting AND/OR/NOT voting logic between channels, and a -24V DC sensor supply for powering connected transducers directly from the module.

The specific SM-610-A01 variant’s individual data sheet was not available to confirm channel count or configuration for this exact order code at the time this page was written; the figures above describe the SM-610 module family as published by Brüel & Kjær Vibro generally. Seven Star LLC confirms the precise configuration, channel count, and firmware compatibility of the exact SM-610-A01 unit against the customer’s existing VC-6000 rack before confirming an order, rather than assuming every SM-610 variant is configured identically.

Technical Specifications

Parameter	Value
Manufacturer	Brüel & Kjær Vibro
Model	SM-610-A01
Product Type	Monitoring Module (signal processing and monitoring unit)
System Platform	VIBROCONTROL 6000 (VC-6000), rack-based
Inputs	Permanently installed sensors for vibration, speed and other machine condition parameters
Functions	High-speed data acquisition, alarm detection and relay control
Compatible Modules	PS-610 Power Supply Modules
Software	Compass 6000

Rack Architecture

A VC-6000 monitoring rack typically combines one or more SM-610 signal-processing modules with a PS-610 power supply module and a CI-620 (or similar) communication interface module, allowing the rack to both perform local protective relay logic and report continuous measurement data to a central visualization system such as Compass 6000. This modular architecture is the reason VC-6000 racks can be expanded channel-by-channel as new machines are added to a plant’s monitoring scope, without replacing the whole system.

Why Condition Monitoring Matters

Unplanned failure of large rotating machinery — turbines, compressors, generators, and critical pumps — carries a far higher cost than the monitoring hardware itself, both in direct repair cost and in lost production during an unplanned shutdown. A rack-based protection system like VC-6000, with modules such as the SM-610 continuously comparing live vibration and process data against configured alarm and trip thresholds, is designed to catch developing mechanical faults (bearing wear, imbalance, misalignment) early enough to schedule a planned repair instead of reacting to a sudden failure, which is why this class of equipment is a standard specification item on new turbomachinery trains and a common retrofit on older critical machinery across GCC power generation and oil & gas facilities.

Why Seven Star LLC

Seven Star LLC supplies genuine Brüel & Kjær Vibro VC-6000 modules, including the SM-610 series, to power generation, oil & gas, and petrochemical customers across Oman and the wider GCC, and works with the customer’s existing rack configuration to confirm exact module compatibility before an order is placed, ensuring a replacement or expansion module integrates correctly with the plant’s established protection and monitoring logic.

Also available: Bruel & Kjaer VIBROCONTROL 1000 CV110 Vibration Monitor

Request a Quote for Brüel & Kjær Vibro VC-6000 SM-610-A01 Monitoring Module

Request a quote or technical inquiry for the Brüel & Kjær VC-6000 SM-610-A01 Monitoring Module to verify compatibility with your existing machine condition monitoring setup and ensure comprehensive industrial protection.
