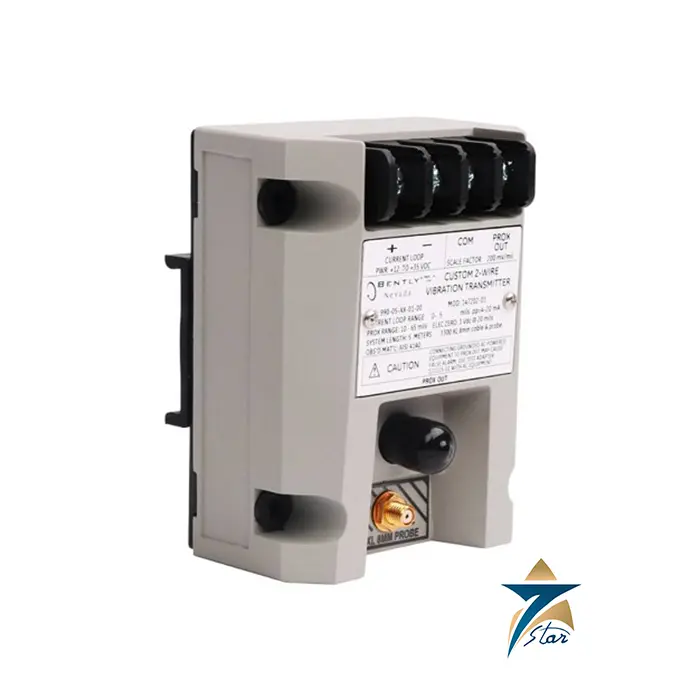

Bently Nevada 990-05-50-01-00 2-Wire Vibration Transmitter

Name: Bently Nevada 990-05-50-01-00 Vibration Transmitter – Datasheet
Brand: Bently Nevada

Description

Overview

The Bently Nevada 990-05-50-01-00 is a 990 Vibration Transmitter, a 2-wire, loop-powered device intended mainly for OEMs of centrifugal air compressors and small pumps, motors or fans that want a simple 4 to 20 mA vibration signal as the input to their machine control system. It accepts a 3300 NSv proximity probe and matching extension cable (ordered separately), conditions the signal into peak-to-peak vibration amplitude and outputs it as a proportional 4 to 20 mA signal.

In the 990-AA-BB-CC-DD order code, this unit is configured for a 0-5 mils pp (0-125 µm pp) full-scale range, a 5.0 m system length, 35 mm DIN-rail clip mounting and no agency approval. A transmitter provides overall vibration trending and alarming but not the diagnostic functions of a continuous monitoring system.

Key Features

Integrated Proximitor Sensor; no external signal conditioner required
Non-isolated PROX OUT terminals and coaxial connector for dynamic and gap signal diagnostics
Non-interacting zero and span adjustments and a Test Input pin
Not OK / signal defeat and power-up inhibit circuits
Potted construction for up to 100% condensing humidity

Technical Specifications

Parameter	Value
Part number	990-05-50-01-00
Full-scale option	05: 0-5 mils pp (0-125 µm pp)
System length option	50: 5.0 m
Mounting option	01: 35 mm DIN-rail clips
Agency approval option	00: not required
Input	One 3300 NSv proximity probe and extension cable
Power	+12 to +35 Vdc at transmitter terminals
Output	4 to 20 mA over full-scale range, 2-wire loop
Loop accuracy	±1.5% over full-scale range
Max. loop resistance	1,000 Ω including cable at 35 Vdc
Current limiting	23 mA typical
Not OK / signal defeat	Output <3.6 mA within 100 µs of Not OK
Probe gap	0.5 to 1.75 mm (20 to 55 mils) for full-scale range
Prox Out linear range	1.4 mm (55 mils), from approx. 0.25 mm
Prox Out scale factor	7.87 mV/µm (200 mV/mil) ±6.5% typical
Frequency response	5 Hz to 6,000 Hz, +0/-3 dB
Minimum target	9.5 mm diameter
Transmitter operating temperature	-35 °C to +85 °C
Transmitter weight	0.43 kg
Transmitter storage temperature	-52 to +100 °C
Power-up inhibit	Output held below 3.6 mA for 2 to 3 s after power is applied
Recovery after Not OK	Output restored 2 to 3 s after the fault clears
Prox Out output impedance	10 kΩ, calibrated for a 10 MΩ load
Scale factor temperature stability	Within ±10 % of 7.87 mV/µm from 0 to +70 °C
Maximum Prox Out (BNC) lead length	3 m
Maximum loop cable length	13 km with 1.0 mm² (18 AWG) shielded twisted pair
Maximum loop resistance versus supply	43.5 × (supply voltage – 12) Ω
Probe temperature range	-52 to +177 °C operating and storage
Probe-to-lead tensile strength	222 N maximum
Total system weight	0.82 kg typical

Applications

Radial vibration trending and alarming on packaged centrifugal air compressors
Small pumps, motors, fans and blowers on skids where a PLC or DCS reads a 4 to 20 mA vibration value
Balance-of-plant rotating equipment in water, power and oil & gas facilities

Bently Nevada 990-05-50-01-00 Installation and Wiring Notes

The loop is wired with two conductors; the manufacturer recommends shielded twisted pair of 1.0 mm² (18 AWG) and allows up to 13 km between transmitter and receiver. The transmitter needs at least 12 Vdc at its own terminals, so the usable loop resistance depends on the supply: the datasheet gives 43.5 × (supply voltage – 12) ohms, which reaches 1,000 ohms at 35 Vdc. If this limit is exceeded the output cannot reach 20 mA at full scale.

After power-up the output stays below 3.6 mA for two to three seconds, and the same delay applies when a probe fault clears. Control-system logic should allow for this so that the start-up state is not read as a fault or as zero vibration.

The PROX OUT signal is not isolated from the loop and its phase is inverted compared with a standard Bently Nevada Proximitor. Battery-powered or isolated instruments can be connected directly, with a lead no longer than 3 m. Grounded mains-powered analysers can cause a false alarm and should be connected through the 990/991 Test Adapter 122115-01.

Bently Nevada 990-05-50-01-00 Ordering Code and Options

In 990-AA-BB-CC-DD, AA is the full-scale range of the 4 to 20 mA output: 04, 05, 08 or 10 for 0-4, 0-5, 0-8 or 0-10 mils peak-to-peak (100, 125, 200 or 250 µm). BB is the system length the transmitter is matched to, 50 for 5.0 m or 70 for 7.0 m of probe plus extension cable. CC is the mounting: 01 for 35 mm DIN-rail clips, 02 for bulkhead screws, 03 for both. DD is the agency approval: 00 none, 01 CSA Division 2, and 05 CSA Division 2 with ATEX Zone 0 and Zone 2 plus ABS maritime approval.

This part is therefore a 0-5 mil, 5.0 m, DIN-rail unit without hazardous-area approval. For a 5.0 m system the listed 3300 NSv extension cables are 330930-040 (4.0 m) and 330930-045 (4.5 m).
