Elster GasLab Q2 Real-Time Natural Gas Quality Analyzer
Description
Natural gas quality analyzer without carrier gas or combustion air

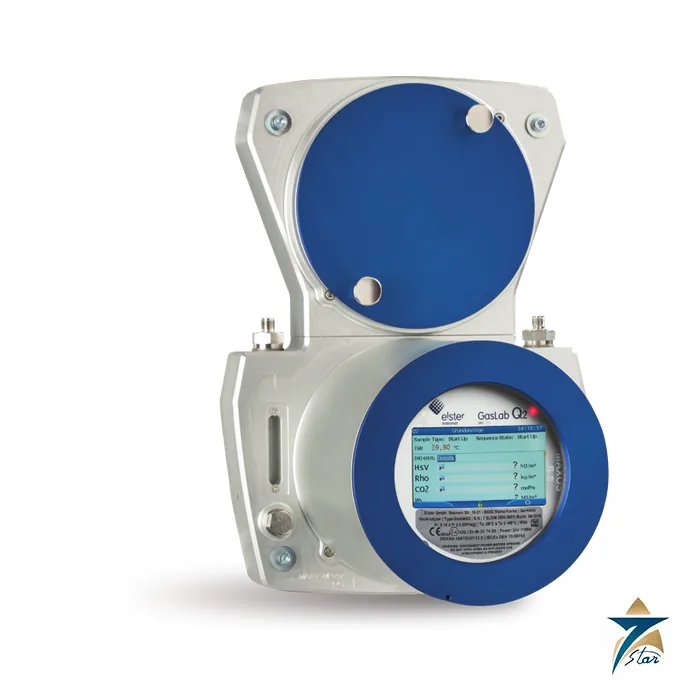

The Elster GasLab Q2 is a real-time natural gas analyzer that determines calorific value, Wobbe index and other parameters in natural gas. Unlike a classic gas chromatograph it needs no carrier gas, no mixed calibration gases and no combustion air; it works only with passive infrared absorption and thermal conductivity measurements of the sample gas and is flameless. Routine calibration is automatic, at a time and day the user programs, and needs only purified methane.
Honeywell names five application areas: fiscal metering, gas turbine control for power plants, burner control, biogas and gas blending. In power plants the continuous signal lets the turbine control follow fluctuating gas quality, and in blending stations it helps hold the gas specification.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Elster (Honeywell) |
| Measuring principle | Correlative: infrared absorption and thermal conductivity of the sample gas |
| Update rate | Calculations refreshed every second; t90 of 10 s or less |
| Gross calorific value Hs | 800 to 1300 BTU/scf |
| Standard density | 0.04370 to 0.06867 lb/scf |
| Wobbe index | 7 to 72 psi (as printed; calculated per ISO 6976, ASTM 3588, GPA 2172) |
| CO2 concentration | 0 to 25 mol% |
| Other outputs | Dry, wet and saturated CV; inferior CV and Wobbe; methane number; C2+ sum; calculated model gas composition CH4 to C8H18 and N2 |
| Measurement uncertainty | Hs, Ws and density 0.5% or less; CO2 0.2 mol% or less |
| Repeatability | Hs, Ws and density 0.1% or less; CO2 0.1 mol% or less |
| Gas range | Methane 70 to 100 mol%, C2+ 0 to 20 mol%, CO2 0 to 25 mol%, N2 0 to 30 mol%; O2, H2 and water 0.1 mol% or less; dust and liquids technically free |
| Calibration gas | Methane, purity 3.5 or better, automatic cycle |
| Sample inlet pressure | 7 to 72 psi; 0.7 to 11 scft/h including adjustable bypass |
| Gas manifold | Integrated 2-channel double-block and bleed for process and calibration gas |
| Power supply | 24 VDC +/-10%, max 40 W (above 32 F), max 80 W (down to -13 F) |
| Environment | IP64, -13 to +131 F, 0 to 95% RH non-condensing |
| Interfaces | 1x TCP/IP, 2x RS485, 4 digital outputs, 2 digital inputs, 4 analog outputs; Modbus over TCP/IP and serial |
| Operation | 7-channel capacitive touch panel, internal web page, enSuite PC software |
| Data logger | Mean or current values, system status and external events |
| Approvals | Zone 1 Ex II 2G Ex d IIC T4 Gb and Class I Div 2 Groups ABCD T4 (marked pending in the datasheet); NMi OIML R140 Class A |
Where the analyzer is installed
The GasLab Q2 is designed for hazardous areas and wide ambient temperatures, so it can be placed close to the sample tap. A bypass flow meter is integrated into the housing to keep gas transport delay between the sample point and the analyzer short, which supports the fast response needed for turbine control. The housing has connections for sample gas, calibration gas, sensor vent and an optional bypass outlet, and the power and I/O wiring is reached from the top housing. Measured values leave as Modbus data or analog outputs, and contact inputs can monitor, for example, the low-pressure limit of the calibration bottle or the status of the sampling system.
Selecting and specifying the analyzer
The correlative method works within the gas ranges listed above, so confirm that your gas stays inside them, in particular methane share, C2+ content, CO2, nitrogen and the trace limits for oxygen, hydrogen and water. Hydrogen sulphide is limited separately in the datasheet, so ask for the current limit if sour gas is possible. Plan the sample line, sample conditioning and the methane calibration bottle, and decide whether energy values must be reported to a flow computer over Modbus.
Documents and quotation
State the application, gas composition range, sample pressure, area classification and the output signals required. The datasheet copy is dated June 2016, so ask for the current approval status before ordering.
The attached Honeywell datasheet lists the measured quantities, ranges, interfaces and approvals. Seven Star LLC, an independent supplier in Muscat, quotes the analyzer against the duty above. See Gas Analyzer Systems for related gas analysis equipment.
