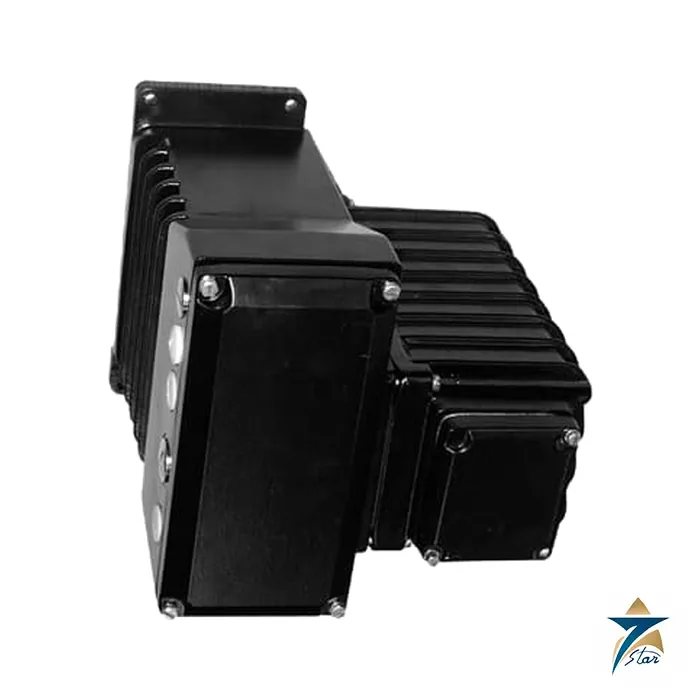

ABB Electronic unit EAN823

Overview

The ABB EAN823 Electronic Unit is a microprocessor-controlled actuator electronics module for ABB’s Contrac range of electric actuators, purpose-built for continuous, modulating positioning duty rather than simple open/close operation. Fitted with an integrated frequency converter, the EAN823 varies motor torque steplessly during continuous positioning until the actuator’s driving force and the restoring process forces are balanced – a control approach that delivers high positioning accuracy while extending actuator service life compared to conventional start/stop motor control.

With engineering support in Muscat, Seven Star LLC supplies the EAN823 Electronic Unit to power generation, oil & gas, and process industry operators across the Sultanate of Oman and the wider Gulf region. Every unit is supplied on request with manufacturer documentation, regional technical support, and access to original ABB spare parts – with lead time and availability confirmed at quotation.

Operating Principle

Unlike a fixed-speed actuator controller that simply drives the motor to an end position, the EAN823’s integrated frequency converter allows continuous, proportional positioning: the electronic unit constantly adjusts motor torque and speed so the actuator tracks a moving process setpoint smoothly rather than hunting between on and off states. This stepless torque variation is what makes the EAN823 suitable for true modulating control duty – applications such as control valves and dampers that must track a 4–20 mA process signal continuously, not just move between two fixed positions.

The unit accepts conventional analog control signals (0/4 to 20 mA or 24 V) alongside full digital communication over HART or PROFIBUS DP, so the same electronic unit can serve either a conventional 4–20 mA control loop or a fully digital fieldbus architecture depending on how the plant control system is designed. Programmable characteristics let commissioning engineers tune positioning response, dead-band, and travel limits to match the specific valve or damper the actuator is driving, rather than accepting a one-size-fits-all factory default.

Engineering Design of the ABB EAN823

The EAN823 is housed in an IP66-rated enclosure, giving it the environmental protection needed for field-mounted installation directly on the actuator in outdoor or washdown-prone plant areas typical of Gulf-region oil & gas and power facilities. Because it is field-installable, the unit can be fitted to compatible Contrac actuators either at initial commissioning or as a retrofit upgrade when an existing actuator needs to move from simple on/off duty to full modulating control.

Built-in maintenance computer functionality gives plant technicians diagnostic visibility into actuator condition and operating history without needing separate monitoring hardware, while process controller integration allows the unit to participate directly in a control loop rather than acting only as a dumb positioner. HART and PROFIBUS DP support is backed by ABB’s own DTM400 bundle and EDD/GSD software packages, keeping configuration and commissioning consistent with the rest of an ABB-instrumented plant.

Key Features

The EAN823 combines precise modulating control with field-hardened construction, including:

• Integrated frequency converter for stepless, continuous positioning of Contrac electric actuators.
• Torque variation and speed adjustment that balances actuator force against process restoring forces for high positioning accuracy.
• Conventional analog signal support (0/4–20 mA, 24 V) alongside HART and PROFIBUS DP digital communication.
• Programmable operating characteristics for application-specific tuning during commissioning.
• Built-in maintenance computer functionality for on-board diagnostics and condition monitoring.
• Direct process controller integration, allowing the unit to operate within a closed control loop.
• IP66-rated housing for reliable field installation in demanding industrial environments.
• ABB DTM400, EDD, and GSD software support for consistent configuration across HART and PROFIBUS plant architectures.

Industrial Applications

Modulating actuator control is essential wherever a valve or damper must track a continuously varying process signal rather than simply opening or closing, and this is a common requirement across Oman and the GCC’s power generation, oil & gas, and petrochemical facilities. In combined-cycle power plants, the EAN823 is used on Contrac actuators controlling steam bypass and feedwater control valves, where precise, continuous positioning directly affects plant efficiency and stability. In oil & gas processing and petrochemical plants, the same continuous positioning capability supports control valves regulating flow, pressure, and temperature across process trains where on/off actuation would be inadequate.

Backed by genuine manufacturer documentation, Seven Star LLC distributes the EAN823 Electronic Unit to power utilities, oil & gas operators, and process industry EPC contractors across Muscat, Sohar, and Salalah, as well as the wider Gulf region. Because the unit is field-installable and supports both analog and digital communication, it fits equally well into a greenfield actuator specification or as an upgrade retrofit converting an existing on/off Contrac actuator to full modulating duty.

Technical Specifications

Key technical specifications for the ABB EAN823 Electronic Unit are summarized below.

Request a Quote for ABB Electronic unit EAN823

Seven Star LLC welcomes formal RFQs for the ABB EAN823 Electronic Unit from power generation utilities, oil & gas operators, and process industry EPC contractors across Oman and the GCC. Working closely with plant engineers in the region, we supply on request with lead time confirmed at quotation, provide the full technical datasheet on request, and can connect your team directly with our instrumentation division for application sizing and technical support. Contact Seven Star LLC today to request a formal quotation or technical consultation for your modulating actuator control requirements.
