3M Speedglas 9100 Auto-Darkening Welding Helmet

Overview

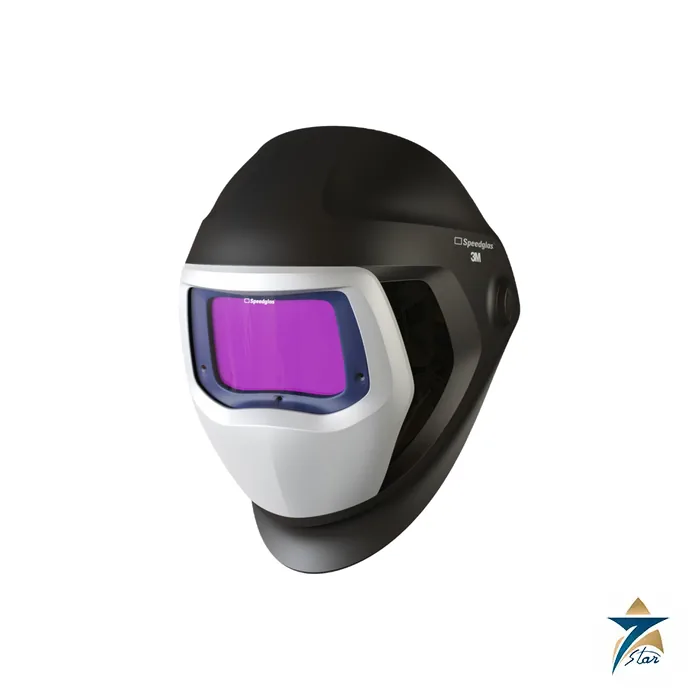

The 3M Speedglas 9100 is one of the most widely used professional auto-darkening welding helmets in heavy fabrication, pipeline and shipyard work. It combines a lightweight shell with SideWindows for peripheral vision, an exhaust vent to reduce heat, humidity and fogging, a multi-adjustable headband, and a choice of four Speedglas 9100 auto-darkening filters with different viewing areas and features. The 3M Speedglas 9100 offers a light state of shade 3, dark shades 5 and 8 to 13, seven selectable sensitivity levels and permanent shade 13 UV/IR protection, covering most arc welding processes in a single helmet.

Seven Star LLC supplies the 3M Speedglas 9100 helmet, its filters and the full range of spare parts to welding contractors, fabrication yards, oil and gas maintenance teams and training centres across the Sultanate of Oman and the GCC. We provide the 3M technical specification, help choose the filter and accessories, and offer engineering support from Muscat.

Working Principle

An auto-darkening filter uses liquid crystal cells between polarisers, powered by batteries with solar assistance. In the light state the welder can see the joint through shade 3 while positioning the torch or electrode. When arc sensors detect the flash, the 3M Speedglas 9100 filter switches to the selected dark shade in 0.1 ms at room temperature. Seven user-selectable sensitivity levels help ensure reliable detection on low-current TIG arcs as well as bright MIG arcs, and the filter can be locked in a constant dark or light state for grinding or special jobs.

Protection does not rely on the electronics alone. The specification states that the filter gives permanent UV and IR protection equivalent to shade 13 in both light and dark states and even if the auto-darkening function is not operating, and that the fail-safe state is shade 5. As a general note from 3M, flashing light sources such as strobe lights can trigger auto-darkening filters, so welding areas should be shielded from them; and the helmet is secondary eye protection, to be worn with ANSI approved safety spectacles.

Engineering Design of the 3M Speedglas 9100

The shell is moulded from PPA with a PA silver front frame and PC SideWindows. The shield with SideWindows weighs about 265 g and the headband about 120 g; the 9100V filter adds 150 g, the 9100X 160 g and the 9100XX 185 g. Viewing areas are 45 × 93 mm (9100V), 54 × 107 mm (9100X) and 73 × 107 mm (9100XX and 9100XXi). Filters run on two CR2032 3 V lithium batteries with battery life from 1800 hours (9100XXi) to 2800 hours (9100V), with solar panel assistance except on the 9100XX and 9100XXi.

The headband fits head sizes from 50 to 64 cm with multiple adjustments, and operating temperature is -5 to +55°C. Accessories include outside and inside protection plates, magnification plates from 15× to 30×, crown and ear-neck extended coverage, a hard hat adapter for use with H-701 hard hats, sweatbands and a full hood. The 9100 Air version is designed to connect to 3M Adflo powered air purifying respirators or Fresh-air III supplied air systems. The 3M Speedglas 9100 meets ANSI Z87.1, ANSI Z89.1 when used with a hard hat, and CSA Z94.3.

Key Features

The 3M technical specification highlights these features of the 3M Speedglas 9100.

• Light state shade 3 and dark state shades 5 and 8 to 13 for most welding applications.
• Switching time of 0.1 ms with seven user-selectable detector sensitivity levels.
• Permanent shade 13 UV/IR protection regardless of filter state.
• SideWindows that improve peripheral vision and situational awareness.
• Exhaust vent to help reduce heat, humidity and fogging inside the helmet.
• Compatible with 9100V, 9100X, 9100XX and 9100XXi filters.
• Multiple helmet and headband adjustments for long shifts.
• Can be worn with many reusable and maintenance-free welding respirators.

Industrial Applications

With recommended filters, 3M lists MMA, MIG/MAG, TIG, plasma welding, oxyacetylene welding and cutting, and grinding. In Oman the 3M Speedglas 9100 is used on pipeline spreads, in pressure vessel and structural fabrication shops, in shutdown and turnaround crews at refineries and petrochemical plants, and in vocational welding schools. The wide view of the 9100XX filter is popular for out-of-position pipe welding, while the 9100V suits general fabrication and budget-sensitive crews. 3M cautions that the helmet is not for laser welding or cutting and that heavy-duty overhead welding with falling molten metal can cause burns.

Seven Star LLC supplies the 3M Speedglas 9100 together with the welding equipment it protects, such as the Miller Maxstar 210 STR stick and TIG inverter, and with consumable care equipment like the Gedik GKF-50 electrode drying oven. Buyers comparing helmet options can also review the Optrel panoramaxx 2.5 auto-darkening helmet, and our Muscat team can advise which suits a given process and crew.

As general guidance for hot climates, welders in Gulf summer conditions benefit from good helmet ventilation, regular replacement of sweatbands and protection plates, and keeping spare batteries and plates in the site store so a scratched or spattered plate never forces a welder to work with poor visibility. Where welding fume exposure is significant, employers should assess whether a powered air version or a suitable respirator is needed under their own occupational health programme.

Technical Specifications

The 3M Speedglas 9100 values below are from the 3M technical specification, Release 1, January 2018.

How to Order

To order the 3M Speedglas 9100, filters or spare parts for a welding crew or fabrication shop in Oman or the GCC, send Seven Star LLC the part numbers and quantities for a formal quotation. We will share the 3M Speedglas 9100 technical specification, help match filters and consumables, and arrange engineering support from our Muscat office.
