Gullco Battery MOGGY GM-05-100 Carriage

Name: Gullco Battery MOGGY GM-05-100 Carriage – Datasheet & Quote
Brand: Gullco
SKU: GM-05-100

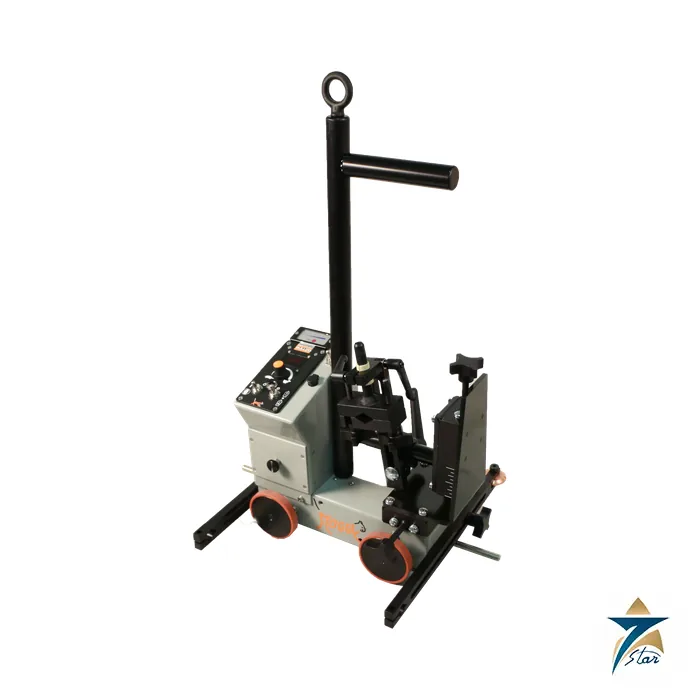

The Gullco Battery MOGGY GM-05-100 is a battery-powered version of the MOGGY trackless welding carriage. A 28.8 V lithium-ion pack replaces the mains supply cable, so there is one less cable on the deck and the carriage works where a supply of 50 V or less is mandatory for safety. It automates horizontal fillet, lap and butt welds in continuous or stitch mode.

Cable-free carriage for low-voltage sites

Shipyards, tanks and confined spaces often restrict mains-voltage equipment near the work. Running from a 28.8 V battery keeps the GM-05-100 within those limits. Gullco quotes about nine hours of battery life in standard welding, based on 14 in/min travel, and a full charge from empty in 1 h 30 min through a plug on the carriage. The pack is protected against debris and against overcharge, over-discharge, short circuit and over-temperature, and a battery gauge is visible during operation.

Guidance and control match the standard MOGGY: adjustable guide wheels or 6 in V-groove track, microprocessor stitch control with weld-on and weld-off distances, forward/stop/reverse, speed potentiometer, automatic wire feed start with delayed carriage start, a step-back function, and a 15 ft wire feed control cable.

Technical specifications

Parameter	Specification
Manufacturer / model	Gullco / Battery MOGGY GM-05-100 standard carriage
Speed range	3.25–100.50 in/min (8.26–255.27 cm/min)
Maximum incline	30°
Gun positioning slides	1-3/4 in (44.5 mm) vertical and horizontal stroke
Weight	31 lb (14.1 kg) with all attachments, single-gun model
Drive motor	24 VDC permanent magnet gear motor
Battery	LG 28.8 V 3000 mAh Li-ion pack, 396 g
Battery life	About 9 h (at 14 in/min travel)
Charge time	1 h 30 min from 0%
Charge cycles	500 full charges
Battery protection	8S 4A PCM: overcharge, over-discharge, over-drain, short circuit, over-temperature
Battery working temperature	-20 to 75 °C (-4 to 167 °F)
Shipping	UN38.3 air shipment certified
Compliance	CE

Battery MOGGY family

Gullco offers four battery models: GM-05-100 standard carriage, GM-05-200 dual torch carriage, GM-05-300 magnetic base and GM-05-400 dual torch magnetic base. Accessories include the GK-194-O-330 radial oscillator, GM-03-059 adjustable guide roller, GM-01-065 cutting torch holder and GM-05-070 dual gun holder.

For multi-shift work, plan charging around the run time: one carriage with a charged pack covers most of a shift at moderate speeds, and higher travel speeds shorten the time between charges. The wire feeder and welding power source still need their own supplies; only the carriage drive is battery powered.

Documents and quotation

The Gullco Battery MOGGY brochure is attached. For mains-powered carriages and oscillators see Welding Robots & Automation.

For a quotation, state joint type, typical weld length and travel speed, the model (standard, dual torch or magnetic), and any spare batteries or accessories.
