Gullco KAT 100 GK-100-W Welding Automation Carriage

Entry-level rigid-track carriage for mechanised welding and cutting

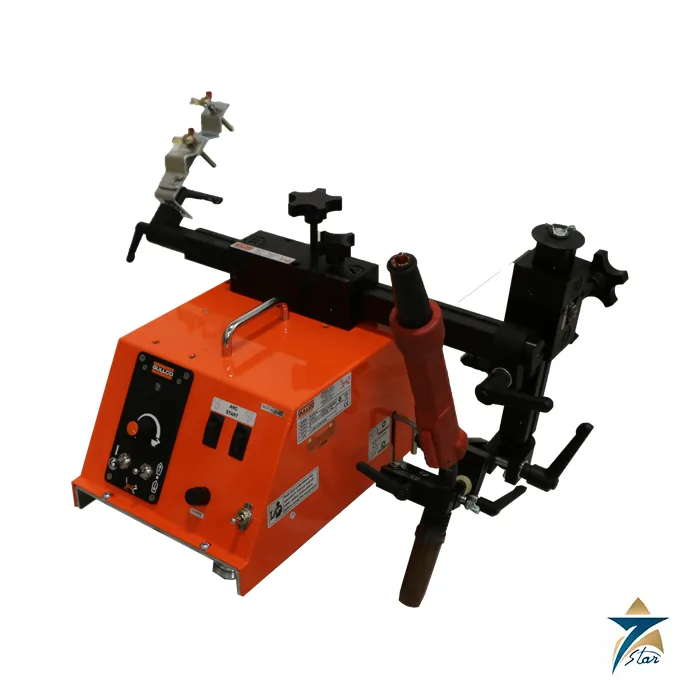

The Gullco KAT 100 GK-100-W is the welding version of the KAT 100 series, the simplest carriage in Gullco’s KAT mechanised automation range. It travels on rigid KAT track and carries a MIG/MAG gun or other welding torch along the joint at a set speed, giving a more consistent travel speed and torch angle than manual welding. Gullco positions the KAT 100 as an entry-level carriage with simple setup and minimal control complexity that can be integrated quickly into welding and cutting applications.

The carriage is driven by a low-voltage 24 VDC permanent magnet gear motor that engages the track through spur gears. A clutch lever lets the carriage free-wheel for rapid positioning, and the low-voltage control with switch mode power supply improves operator safety. The GK-100-W has two auxiliary ports for use with the arc start cable accessory, so the welding torch and carriage travel start together.

Technical specifications

Carriage and accessories are sold separately.

GSP-1100 control functions

The GSP-1100 control applies regenerative braking to the motor when switched to STOP, overriding all other controls and bringing the carriage to a dead stop for precise control of the weld or cut end point. Tach feedback continuously monitors and corrects motor speed, so travel speed stays constant regardless of load variation. The control provides forward, neutral and reverse travel, variable speed within the full range, and an LED that shows when the carriage is powered and ready.

Accessories and typical set-ups

Gullco lists these accessories for the KAT 100: GK-165-068 cutting torch holder for 1 3/8 in (35 mm) torches with 32 pitch rack, GK-010-031-TV on/off gas toggle valve for acetylene torches, GK-171-047-2 rack arm 18 in (457.2 mm), GK-171-650 heavy-duty rack box 10 in (254 mm), rigid track in 48, 96 and 120 in (1219, 2438 and 3048 mm) lengths, GK-165-215 on/off magnet assemblies with 150 lb (45 kg) holding power each, GK-165-074-2 four-motion semi-automatic torch holder with 5 in (127 mm) vertical adjustment, and the GK-184-200 circle cutting accessory with a 36 in radius arm.

Typical uses are long horizontal and vertical fillet or butt welds on plate, stiffeners, tanks and beams, where the track is mounted with magnets. Where weave or oscillation is needed, the Gullco KAT 300 GK-R-300 with radial oscillation is the larger alternative.

Documents and quotation

The attached Gullco KAT 100 series brochure contains the specifications, control description and accessory list. For a quotation, state the welding or cutting version, track length, mounting method, torch type and arc start integration required. Related equipment is listed under welding robots and automation.
