Gullco KAT GK-200-RMC-A Auto-Weld Carriage

Name: Gullco KAT GK-200-RMC-A Auto-Weld Carriage – Datasheet
Brand: Gullco
SKU: GK-200-RMC-A

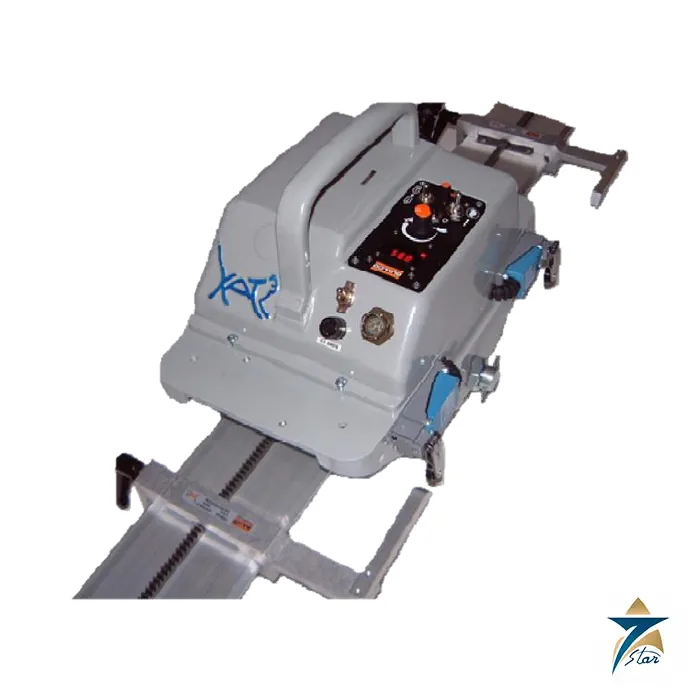

The Gullco KAT GK-200-RMC-A is a KAT travel carriage with the Auto-Weld control, configured for rigid KAT track, the medium speed range and a 230 VAC supply. Auto-Weld turns the carriage into a programmable welding cycle: it measures distance travelled, responds to limit switches on the carriage and to activators fixed on the track, and synchronises travel with weld start and stop.

Programmable stitch and seam cycles on KAT track

By combining control settings with the positions of the limit switch activators, the same carriage can run many repeatable cycles in any plane: a single seam with automatic return home, back-and-forth seams, or electronically programmed stitch welds. Three limit switches on the carriage handle forward, reverse and centre (weld start positioning and weld on/off). Adjustable park and end activators mount on rigid or flexible KAT track; the centre activator is supplied by the user.

The carriage has heavy-duty self-aligning wheels and closed-loop tachometer feedback, so speed holds in any position up to its 100 lb (45 kg) load. The 24 V GSP microprocessor control has a forward/stop/reverse switch, four-turn speed potentiometer, LED display in in/min or cm/min, and a ten-position rotary switch for the settings.

Technical specifications

Parameter	Specification
Manufacturer / model	Gullco / KAT Auto-Weld GK-200-RMC-A
Track	KAT rigid track
Speed range (M)	1–32.7 in/min (2.5–83.1 cm/min)
Supply	230 VAC, single phase, 50/60 Hz
Maximum load	100 lb (45 kg)
Travel start delay	0–9.9 s after arc start signal
Crater fill delay	0–9.9 s
Post-weld delay	0–9.9 s (burnback or postflow)
Stitch and travel distance	0.1–99.9 in or cm
Weld direction	Forward, reverse, or forward and reverse
Other functions	Automatic return home, continual forward/reverse, weld step-back

Speed and voltage codes

The Auto-Weld code is GK-200-, then R (rigid) or F (flexible track), the speed letter, the voltage letter (A 42 V, B 115 V, C 230 V) and -A. Speed ranges from the brochure:

Speed letter	Rigid track (GK-200-R?-A)	Flex track (GK-200-F?-A)
L	0.5–16.4 in/min (1.2–41.6 cm/min)	0.8–25.8 in/min (2–65.4 cm/min)
M	1–32.7 in/min (2.5–83.1 cm/min)	1.5–51.5 in/min (3.9–131 cm/min)
H	2.7–88.4 in/min (6.7–224 cm/min)	4.2–139.1 in/min (10.6–353 cm/min)

An optional remote pendant control kit moves the GSP control to a pendant on an 8 ft cable. For weave beads, Gullco offers KAT carriages with oscillation, such as the Gullco GK-R-300.

Auto-Weld is useful wherever the same weld length and gap repeat many times, such as stiffener stitch welding, tank seams and long beams. The repeatability comes from distance measurement rather than operator timing.

Documents and quotation

The Gullco KAT Auto-Weld brochure is attached. More carriages are in Welding Robots & Automation.

For a quotation, give track type and length, required speed range, supply voltage, the welding cycle you need and whether the remote pendant kit is wanted.
