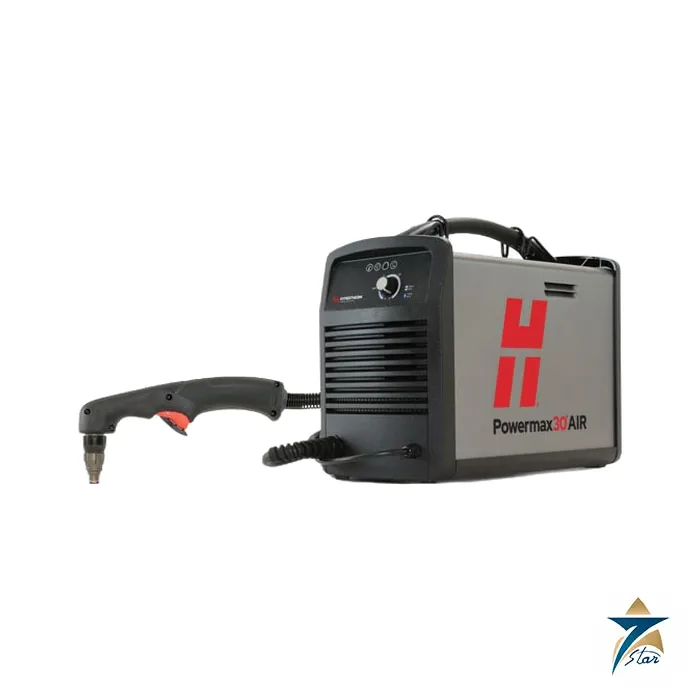

Hypertherm Powermax30 AIR Portable Plasma Cutter

Name: Hypertherm Powermax30 AIR Plasma Cutter – Brochure & Quote
Brand: Hypertherm
SKU: Powermax30 AIR

Description

Handheld plasma cutter with its own air compressor

The Powermax30 AIR is Hypertherm’s smallest handheld plasma system in the Powermax family and the one that carries its own air supply. A built-in compressor means it can cut metal in places where shop air is unavailable or the air quality is poor, with nothing more than a single-phase supply. Hypertherm rates it at 8 mm (5/16 in) recommended cut capacity and 16 mm (5/8 in) severance, using a 30 A output at 83 V (2.49 kW at the torch).

The unit weighs 9.5 kg with its 4.5 m Duramax LT hand torch, so one person can carry it to a vehicle, a roof or a field site. Auto-Voltage technology accepts 120 to 240 V single-phase, with plug adapters included, and a continuous pilot arc lets the operator cut grate or rusted metal without retriggering.

Technical specifications

Parameter	Specification
Manufacturer / model	Hypertherm / Powermax30 AIR
Process	Air plasma, handheld cutting with built-in air compressor
Recommended cut capacity	8 mm (5/16 in) at 500 mm/min (20 ipm)
Cut rating at 10 mm	10 mm (3/8 in) at 250 mm/min (10 ipm)
Severance capacity	16 mm (5/8 in) at 125 mm/min (5 ipm)
Output current	15 – 30 A
Rated output voltage / torch output	83 VDC / 2.49 kW (30 A x 83 V)
Input voltage	120 – 240 V, 1-phase, 50/60 Hz (+/-10%)
Input current at 2.5 kW	29 A at 120 V to 15 A at 240 V
Duty cycle at 40 °C	35% at 240 V; 20% at 120 V
Open circuit voltage	256 VDC
Gas	Air from the internal compressor
Weight with 4.5 m torch	9.5 kg (21.4 lb)
Dimensions with handles	420 mm D x 195 mm W x 333 mm H
Input power cable	3 m (10 ft)
Engine drive requirement	5.5 kW for full 30 A output
Electrical efficiency / design	86%; inverter IGBT power supply
Warranty	Power supply 6 years, torch 1 year
Power supply part numbers	088096 (CSA), 088098 (CE), 088103 (CCC)

Where it fits and how to configure it

The Powermax30 AIR suits automotive repair, metal art and signage, plant and property maintenance, HVAC and mechanical contracting, training workshops and agricultural equipment maintenance. It covers thin and medium plate in one machine: standard consumables for general cutting at higher power, and FineCut consumables for cleaner cuts on thin sheet.

Hypertherm lists three regional power supply versions, 088096 for CSA markets, 088098 for CE markets and 088103 for CCC, each as a complete system with Duramax LT hand torch with 4.5 m lead and work clamp with 4.5 m lead. The standard consumable set for the 30 A hand torch is shield 420399, retaining cap 420135, nozzle 420134, swirl ring 420133 and electrode 420132; electrodes and nozzles are packed in fives, and a combination pack of two electrodes and two nozzles is 428350.

Two practical points apply to any plasma on a generator or at height. The brochure calls for a 5.5 kW engine drive for full 30 A output. The operator manual notes that cutting performance can fall at altitude because of the effect on air compressors, so cut speed should be adjusted to the result on the plate. Recommended genuine accessories include a face shield, flip-up eyeshades with a shade 5 lens, circle cutting guides for circles up to 70 cm, and a dust cover.

Documents and quotation

The attached Hypertherm Powermax30 AIR brochure (860620EN-EU, revision 5) contains the ratings, ordering part numbers and consumable list. Related systems are listed under Plasma Cutting Systems, including the Powermax30 XP.

For a quotation, state the supply voltage and the regional version needed, plus any consumables, face shield or circle guide required with the system.
