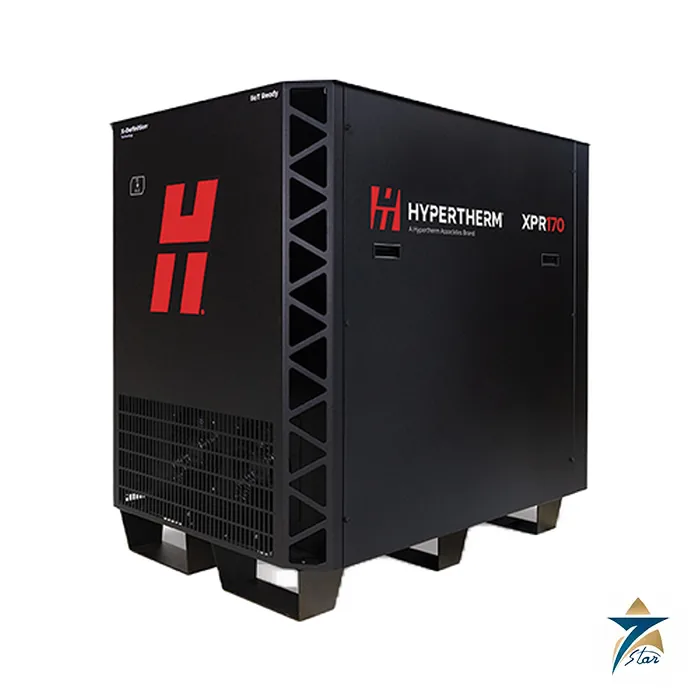

Hypertherm XPR170 X-Definition Plasma Cutting System

Name: Hypertherm XPR170 Mechanized Plasma System – Brochure
Brand: Hypertherm
SKU: XPR170

Description

X-Definition cut quality from thin sheet to mid-range plate

The Hypertherm XPR170 is a 170 A mechanized plasma system for CNC cutting tables. It uses Hypertherm’s X-Definition processes to cut mild steel, stainless steel and aluminium with low angularity and minimal dross, delivering consistent ISO range 2 results on thin mild steel and extended range 3 on thicker mild steel and stainless. Production piercing reaches 35 mm in mild steel, and the system severs up to 60 mm.

Ramp-down error protection, automatic monitoring with specific fault codes, the EasyConnect torch lead and the QuickLock electrode reduce consumable damage and changeover time. Manual Set-Mode allows gouging or off-table bevelling without CNC integration.

Technical specifications

Parameter	Specification
Manufacturer / model	Hypertherm / XPR170
Mild steel	Production pierce 35 mm (air shield); argon-assist pierce 40 mm; severance 60 mm
Stainless steel	Pierce 22 mm; severance 38 mm
Aluminium	Pierce 25 mm; severance 38 mm
Maximum output current	170 A
Maximum output power	35.7 kW
Output voltage	50 – 210 VDC; 100% duty arc voltage 210 V
Maximum open-circuit voltage	360 VDC
Duty cycle	100% at 35.7 kW, 40 °C
Power factor	0.98 at 35.7 kW
Ambient temperature	-10 °C to 40 °C
Cooling / insulation	Forced air (Class F) / Class H
Enclosure	IP21; EMC Class A (CE models)
Power supply dimensions	H 124.8 cm x L 123.8 cm x W 84.2 cm
Lift points	Top lift eye rated 680 kg; bottom lift-truck slots
Typical cut speeds (mild steel, O2/air)	12 mm at 1405 mm/min (80 A); 25 mm at 1175 mm/min (170 A); 60 mm at 152 mm/min (170 A)

Choosing the gas console

Four gas connect consoles are offered. The Core console handles mild steel and the basic stainless and aluminium processes with oxygen, air and nitrogen. CorePlus adds an argon supply used for better marking and argon-assist piercing. The Vented Water Injection console adds nitrogen-plasma with water shield processes that give clean edges on stainless and aluminium up to 38 mm, and OptiMix adds H2-Ar-N2 mixed-gas cutting. All consoles are controlled from the CNC, so cut charts are selected by material and thickness rather than set by hand.

The XPR170 suits fabricators whose work is mostly below 25 mm and who need sharp hole quality and bevel-ready edges. Shops that regularly cut thicker plate should compare the XPR300 and XPR460, which use the same family of gas consoles. As an example of the stainless steel range, the brochure lists 20 mm cut at about 978 mm/min with nitrogen plasma and water shield at 170 A on the VWI and OptiMix consoles, and 38 mm at 434 mm/min.

The power supply is lifted by its top eye or by fork truck through the base slots, and needs clearance for forced-air cooling. Before installation, confirm the supply voltage and the rating of the incoming breaker with Hypertherm for the chosen model, plan the routing of torch leads and gas hoses between power supply, gas console and torch, and provide fume extraction suitable for the materials being cut.

Documents and quotation

The Hypertherm XPR170 brochure is attached under the documents tab. Compare it with the Hypertherm XPR300 or browse Plasma Cutting Systems.

For a quotation, state the gas console, supply voltage, torch lead lengths and the CNC or table interface.
