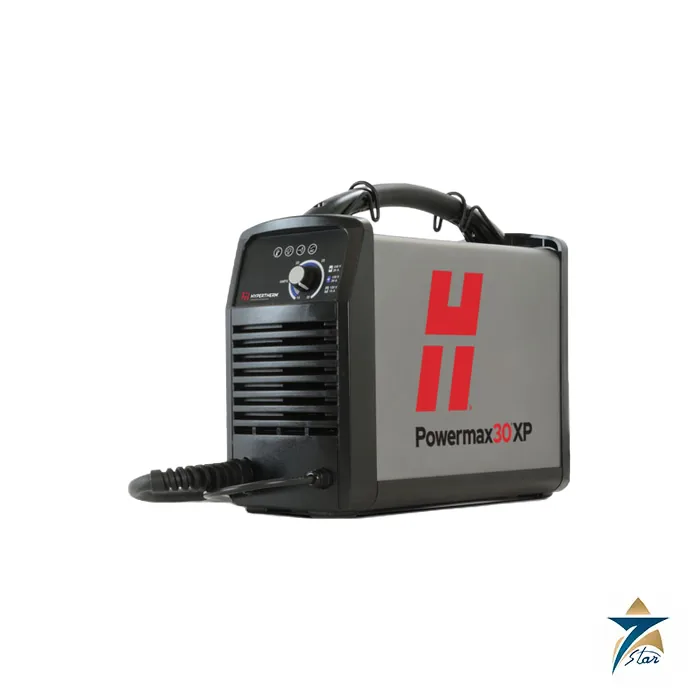

Hypertherm Powermax30 XP Portable Plasma Cutter

Overview

The Hypertherm Powermax30 XP is a compact, single-phase air plasma cutter for technicians who need to carry a cutting tool to the job rather than bring the job to a workshop. The complete unit with a 4.5 m torch weighs only 9.5 kg, yet Hypertherm rates it for a recommended cut of 10 mm (3/8 in) at 500 mm/min, 12 mm (1/2 in) at 250 mm/min and a severance cut of 16 mm (5/8 in). Its two-in-one design combines high-power capability for thicker metal with FineCut consumables for detailed cutting of thin sheet.

Seven Star LLC supplies the Hypertherm Powermax30 XP to maintenance departments, HVAC and mechanical contractors, instrument and electrical workshops and training centres in Oman and the GCC. With engineering support in Muscat, we can supply the unit together with spare consumables and help choose plug arrangements suitable for local site supply.

How the Powermax30 XP Cuts

In general, an air plasma cutter ionises compressed air in a constricted arc to create a jet hot enough to melt metal, while the gas flow removes the molten material from the kerf. The Hypertherm Powermax30 XP uses an IGBT inverter to provide 15 to 30 A of output at a rated 125 VDC, which Hypertherm expresses as 3.75 kW of torch output. The manufacturer notes that the higher output voltage at the torch together with efficient consumables produces a faster, cleaner cut than the current rating alone would suggest.

A continuous pilot arc feature keeps the arc alive when it passes over gaps, which allows operators to cut expanded metal, grating or rusted material without retriggering the torch. The standard consumables give maximum penetration on heavier sections, while FineCut consumables narrow the kerf for clean detailed cuts on thin sheet, so the operator selects the consumable set to suit each task.

Engineering Design of the Hypertherm Powermax30 XP

The power supply measures just 356 mm deep, 140 mm wide and 292 mm high with handles, small enough to fit in a service vehicle or carry up ladders and scaffolding. Auto-Voltage technology lets it run from 120 V or 240 V single-phase circuits at 50/60 Hz, and the datasheet notes that plug adapters are included in the relevant regional kits. The duty cycle is 35% on 240 V and 20% on 120 V at 40 °C, with a 256 VDC open-circuit voltage.

Air demand is modest at 113.3 l/min (4 scfm) at 5.5 bar (80 psi), and the gas must be clean, dry and oil-free air or nitrogen, so a portable compressor with suitable filtration can supply it in the field. When running from a generator, Hypertherm specifies 5.5 kW for full 30 A output. The standard kit uses a Duramax LT hand torch with a 4.5 m lead and work clamp, and the unit is fully recyclable according to the datasheet.

Choosing Consumables and Setting Up

Getting good results from the Hypertherm Powermax30 XP depends largely on matching the consumable set to the material. As general guidance, the standard consumables are the right choice when cutting near the upper end of the thickness range or when speed matters most, while FineCut parts should be fitted for thin sheet, tight curves and parts that will be visible after installation. Operators should check the electrode and nozzle regularly, keep the air supply dry and filtered, and set the output current to the material thickness rather than always running at maximum. Because the Hypertherm Powermax30 XP uses drag-cutting consumables, the torch can rest directly on the plate, which helps less experienced users hold a steady stand-off and produce straight, consistent cuts.

Key Features

The Hypertherm Powermax30 XP is chosen mainly for portability and versatility, as the points below show.

• A total weight of 9.5 kg including torch makes the unit easy to carry by hand on site.
• Auto-Voltage input allows connection to 120 V or 240 V single-phase circuits without manual switching.
• The two-in-one design pairs high-power cutting for thicker metal with FineCut consumables for thin sheet.
• Continuous pilot arc cuts grating and rusted metal without repeated torch retriggering.
• Hypertherm quotes up to ten times longer consumable life compared with competitors.
• Drag-cutting consumables and a simple interface reduce training time for occasional users.
• A modest 4 scfm air demand allows operation from small portable compressors with proper filtration.
• Generator operation requires only 5.5 kW for full 30 A output.

Industrial Applications

Hypertherm lists automotive repair, metal art and signage, property and plant maintenance, HVAC and mechanical contracting, trade schools and agricultural maintenance among the main users. In Oman the Hypertherm Powermax30 XP fits maintenance teams at hotels, hospitals and commercial buildings in Muscat, mechanical contractors installing ductwork, supports and cable trays, instrument technicians fabricating small brackets and enclosures, and technical colleges teaching cutting skills. It is also a practical tool for offshore and remote station maintenance kits where weight and power supply are limited.

For larger fabrication tasks, Seven Star LLC supplies higher-output equipment in our plasma cutting systems category as well as welding equipment like the ESAB Rebel EMP 285ic portable multi-process welder and the Lincoln Electric Power Wave S500, plus filler metals such as Lincoln SuperArc L-59 ER70S-6. A maintenance crew that carries a Hypertherm Powermax30 XP alongside a compact welder can complete most small repair jobs without returning to the workshop.

Technical Specifications

The table lists values from the Hypertherm Powermax30 XP datasheet; the same core data applies to the CSA, CE and CCC versions shown there.

Documentation

The attached Hypertherm Powermax30 XP datasheet covers capacities, electrical data for the CSA, CE and CCC versions and the standard system ordering information. Plug configuration and kit contents vary by region, so please confirm the local supply arrangement with us when ordering.

Call To Action

To request a quotation for the Hypertherm Powermax30 XP, contact Seven Star LLC with the quantity, your site supply voltage and any consumable or accessory requirements. Our Muscat team will confirm the right regional kit and a sensible set of spare consumables for maintenance work in Oman and the GCC.
