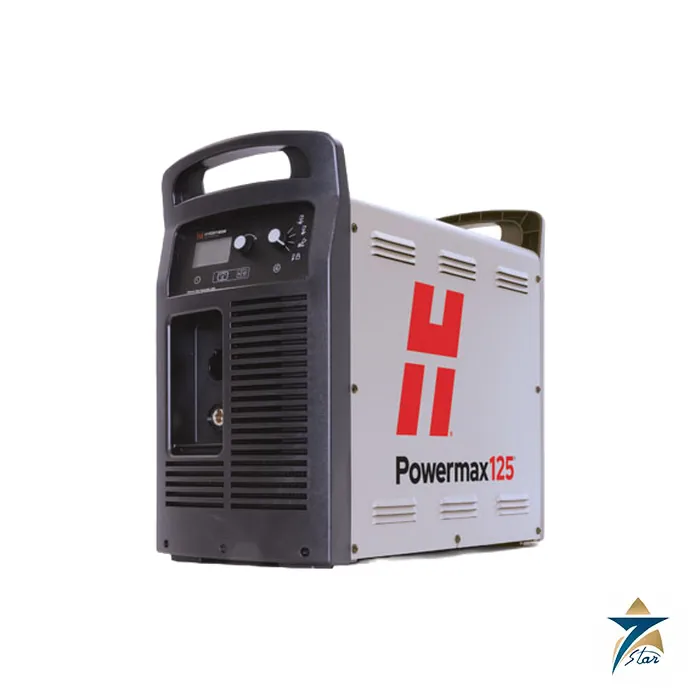

Hypertherm Powermax125 Heavy-Duty Plasma Cutter

Overview

The Hypertherm Powermax125 is the most powerful air plasma system in the Powermax range, designed for the operator who spends the whole shift cutting and gouging thick metal. Hypertherm describes it as delivering maximum power and performance for air plasma, with a 100% duty cycle at its full 125 A output, a 25 mm (1 in) mechanized pierce capability and fast gouging metal removal. Its recommended cut capacity is 38 mm (1-1/2 in) at 457 mm/min, and in hand cutting it severs 57 mm (2-1/4 in) steel.

Seven Star LLC supplies the Hypertherm Powermax125 to shipyards, heavy structural fabricators, scrap and demolition contractors and plant maintenance departments across Oman and the GCC. With engineering support in Muscat, our team helps match the power supply variant, torch style and lead length to the work, whether that is handheld gouging on a ship hull or a mechanized torch on a cutting table.

Working Principle

As a general description of the process, the system uses an IGBT inverter power supply to produce a regulated DC arc. A pilot arc starts inside the torch, transfers to the grounded workpiece, and the compressed air or nitrogen passing through the constricted nozzle becomes a high-energy plasma jet that melts and ejects the metal. On the Hypertherm Powermax125 the output current is adjustable from 30 to 125 A and the rated output voltage is 175 VDC, which is what gives the unit its ability to keep cutting speed on thick sections.

Two Hypertherm technologies simplify that process for the Hypertherm Powermax125 operator. Smart Sense technology automatically sets the correct gas pressure, so there is no need to adjust the regulator when switching modes or torch lengths. SpringStart technology gives consistent arc starting and a more reliable torch. Hypertherm also cites electrode end-of-life detection, which automatically stops power when the electrode is overused and protects both torch and workpiece.

Engineering Design of the Hypertherm Powermax125

The Hypertherm Powermax125 power supply measures 483 mm deep, 233 mm wide and 430 mm high including handles. Hypertherm offers 480 V and 600 V three-phase CSA versions, a 400 V three-phase CE version for Europe and other regions where CE is accepted, and a 380 V CCC version for China. With a 7.6 m torch the weight is in the range of roughly 45 to 49 kg depending on the voltage variant, and electrical efficiency is quoted at 91–92%.

Eleven Duramax Hyamp torch styles are available for hand cutting, portable automation, X-Y table cutting, extended-reach cutting and robotic cutting and gouging. Hand torches come in 85 degree and 15 degree heads, while 180 degree full-length machine torches suit table and track systems. Mechanized power supplies include a CPC port and voltage divider, with an additional serial port on selected versions for CNC communication. Hypertherm states consumable life up to four times longer than other systems in this amperage range.

Key Features

These are the points that usually decide a Hypertherm Powermax125 purchase for heavy-duty work.

• A 100% duty cycle at 125 A and 40 °C allows continuous cutting without forced cool-down pauses.
• Hypertherm quotes cut speeds five times greater than oxyfuel on 12 mm (1/2 in) mild steel.
• Typical gouging removes 12.52 kg (27.6 lb) of metal per hour, with groove depths of about 4.3 to 7.9 mm.
• Smart Sense technology keeps gas pressure correctly set automatically, removing a common setup error.
• A patented drag-cut shield allows drag cutting at full output with reduced dross build-up.
• Eleven Duramax Hyamp torch styles cover handheld, mechanized, extended-reach and robotic duties from one power supply.
• Electrode end-of-life detection automatically shuts off power before a worn electrode can damage the torch.
• Engine-driven generator operation is supported, with 40 kW or 50 kVA required for full 125 A output and reduced output on smaller sets.

Industrial Applications

Thick plate and repeated gouging are where the Hypertherm Powermax125 earns its place. In Oman that includes hull and deck repair at the Duqm dry dock, steel structure fabrication for industrial projects in Sohar and Sur, dismantling of redundant tanks and pipework during brownfield work, and repair shops serving mining and heavy equipment fleets. Its generator compatibility makes it practical at remote oil and gas locations where mains three-phase power is limited, provided the generator is sized to the output required. Because the Hypertherm Powermax125 shares its compact case size with lighter Powermax models, it can still be moved between work fronts on a trolley or lifted onto scaffold platforms by two people, which matters on congested shutdown sites where cranes are reserved for heavier lifts.

After cutting and gouging, joints are prepared for welding with process equipment that Seven Star LLC also supplies, including the Lincoln Electric Power Wave S500 for advanced MIG processes and the portable ESAB Rebel EMP 285ic multi-process welder. For heavy submerged arc work, wires such as LongTeng EL8 SAW wire are often used. Visit our plasma cutting systems category to compare lighter Powermax models with the Hypertherm Powermax125.

Technical Specifications

The following Hypertherm Powermax125 data is taken from the manufacturer product page; electrical values depend on the regional power supply variant.

Documentation

A downloadable manufacturer datasheet for the Hypertherm Powermax125 was not available to attach to this page, so the figures above come from the manufacturer product page. Ordering codes vary with voltage, torch style, lead length and interface options; our engineers will confirm the exact configuration with you before quoting.

Call To Action

To obtain a formal quotation for the Hypertherm Powermax125, contact Seven Star LLC with your supply voltage, required torch styles and lead lengths, and whether you need CPC or serial communication for mechanized cutting. Our Muscat engineering team will recommend the matching consumables and spares and support your projects throughout Oman and the GCC.
