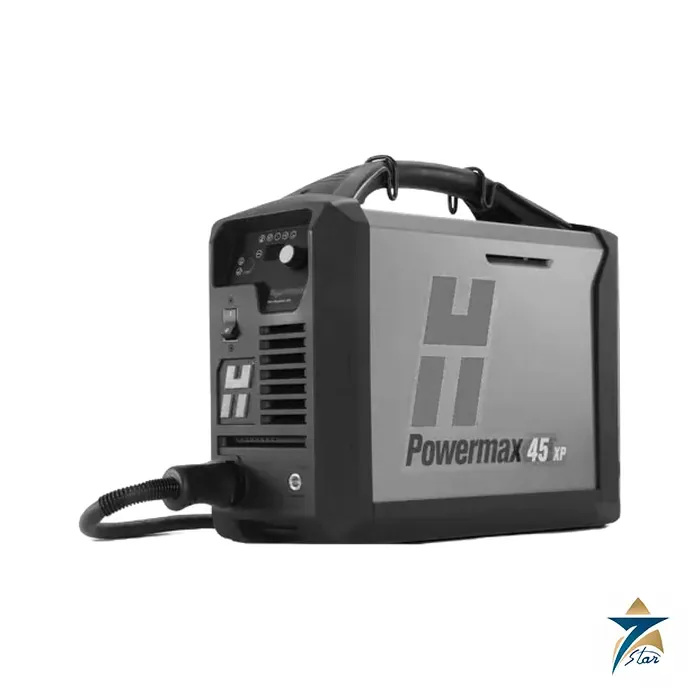

Hypertherm Powermax45 XP Handheld and Mechanized Plasma Cutter, 45 A
Description
A 45 A plasma system for 16 mm cutting, gouging and marking
The Hypertherm Powermax45 XP is a professional-grade inverter plasma system rated to cut 16 mm (5/8 in.) of mild steel at 500 mm/min, with a 22 mm (7/8 in.) cut at 250 mm/min and a hand-cut severance capacity of 29 mm (1-1/8 in.). The recommended hand-held pierce capacity is 12 mm (1/2 in.). It is built for property and plant maintenance, HVAC and mechanical contracting, general fabrication, construction, agricultural equipment repair and similar work.
It works as a hand system or as a mechanized one: a CNC interface and FastConnect torch connection allow machine torches, and optional power supply versions add a CPC port, voltage divider and serial port. Hypertherm describes patented drag-cutting technology, Smart Sense technology that sets the correct gas pressure automatically so the operator does not adjust air pressure, SpringStart technology for consistent starting, and Duramax Lock torches designed for impact and heat resistance. A low-amp process (10 to 25 A) supports marking, scoring and precision gouging.
Technical specifications
| Parameter | Specification |
|---|---|
| Output current | 10-45 A |
| Rated output voltage | 145 VDC |
| Duty cycle at 40 C | 50% at 45 A; 60% at 41 A; 100% at 32 A (stated for 200-240 V CSA, 230 V CE/CCC and 480 V CSA) |
| Input voltage (plus or minus 10%) | CSA 200-240 V, 1-phase, 50-60 Hz; CE/CCC 230 V, 1-phase, 50-60 Hz; CE/CCC 400 V, 3-phase, 50-60 Hz; CSA 480 V, 3-phase |
| Input current at 6.5 kW | CSA 200-240 V: 39/32 A; CE/CCC 230 V 1-phase: 33 A |
| Open-circuit voltage | 275 VDC (200-240 V and 480 V CSA, 230 V CE/CCC); 265 VDC (400 V CE/CCC) |
| Recommended cut, mild steel | 16 mm (5/8 in.) at 500 mm/min (20 ipm) |
| Next cuts | 22 mm (7/8 in.) at 250 mm/min (10 ipm); severance 29 mm (1-1/8 in.) at 125 mm/min (5 ipm) |
| Maximum cut speeds, mild steel | 6 mm 2,286 mm/min; 9 mm 1,219 mm/min; 12 mm 762 mm/min; 16 mm 508 mm/min; 19 mm 330 mm/min; 25 mm 178 mm/min (laboratory values per manual) |
| Gouging | Typical gouge 3.4 kg (7.5 lb) per hour, groove 3.2 mm (0.12 in.) deep by 6.8 mm (0.26 in.) wide |
| Gas supply | Cutting and gouging: clean dry oil-free air, nitrogen or F5; marking: air or argon |
| Recommended gas inlet | 188 L/min (400 scfh) at 5.9 bar (85-90 psi); gouging and marking 165 L/min at 3.8-4.1 bar per manual |
| Dimensions with handles | 442 mm D x 173 mm W x 357 mm H (17.4 x 6.8 x 14.1 in.) |
| Weight with 6.1 m (20 ft) torch | CSA 14 kg (31 lb); CE/CCC 15 kg (33 lb) |
| Power supply type, efficiency | Inverter (IGBT); electrical efficiency 88% |
| Engine drive requirement | 12.5 kVA (10 kW) for full 45 A output |
| Operating / storage temperature | -10 to 40 C / -25 to 55 C (manual) |
| Certifications as printed | CSA for the Americas and Asia except China; CCC for China; CE, RCM, CU/GOST-TR, UkrSEPRO and Serbian AAA where accepted |
| Warranty printed | Power supply 3 years; torch 1 year |
Torches, consumables and the cartridge option
Standard systems include a power supply, torch and work cable. The brochure lists Duramax Lock 75 degree and 15 degree hand torches and 180 degree machine torches in lengths from 4.5 m to 22.8 m, 7.6 m and 15.2 m work cables, remote pendants and CNC control cables. Drag-cutting hand consumables at 45 A are nozzle 220941, shield 220818, retaining cap 220854, electrode 220842 and swirl ring 220857; FineCut hand parts use nozzle 220930 and shield 220931; max-control gouging at 26 to 45 A uses nozzle 420419 and shield 420480.
The Powermax cartridge platform can be added through a torch adapter (428951 for Duramax and Duramax Lock torches), or Cartridge retrofit torches such as the HRT 75 degree hand torch with a 7.6 m lead, 059920. Cartridges are colour coded by process: 45 A drag cutting 428927, 45 A mechanized 428925, FineCut 428928 and 428926, and max-removal gouging 428932 for 45 to 85 A. Hypertherm notes that SmartSYNC torches are not compatible with the Powermax45 XP.
Ordering and what to confirm before ordering
Standard configurations are listed by voltage: 200-240 V CSA (088112 and 088114 for the standard power supply), 230 V CE/CCC (088130 and 088132) and 400 V CE/CCC (088144 and 088146), with CPC port versions such as 088113, 088131 and 088145. Custom power supplies are 088092 (CSA), 088093 (230 V CE/CCC) and 088094 (400 V CE/CCC). Starter consumable kits are 428559 handheld, 428560 mechanized and 428561 mechanized with ohmic cap.
Confirm the supply (single-phase 230 V or three-phase 400 V CE model, since each is a different power supply), the torch style and lead length, hand or mechanized use, the clean dry air supply, and the generator size. The installation must have time-delay fuses and a line-disconnect switch fitted by a licensed electrician, per the manufacturer. Compare the Hypertherm Powermax65 SYNC for higher output, or browse all Plasma Cutting Systems.
How the Hypertherm Powermax45 XP works
An inverter turns the mains supply into a stable DC output. Compressed gas flows through the torch, and an arc heats it into plasma. The hot plasma jet melts the metal and blows it out of the cut.
Where the Powermax45 XP is used
- Plant maintenance
- HVAC and mechanical contracting
- General fabrication
- Construction
- Agricultural equipment repair
Selection checklist for the Powermax45 XP
- Metal thickness
- Hand or mechanized use
- Supply voltage
- Single or three-phase supply
- Torch length
- Gas supply
- Duty cycle need
- Consumables
Installation, commissioning and maintenance notes for the Powermax45 XP
Connect the power cord and the gas supply and attach the torch. Set the amperage and start the cut. Check the consumables and the air filter at regular intervals.
Requesting a quotation for the Hypertherm Powermax45 XP
Please send the metal thickness, the supply voltage and the torch type needed. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.
Powermax45 XP system type
It is an inverter plasma cutting system.
Powermax45 XP maker
It is made by Hypertherm.
Powermax45 XP output current
The output current runs from 10 to 45 A.
Powermax45 XP rated voltage
The rated output voltage is 145 VDC.
Powermax45 XP recommended cut
The recommended cut is 16 mm of mild steel at 500 mm/min.
Powermax45 XP next cut
The next cut is 22 mm at 250 mm/min.
Powermax45 XP severance cut
The hand-cut severance capacity is 29 mm.
Powermax45 XP pierce
The hand-held pierce capacity is 12 mm.
Powermax45 XP cutting speed
A 6 mm plate cuts at up to 2,286 mm/min in laboratory conditions.
Powermax45 XP duty cycle
The duty cycle is 50 percent at 45 A and 40 degrees C.
Powermax45 XP hand use
It works as a hand system.
Powermax45 XP mechanized use
It also works as a mechanized system.
Powermax45 XP machine interface
A CNC interface and a FastConnect torch connection allow machine torches.
Powermax45 XP optional ports
Optional versions add a CPC port, a voltage divider and a serial port.
Powermax45 XP drag cutting
Patented drag-cutting technology lets the operator rest the torch on the plate.
Powermax45 XP gas pressure
Smart Sense technology sets the gas pressure automatically.
Powermax45 XP starting
SpringStart technology gives consistent starting.
Powermax45 XP torches
Duramax Lock torches resist impact and heat.
Powermax45 XP marking
A low-amp process of 10 to 25 A supports marking and scoring.
Powermax45 XP gouging
The low-amp process also supports precision gouging.
Powermax45 XP gas supply
Cutting uses clean dry oil-free air, nitrogen or F5.
Powermax45 XP marking gas
Marking uses air or argon.
Powermax45 XP gas flow
The recommended gas flow is 188 litres per minute.
Cutting records for the Powermax45 XP
Record the metal thickness, the amperage and the date of each check.
Choosing the right Powermax45 XP torch
Choose the torch from the cutting method in use.
Datasheets & Documents
- Datasheet Hypertherm Powermax45 XP brochure and specifications (HYP174110) Download
Reviews (0)
About brand
Plasma cutting is the field Hypertherm has worked in since 1968, from Hanover, New Hampshire, USA. Its systems range from air plasma units carried by hand to mechanized plasma for CNC tables, backed by CNC controls, nesting software and torch consumables.
Seven Star LLC lists Hypertherm plasma cutting systems from the Powermax, HPR and XPR families and supplies them to fabricators and maintenance shops in Oman.
Hypertherm plasma families listed here
The number in each Hypertherm model name is its output current class in amperes:
- Powermax30 XP and Powermax125: air plasma systems, from portable to heavy duty
- Powermax65 SYNC and Powermax105 SYNC: the SYNC generation of Powermax
- HPR400XD: HyPerformance mechanized plasma
- XPR300: X-Definition mechanized plasma
The listing also includes the Powermax45 and 85 SYNC, XPR170 and XPR460. The manufacturer also lists HPR800XD and MAXPRO200, together with Duramax torches, EDGE Connect CNC and ProNest software.
Where Hypertherm systems are used
Hypertherm names heavy equipment, industrial pressure vessels, job shops, steel service centers, shipbuilding and structural steel as its main industries. Powermax units are used for hand cutting and gouging in workshops and on site, and can also be run on a cutting table with a machine torch. HPR and XPR systems are built into CNC machines for production cutting of plate, a common setup in GCC fabrication yards.
Ordering Hypertherm equipment and consumables: what we need
For a system, send the model, the input voltage and phases at your site, the torch type (hand or machine) and the lead length. Hypertherm sells most systems under a configuration part number, so send that number if you have it. For consumables, send the system model, the torch model, the cutting current and the process (cutting, gouging, shielded or fine cut), or simply the part numbers printed on the old parts. For mechanized systems, tell us the make of the cutting table and CNC.
Related products
Frequently Asked Questions
What thickness does the Powermax45 XP cut?
Hypertherm rates 16 mm (5/8 in.) recommended cut, 22 mm at 250 mm/min, and 29 mm (1-1/8 in.) hand severance.
What is the output range?
10 to 45 A at a rated 145 VDC, with duty cycle 50% at 45 A and 100% at 32 A at 40 C.
Which input supplies are offered?
CSA 200-240 V single phase, CE/CCC 230 V single phase and 400 V three phase, plus 480 V CSA three phase.
Can it be used with a CNC table?
Yes. Machine torches and CPC port power supply versions with a voltage divider are available.
What generator does it need?
Hypertherm states an engine drive of 12.5 kVA (10 kW) for the full 45 A output.
