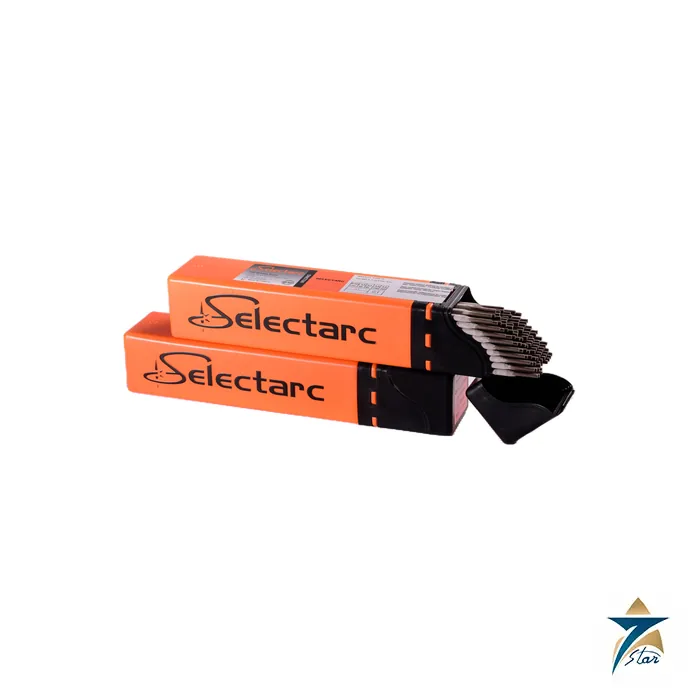

Selectarc Inox 2209 E2209-17 Duplex Stainless Electrode

Name: Selectarc Inox 2209 E2209-17 Electrode | Seven Star LLC
Brand: Selectarc
SKU: Inox 2209

Description

Duplex electrode for chloride-resistant joints

The Selectarc Inox 2209 is a rutile-basic stick electrode that deposits an austenitic-ferritic (duplex) weld metal. It is classified AWS A5.4 E2209-17 and ISO 3581-A / EN 1600 E 22 9 3 N L R 3 2. Selectarc states that the deposit can operate up to 250 °C and resists pitting, crevice and stress corrosion in chloride-containing media such as sea water.

The electrode welds in all positions except vertical down, with a stable arc, regular drop transfer, easy slag removal and finely rippled beads. Main applications are butt welding and cladding of duplex steels and castings in pumps, vessels and piping systems exposed to chloride solutions, and impellers or other parts that need high strength together with corrosion resistance.

Technical specifications

Parameter	Specification
Manufacturer / product	Selectarc / Inox 2209
Process	SMAW (stick, MMA)
AWS classification	A5.4 E2209-17
ISO / EN classification	3581-A and EN 1600 E 22 9 3 N L R 3 2
Coating	Rutile-basic
Typical weld metal, %	C under 0.030, Si 0.9, Mn 0.9, Cr 22.5, Ni 9.0, Mo 3.0, N 0.18, Fe balance
Yield strength Rp0.2	Above 550 MPa
Tensile strength Rm	Above 700 MPa
Elongation A5	Above 22%
Impact energy KV	Above 50 J at +20 °C; above 37 J at -40 °C
Sizes (diameter × length) and current	2.5 × 300 mm, 50–75 A; 3.2 × 350 mm, 70–100 A; 4.0 × 350 mm, 90–150 A
Current type	DC electrode positive or AC (open circuit voltage about 70 V)
Positions	All except vertical down
Redrying	2–3 h at 250–300 °C
Interpass temperature	Below 150 °C
Maximum service temperature	250 °C

Base materials

Listed base metals are UNS S31803 (2205, 1.4462), S32304 (1.4362), S32900 (329, 1.4460) and the cast grades G-X8CrNiN26-7 (1.4347) and G-X6CrNiMo24-8-2 (1.4463). The weld metal is over-alloyed in nickel compared with 2205 plate, a standard approach that restores the austenite-ferrite balance in the as-welded condition.

Getting the phase balance right

Duplex welds depend on heat input and cooling rate. Too little heat gives excess ferrite and lower toughness; too much, or a high interpass temperature, risks intermetallic phases. Selectarc asks for an interpass temperature below 150 °C, a short arc and a slight electrode inclination. Redry for 2 to 3 hours at 250–300 °C. Procedure qualifications for duplex often add ferrite measurement and a corrosion test, so state those requirements early.

For super duplex grades such as 2507, a higher-alloyed 25-9 type consumable is normally used instead of 2209.

2209 is also widely used to join duplex to carbon steel or to austenitic stainless steel, provided the procedure accounts for dilution. On thin-walled duplex tube, the 2.5 mm size at 50–75 A helps keep heat input low; on thicker sections, 3.2 and 4.0 mm electrodes fill faster while the interpass limit still controls total heat. Cleanliness matters as much as with any stainless steel: use dedicated tools and remove all slag before the next pass.

Documents and quotation

The Selectarc Inox 2209 data sheet is attached. Browse more grades in our Welding Electrodes category.

For a quotation, send the diameter, quantity and certificate requirements.
