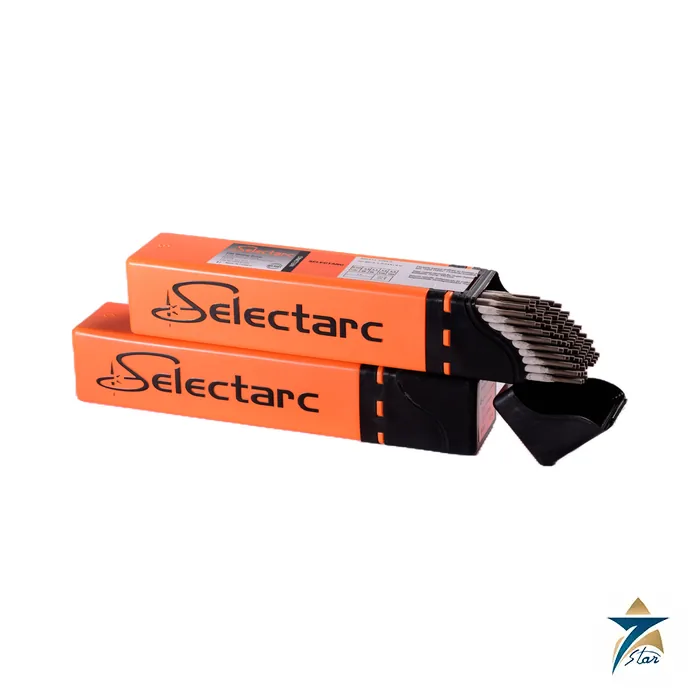

Selectarc Inox 316B E316L-15 Basic Stainless Electrode

Basic-coated 316L electrode for positional work on molybdenum stainless steel

The Selectarc Inox 316B is a low-carbon, basic-coated stainless electrode classified AWS A5.4 E316L-15 and ISO 3581-A E 19 12 3 L B 4 2. Selectarc describes a stable arc, a weld pool that is easy to watch, good slag removal and regular beads, with good behavior in positional welding and on badly prepared joints. The deposit contains about 2.7% molybdenum and about 8% ferrite, and is used for welding and cladding on austenitic Cr-Ni-Mo stainless steels and clad plate.

The manufacturer lists service temperatures from -196 C to +400 C and applications in the chemical and petrochemical industries, in refineries and in shipbuilding, for pipes, tanks and heat exchangers.

Technical specifications

Base materials covered

Selectarc lists general-purpose stainless steels of the 316 family: 316 (X5CrNiMo17-12-2, 1.4401), 316L (X2CrNiMo17-12-2, 1.4404), 316LN (1.4406), cast grade J92900 (1.4408), and the stabilized grades 316Ti (1.4571 and 1.4573) and 316Cb (1.4580), with the cast equivalent 1.4581. These are the usual materials for process piping, tanks and heat exchangers exposed to chlorides or mild acids.

As a general rule, a 316L filler is chosen to match the molybdenum content of the parent metal; 308L-type fillers lack the molybdenum and give lower pitting resistance on 316 base metal. Where the joint is between 316L and carbon steel, a higher-alloy 309L-type consumable is normally specified instead.

Handling and welding practice

Basic stainless electrodes should be kept dry. Selectarc gives a redrying cycle of 1 hour at 250 C if needed, and an interpass limit of 150 C, which helps to limit distortion and sensitization on thin sections. Use a short arc, clean the joint and the weld area of grease and oxide, and keep a stringer technique on thin wall pipe. The data sheet lists 2.5 mm at 70 A for roots and thinner material, 3.2 mm at 90 A as a general size and 4.0 mm at 120 A for heavier fill passes.

The 15 in the AWS designation marks a basic coating used on DC electrode positive, in contrast to the rutile -16 and -17 types that also run on AC. Basic coatings generally give a deposit with lower oxygen content and better toughness at low temperature, which is why the data sheet quotes impact values down to -120 C. Verify the ferrite level against the procedure test if the project specifies a ferrite range, because Selectarc quotes the approximate value of 8% as a typical figure.

Where the Selectarc Inox 316B is used

• Chemical and petrochemical plants
• Refineries
• Shipbuilding
• Pipes and tanks
• Heat exchangers

Selection checklist for the Selectarc Inox 316B

• Base metal grade
• Welding position
• Electrode diameter
• Current available
• Joint preparation
• Cladding or joining
• Quantity
• Product match

Installation, commissioning and maintenance notes for the Selectarc Inox 316B

Keep the electrodes dry and redry them if the maker advises. Use the current suited to the diameter and watch the interpass temperature. Remove the slag between passes and inspect each bead.

Requesting a quotation for the Selectarc Inox 316B

Please send the base metal, the diameter and the quantity. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

Inox 316B product type

It is a stainless steel electrode for stick welding.

Inox 316B maker

It is made by Selectarc.

Inox 316B carbon

It is a low-carbon electrode.

Inox 316B coating

The coating is basic.

Inox 316B arc

Selectarc describes a stable arc.

Inox 316B weld pool

The weld pool is easy to watch.

Inox 316B slag

Slag removal is good.

Inox 316B beads

The beads are regular.

Inox 316B positions

It behaves well in positional welding.

Inox 316B joints

It also behaves well on badly prepared joints.

Inox 316B deposit

The deposit contains molybdenum and some ferrite.

Inox 316B base metals

It is used for welding and cladding on austenitic Cr-Ni-Mo stainless steels and clad plate.

Inox 316B grades

The base metals are the general-purpose stainless steels of the 316 family and the stabilized grades.

Inox 316B piping

These are the usual materials for process piping, tanks and heat exchangers exposed to chlorides or mild acids.

Inox 316B filler match

A 316L filler is chosen to match the molybdenum content of the parent metal.

Inox 316B 308L contrast

A 308L-type filler lacks the molybdenum and gives lower pitting resistance on 316 base metal.

Inox 316B drying

Redrying is done if necessary.

Inox 316B industries

The maker lists the chemical and petrochemical industries, refineries and shipbuilding.

Inox 316B documentation

Manufacturer documentation is supplied with a quotation.

Inox 316B customers

Seven Star LLC serves fabricators and plants across Muscat, Sohar and Salalah.

Inox 316B support

Seven Star LLC gives local technical support with selection.

Welding records for the Selectarc Inox 316B

Record the base metal, the diameter and current used and the batch of electrodes.

Choosing the right Selectarc Inox 316B diameter

Choose the diameter from the joint thickness, the position and the current available.

Documents and quotation

Our team can help obtain the current manufacturer data sheet; the official Selectarc technical data sheet page is linked below. Browse our Welding Electrodes category for other stick electrodes. For a quotation, send the diameter and length, quantity, packaging preference and any certificate requirement, such as an EN 10204 3.1 inspection certificate.

How the Selectarc Inox 316B Works in Practice

Selectarc Inox 316B is a covered stick electrode for manual metal arc (MMA) welding of molybdenum-alloyed austenitic stainless steels of the 316 family. In MMA welding, the arc melts the core wire and the flux coating. The coating creates shielding gas and slag that protect the molten pool from the air, and the slag is removed after each pass. A basic-type coating is generally chosen when weld soundness and positional capability matter more than cosmetic bead appearance. For the exact classification, recommended current ranges by diameter and the typical chemical analysis, always refer to the official Selectarc technical data sheet.

Selectarc Inox 316B Selection Checklist

• Confirm the base material grade and thickness against the procedure specification.
• Check the required classification and any approval demanded by the project or third-party inspector.
• Match the welding position, joint design and access to the consumable chosen.
• Verify the polarity and shielding conditions recommended by the manufacturer.
• Plan storage, handling and traceability so certificates follow the material to the job site.
• Keep electrodes dry and follow the manufacturer re-drying instructions.

Installation, Handling and Maintenance

Store electrodes in their original packaging in a dry place. Once a pack is opened, keep the rods in a heated holding oven or quiver so they do not pick up moisture. Use the polarity and current recommended on the data sheet, and keep the arc short. Remove all slag and clean between passes with stainless-only brushes so that carbon steel does not contaminate the surface. After welding, pickling and passivation restore the corrosion resistance of the joint.

Typical Applications in Oman and the GCC

Typical uses in Oman and the GCC include process piping, tanks and vessels in the desalination, petrochemical, food and pharmaceutical sectors, as well as maintenance repairs on 316-grade equipment exposed to chlorides and marine atmospheres along the coast.

Why Source the Selectarc Inox 316B from Seven Star LLC

Seven Star LLC supplies Selectarc Inox 316B products to industrial, oil and gas, construction and fabrication customers across Oman and the GCC. Share your application details and quantity to request a quote, and our team can help confirm the correct ordering code and the documentation required for your project before you order.
