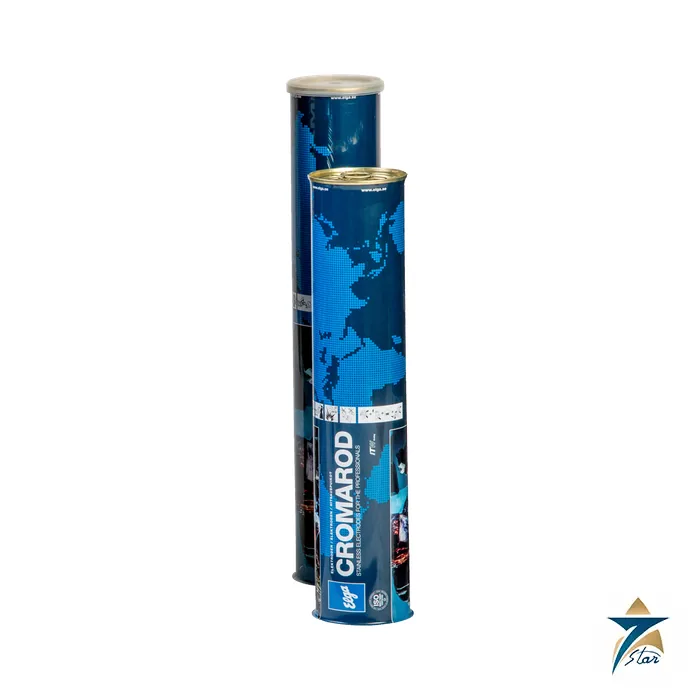

Elga Cromarod 309MoL E309MoL-17 Dissimilar Steel Electrode

Name: Elga Cromarod 309MoL E309MoL-17 Electrode – Datasheet
Brand: Elga
SKU: Cromarod 309MoL

Description

Rutile 23Cr-12Ni-2.5Mo electrode for dissimilar and buffer-layer joints

The Elga Cromarod 309MoL is a rutile flux-coated stainless electrode classified AWS A5.4 E309MoL-17 and EN ISO 3581-A E 23 12 2 L R 32. It deposits an austenitic weld metal of about 23% chromium, 12% nickel and 2.5% molybdenum with a ferrite number of about 20 (WRC-92). Elga explains that the high alloy content and ferrite level let the weld metal tolerate dilution from dissimilar and difficult-to-weld materials without hot cracking or brittle structures.

Technical specifications

Parameter	Specification
Manufacturer / product	Elga / Cromarod 309MoL
Process	SMAW stainless, rutile coating
AWS classification	A5.4 E309MoL-17
EN ISO classification	3581-A E 23 12 2 L R 32
Welding current	AC (OCV above 39 V), DC +
Redrying	350 °C for 2 h
Scaling temperature	Approx. 1000 °C in air
Ferrite number	FN 20 (WRC-92)
Weld metal chemistry, typical %	C 0.02, Si 0.8, Mn 0.8, P 0.02, S 0.02, Cr 22.8, Ni 12.8, Mo 2.4, Cu 0.02
Weld metal chemistry, range %	C 0.03 max, Mn 0.5-2.0, Cr 22.0-25.0, Ni 12.0-14.0, Mo 2.0-3.0, Cu 0.5 max
Yield strength Re (typical, as welded)	555 MPa
Tensile strength Rm (typical)	680 MPa
Elongation A5 (typical)	33%
Impact energy CV (typical)	50 J at -20 °C
Approvals listed	CE, TUV, DB 30.042.03, DNV, ABS, RINA, RMS, NAKS
2.0 x 300 mm	35-60 A, 26 V
2.5 x 300 mm	40-80 A, 27 V
3.2 x 350 mm	80-120 A, 28 V
4.0 x 350 / 450 mm	100-160 A, 29 V
5.0 x 450 mm	150-220 A, 30 V

Applications named by Elga

The data sheet lists four uses: dissimilar joints between stainless steel and mild, low-alloy or medium-carbon steel; buffer layers on mild and low-alloy steel before overlaying with Cromarod 316L; interface runs in 316L clad steel; and joining medium-carbon hardenable steels such as armour plate. After surfacing carbon steel with two layers, Elga states that the corrosion resistance is about the same as 316L material.

Why the molybdenum and ferrite matter

When stainless filler is deposited on carbon steel, iron from the base metal dilutes the weld and pulls the composition toward martensitic or low-ferrite structures that crack. Starting from an over-alloyed 309-type deposit leaves enough chromium and nickel after dilution to stay austenitic with a controlled ferrite content. The 2.5% molybdenum adds pitting resistance, so a single buffer layer can serve as the base for a 316L cover pass in chemical service.

One limitation to note: the data sheet states that the AWS classification and ABS approval apply to diameters up to 3.2 mm and are not valid for 4.0 mm and above. Also keep in mind the 350 °C, two-hour redrying temperature, which is much higher than for carbon steel rutile types. Our Elga Cromarod Duplex page is a related stainless option for a different alloy family.

Documents and quotation

The Elga Cromarod 309MoL product data sheet is attached to this page for download. Related consumables are listed in our Welding Electrodes category.

For a quotation, send the diameter or size, pack type, quantity and any certificate or approval requirement.
