MTL 9608 Process Junction Box
Overview
The MTL 9608 (Crouse-Hinds series part number FCS-9608) is a process junction box purpose-built for Foundation Fieldbus and PROFIBUS PA wiring, providing eight pre-drilled spur outlets plus a single trunk-in connection inside a corrosion-resistant stainless steel enclosure. As part of Eaton’s MTL process safety portfolio, the 9608 is a standard, proven design engineers can specify off the shelf instead of commissioning a custom junction box for every fieldbus segment, eliminating the cost and lead time of bespoke enclosure engineering on process automation projects.
As an experienced supply partner for Eaton’s Crouse-Hinds series – which includes the MTL intrinsic safety and fieldbus product range – Seven Star LLC proudly supplies the MTL 9608 process junction box to refineries, gas plants, desalination facilities and process manufacturers across the Sultanate of Oman and the wider GCC. Every unit is genuine Eaton stock with full certification paperwork, giving instrumentation teams in Muscat, Sohar and Salalah a trusted local source for fieldbus infrastructure components.
Operating Principle
The MTL 9608 operates as a passive fieldbus wiring hub: it does not process signals itself but provides the certified physical infrastructure that lets a single fieldbus trunk segment branch out to multiple field instruments through Megablock spur connectors mounted on its internal DIN rail. The trunk cable enters through a dedicated gland, terminates on the Megablock wiring block, and each of the eight spur circuits then distributes power and communication to an individual field transmitter, positioner or analyzer, with integral terminators available where the 9608 sits at the physical end of a segment.
Because the enclosure and its glanding are certified for Zone 1 and Zone 2 intrinsically safe (Ex i) fieldbus applications, the practical consequence for the plant is a single junction point that safely combines multiple device connections without introducing an ignition source, without adding a pressure drop or process interruption, and without the maintenance burden of numerous individually-glanded field junctions. Spare capacity in the enclosure also means additional field devices can be added to a segment later without installing an entirely new junction box.
Engineering Design of the MTL 9608

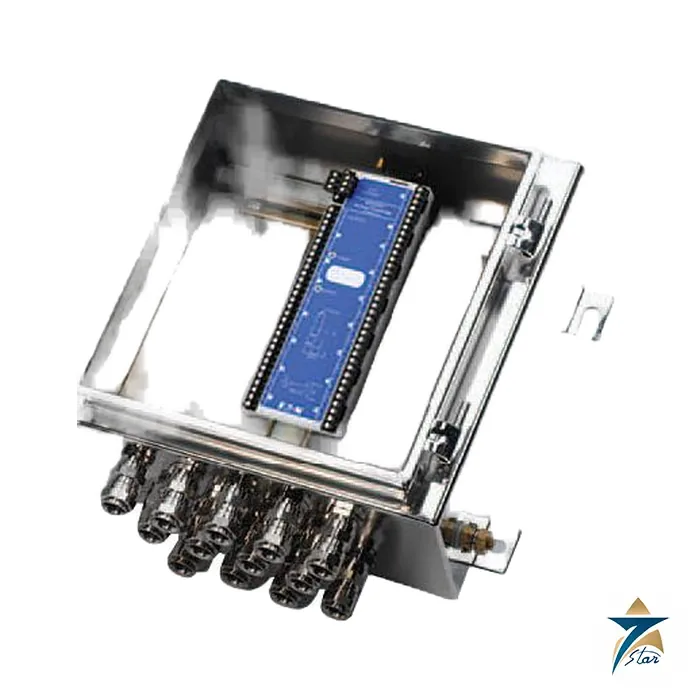

Physically, the MTL 9608 enclosure is manufactured from electrochemically polished 316 stainless steel, chosen specifically for its resistance to the corrosive chemicals and vapours common in process plant environments, and is rated IP66 to EN60529 with 7 Nm impact resistance to IEC60079-7. The hinged lid seals against a silicone gasket and incorporates a rain channel that diverts standing water away from the terminal chamber whenever the door is opened, protecting the one-piece seal from damage during routine maintenance in exposed outdoor installations.
Internally, the box is fitted with a single DIN rail to EN50022 (35 x 7.5mm ‘T’ section) mounted vertically with end stops, providing 166mm of rail length – enough for the Megablock components needed for an 8-way trunk-in configuration. All nine glanding positions are located in the base of the enclosure with a minimum 75mm clearance to the terminal blocks, easing termination of both standard and wire-armoured cable, and the box is supplied with a choice of stainless steel or nickel-plated brass glands, an M10 earth stud, a breather plug and an adhesive-backed Traffolyte tag label.
Key Features
The MTL 9608 combines the certified intrinsic safety credentials of the MTL fieldbus range with a rugged, field-proven enclosure design engineered specifically for process plant duty:
- Eight pre-drilled spur outlets plus trunk-in connection sized for standard Foundation Fieldbus and PROFIBUS PA segment layouts.
- Electrochemically polished 316 stainless steel construction provides superior corrosion resistance in harsh process environments.
- IP66 ingress protection to EN60529 with 7 Nm impact resistance to IEC60079-7 for outdoor and exposed installation.
- Certified for Zone 2 and Zone 1 intrinsically safe (Ex i) and increased safety fieldbus applications.
- Single DIN rail with 166mm of usable length accommodates a full complement of Megablock wiring components.
- Wide choice of stainless steel or nickel-plated brass cable glands for standard or wire-armoured cable.
- Rain channel and one-piece door seal protect the terminal chamber from standing water during maintenance access.
- Standard, proven design eliminates the cost and lead time of custom junction box engineering on new fieldbus segments.
Industrial Applications
The MTL 9608 process junction box is specified wherever a Foundation Fieldbus or PROFIBUS PA segment needs a certified, corrosion-resistant termination point close to the field instruments it serves. Typical deployments include upstream and downstream oil and gas processing units, LNG trains, refinery distillation and utility areas, and RO desalination plants where flow, pressure, level and temperature transmitters are wired back to a control system marshalling cabinet over a shared fieldbus trunk. Pharmaceutical and chemical batch processing facilities also rely on the 9608’s intrinsically safe rating to safely wire instrumentation inside classified production areas.
Working closely with plant engineers in the region, Seven Star LLC distributes the MTL 9608 to EPC contractors, control system integrators and plant maintenance teams throughout Oman and the GCC, including projects in the Sohar and Salalah industrial and free zones. Supply on request with manufacturer documentation gives automation engineers a dependable local contact for fieldbus infrastructure, with lead time confirmed at quotation.
Technical Specifications
The table below summarizes the key technical parameters of the MTL 9608 process junction box as supplied by Seven Star LLC.
| Parameter | Specification |
|---|---|
| Model | MTL 9608 (Crouse-Hinds series FCS-9608) |
| Type | Fieldbus process junction box, 8 spur outlets + trunk-in |
| Material | Electrochemically polished 316 stainless steel |
| Ingress Protection | IP66 to EN60529 |
| Impact Resistance | 7 Nm to IEC60079-7 |
| Hazardous Area Rating | Zone 2 and Zone 1, IIC T4 (intrinsically safe / increased safety) |
| Operating Temperature | –40°C to +70°C |
| Storage Temperature | –40°C to +80°C |
| Enclosure Dimensions (A x B x C) | 260 x 260 x 316 mm |
| Weight | 6.0 – 7.0 kg |
| DIN Rail | 1 x EN50022 35 x 7.5mm rail, 166mm usable length |
| Max Glands | 9 (stainless steel or nickel-plated brass) |
| Brand | MTL – Crouse-Hinds series (Eaton) |
Request a Quote for MTL 9608 Process Junction Box
Seven Star LLC stocks and supplies the MTL 9608 process junction box for immediate quotation across Oman and the GCC. As an experienced supply partner for Eaton’s Crouse-Hinds series and MTL fieldbus range in Oman and the GCC, we can issue a formal RFQ, confirm regional warehouse availability, and provide the full technical datasheet and gland configuration guidance on request. Contact our instrumentation and process automation division today to discuss project quantities, lead times and segment design for your Muscat, Sohar or Salalah facility.
Related Products
- Datasheet MTL 9608 Process Junction Box Datasheet Download
Cooper Crouse-Hinds product families listed here
The catalog numbers on this page follow the manufacturer's own series names:- Condulet conduit outlet bodies, such as the Form 8 C28 and the Form 5 LB25
- EYS conduit sealing fittings (EYS3, EYS5) and ECGJH flexible couplings
- GUB and GUE explosionproof junction boxes, and the box listed as GUP315
- EDS and EFS explosionproof control stations and N2S non-metallic, factory-sealed stations
- Arktite receptacles, for example the 30 A AR342
Where Crouse-Hinds explosionproof equipment is used
Most of these parts belong to rigid conduit systems in classified areas: refinery units, gas compression and metering stations, tank farms, loading racks, paint and solvent handling, and offshore modules across the GCC. The listed series are built around the North American Class and Division system, but the rating differs by item: N2S stations are marked for Class I, Division 2, and the AR342 receptacle is a watertight type for ordinary locations. A Cooper Crouse-Hinds junction box or control station should therefore be selected against the area classification drawing, not by enclosure size alone.Ordering Cooper Crouse-Hinds parts: what we need
Send the full catalog number from the nameplate or the casting, including every suffix. For conduit bodies and seals, add the hub size and thread, and state the material, iron alloy or copper-free aluminum. For control stations, list the operators, contact blocks and legend plates. For receptacles, give the amperage, the number of wires and poles, and the mating plug. A nameplate photo and the area classification let us confirm the match before quoting.Browse Cooper Crouse-Hinds products by category: Automation Accessories, Pipes & Fittings, Electrical & Power Modules.
