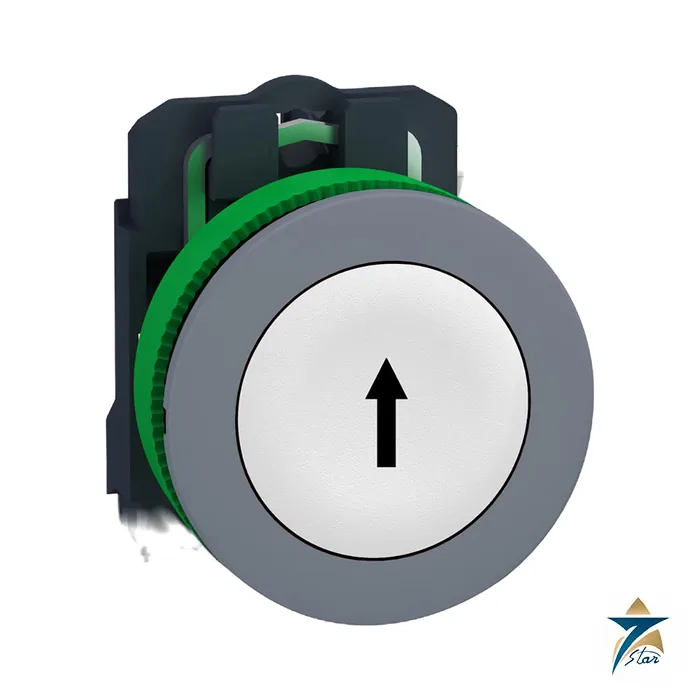

Schneider Electric Harmony XB5 Plastic Pushbutton Station

Overview

The Schneider Electric Harmony XB5 Plastic Pushbutton Station is a 22 mm operator interface range covering pushbuttons, selector switches, pilot lights, and emergency stops used on machine control panels, local control stations, and process control desks. For panel builders across Oman and the GCC, the Harmony XB5 range offers a broad, interchangeable family of operator devices that share common mounting collars and contact blocks, simplifying spares holding across many machine types.

Backed by manufacturer datasheet documentation, Seven Star LLC proudly supplies the Schneider Electric Harmony XB5 Plastic Pushbutton Station 22 mm plastic pushbutton and pilot device station to industrial, commercial, and utility customers across the Sultanate of Oman and the wider GCC. Each unit is supplied on request with full technical documentation and application support, helping panel builders and facility engineers in Oman specify their 22 mm plastic pushbutton and pilot device station with confidence.

Operating Principle

Each Harmony XB5 device is built around a simple mechanical actuator, whether a push button, rotary selector, or illuminated indicator, that operates one or more snap-action contact blocks mounted behind the panel face. When an operator presses, twists, or pulls the actuator, the contact block changes state cleanly and repeatably, providing a reliable digital signal to the machine’s control system without contact bounce or ambiguous intermediate positions.

Because the Schneider Electric Harmony XB5 range separates the front-facing actuator from the rear contact block, the same physical button or switch body can be fitted with different contact configurations, normally open, normally closed, or combinations of both, to match the wiring logic required by the machine’s control philosophy. This modularity lets panel builders standardize on one operator device family while still meeting varied control and safety wiring requirements across different machines.

Engineering Design of the Schneider Electric Harmony XB5

The Harmony XB5 range is molded from durable plastic suited to indoor industrial environments, with a 22 mm panel cutout standard across the family, allowing pushbuttons, selectors, and pilot lights to be freely mixed within the same panel layout. Illuminated variants integrate LED lamp modules directly behind the lens, giving clear operator status indication without a separate indicator light fitting.

Contact blocks on the Schneider Electric Harmony XB5 snap onto the rear of the actuator body without tools, and screw or spring terminal versions are available to match the panel builder’s preferred wiring method. Legend plates and colored actuator caps, including the red mushroom-head emergency stop, follow standard industrial color coding so operators can identify function at a glance regardless of the machine they are working on.

Key Features

The Schneider Electric Harmony XB5 Plastic Pushbutton Station is built around design priorities that matter most to pilot devices and operator interfaces specifiers in Oman and the GCC:

• The Harmony XB5 range shares a common 22 mm mounting collar across pushbuttons, selectors, and pilot lights.
• Tool-free snap-on contact blocks simplify assembly and field reconfiguration of operator devices.
• Illuminated variants integrate LED lamp modules directly behind the actuator lens.
• Standard industrial color coding, including the red mushroom-head emergency stop, aids quick operator recognition.
• Screw and spring terminal contact block options match different panel wiring preferences.
• Interchangeable actuator and contact combinations reduce the spares inventory needed across multiple machines.
• Durable plastic construction suits general indoor industrial and commercial panel environments.
• A broad accessory range covers selector switches, key-operated switches, and multi-position rotary devices.

Industrial Applications

The Schneider Electric Harmony XB5 Plastic Pushbutton Station is specified on machine control panels, local control stations, and process control desks throughout Oman’s manufacturing, water treatment, and packaging facilities, wherever operators need reliable start, stop, and status indication devices. Panel builders in Muscat and Sohar standardize on the Harmony XB5 family to keep a single spares inventory across multiple machine platforms from different OEMs.

Working closely with plant engineers in the region, Seven Star LLC distributes the Schneider Electric Harmony XB5 Plastic Pushbutton Station to panel builders, MEP contractors, and plant operators throughout Muscat, Sohar, and Salalah, supporting district cooling plants, RO desalination facilities, oil and gas installations, commercial towers, and hospital complexes across the GCC. Specifiers in Oman can source the Schneider Electric Harmony XB5 Plastic Pushbutton Station through Seven Star LLC on request, with lead time confirmed at quotation and technical support with selection.

Beyond machine panel doors, the Schneider Electric Harmony XB5 range is also specified as standalone local control stations mounted near pumps, conveyors, and process skids across Oman’s industrial sites, giving operators an emergency stop or start/stop point close to the equipment itself. Seven Star LLC supplies common Harmony XB5 button, switch, and pilot light combinations on request to support panel modification and maintenance work.

Technical Specifications

The table below summarizes the key technical parameters of the Schneider Electric Harmony XB5 Plastic Pushbutton Station relevant to specification and procurement.

Request a Quote for Schneider Electric Harmony XB5 Plastic Pushbutton Station

Facility engineers and procurement teams in Oman and across the GCC can request a formal RFQ for the Schneider Electric Harmony XB5 Plastic Pushbutton Station directly from Seven Star LLC’s instrumentation and low-voltage division. We supply on request with lead time confirmed at quotation, provide the full technical datasheet on request, and offer pre-sales engineering support to confirm compatibility before order placement. With fast quotation turnaround and technical support, Seven Star LLC supports the Schneider Electric Harmony XB5 Plastic Pushbutton Station across its full lifecycle, from specification and quotation through delivery, commissioning assistance, and after-sales spares.
