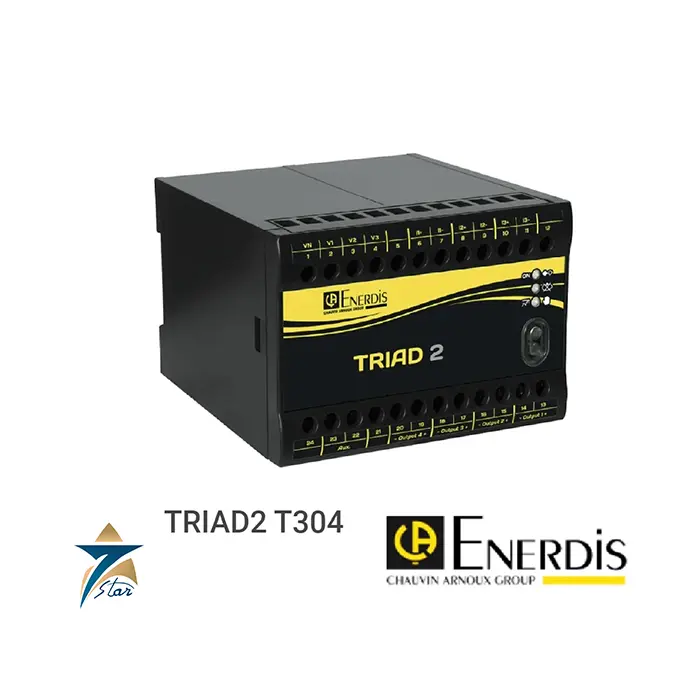

Enerdis TRIAD2 T304 – Programmable Multi-Output Transducer

Name: Enerdis TRIAD2 T304 Programmable Transducer – Datasheet
Brand: Enerdis

Description

Overview

The Enerdis TRIAD2 T304 is a programmable digital transducer from the TRIAD 2 range (now catalogued under Chauvin Arnoux Energy). It converts AC electrical quantities measured on single-phase, split-phase and 3- or 4-wire balanced or unbalanced three-phase networks into standard analogue signals for PLC, SCADA and metering panels.

In the TRIAD 2 order code T3xy, “3” designates the large model, “x” the communication module and “y” the number of analogue outputs. The T304 is therefore the large-model TRIAD 2 with the optical-head communication module (0) and four analogue outputs (4). The outputs are programmed with the TRIADJUST 2 software, either in the factory or by the user, and can be reconfigured later if the network data change.

Key Features

Four programmable analogue outputs in one housing
Measured quantities selectable from I, V, U, F, PF, P, Q, S, cosφ, φ, φU, φV and tanφ
Programmable accuracy class, down to Class 0.1 per IEC 60688
Linear, 2-slope or quadratic transfer curves
Configuration through TRIADJUST 2 via the optical head (T304 communication module 0)
4 kV insulation between circuits
Mounting on DIN rail or panel plate

Technical Specifications

Parameter	Value
Order code	TRIAD2 T304
Model size	Large model (T3xy)
Communication module	Optical head (code 0)
Analogue outputs	4
Output signals (range)	±1 mA, ±5 mA, ±20 mA, ±1 V, ±10 V (programmable)
Voltage inputs	100 to 480 V ph-ph, or 100/√3 to 480/√3 V ph-N
Current inputs	1 A, 5 A and 10 A
Accuracy (programmable)	Class 0.1 / 0.15 / 0.2 / 0.5 / 1
Response time	200 ms in Class 0.2; adjustable down to 50 ms
Operating frequency	50 or 60 Hz
Auxiliary supply (range)	80 to 265 V AC/DC or 19 to 58 V DC
Operating temperature	-10 °C to +55 °C
Protection rating	IP20
Safety	IEC 61010-1, installation category 3, pollution degree 2
Weight	700 g (T3xy)
Mounting	DIN rail or plate mounting (plate kit ACCT 1006 for T3xy)
Voltage input overload (T3)	520 V AC continuous; 800 V AC for 10 s
Current input overload	13 A continuous; 50 × In for 1 s
Input burden	Voltage below 0.2 VA; current below 0.15 VA
Voltage input impedance	400 kΩ
Frequency range	42.5 to 57.5 Hz (50 Hz) / 51 to 69 Hz (60 Hz)
Maximum primary values	1 MV phase-to-phase; 40,000 A
Output overrange / ripple	1.2 × nominal; ±0.2 % peak-to-peak
Storage temperature / humidity	-40 to +70 °C; max 95 % RH at 55 °C
Mechanical protection	IK07 (IEC 62262); indoor use, altitude below 2000 m
Order references for T304	P01380107 and P01380108 (20 mA outputs); P01380123 and P01380124 (10 V outputs)

Applications

Retransmission of voltage, current and power values from switchgear to PLC, DCS and SCADA systems
Generator and feeder monitoring panels in power and desalination plants
Electrical network instrumentation in oil & gas and petrochemical substations
Replacement of older analogue transducers in existing panels

Enerdis TRIAD2 T304 Installation and Wiring Notes

The Enerdis installation manual specifies the TRIAD 2 for CAT III 300 V installations, pollution degree 2, indoor use and altitudes below 2000 m. It clips onto 35 mm DIN rail; screw fixing needs the optional plate kit. The unit has no on/off switch, so the manual requires an external switch or circuit breaker close to the transducer, marked as its disconnecting device, plus fuse or breaker protection on the measurement and auxiliary supply circuits.

On the T3 housing the measurement inputs are on the upper terminal row (1-12) and the auxiliary supply and the four analogue outputs on the lower row (13-24). The auxiliary supply is not polarity-sensitive. Enerdis recommends fuses on the voltage inputs and shorting devices on the CT secondaries. Analogue output and communication cables must be kept apart from power cables, with shielded cable for low-level signals.

Front LEDs show operation, communication activity, wrong phase order, and analogue outputs that are overranged, overloaded or forced. There are no user-replaceable parts.

Enerdis TRIAD2 T304 Ordering Code and Options

The Chauvin Arnoux catalogue lists four order references for the four-output T304: P01380107 and P01380108 with ±20 mA outputs, and P01380123 and P01380124 with ±10 V outputs. Configuration is done with the free TRIADJUST 2 software through the USB optical head. Units that are not factory-configured are delivered without configuration labels; the software prints one label for the input/output settings and one for the wiring diagram, which are fixed to the housing.
