Cooper Crouse-Hinds EFSC215 EFS Explosionproof Pushbutton Control Station

Overview

Cooper Crouse-Hinds EFSC215 is a factory-sealed, explosionproof pushbutton control station engineered for the remote starting and stopping of motors in areas where flammable gases, vapors, combustible dusts, or ignitable fibers may be present. Built into a rugged Feraloy iron alloy enclosure with a single-gang, two-circuit configuration and two 3/4" hubs for through-feed conduit runs, the EFSC215 houses two color-coded operators — green START and red STOP — wired 1NC-1NO to interface directly with magnetic starters and contactors. Because the enclosure is factory sealed, it prevents internal arcing from the pushbutton contacts from igniting a hazardous atmosphere outside the device, which is precisely why plants across the petrochemical, refining, and offshore sectors specify it as the standard local control point for pumps, compressors, conveyors, and mixers operating in classified areas.

Backed by genuine manufacturer documentation, Seven Star LLC proudly supplies the EFSC215 explosionproof pushbutton control station to process plants, refineries, and industrial facilities throughout Oman and the wider GCC. Buyers in Muscat, Sohar, and Salalah can source Cooper Crouse-Hinds control stations through Seven Star LLC with a formal quotation, technical documentation, and lead time confirmed at quotation.

Operating Principle

The Cooper Crouse-Hinds EFSC215 operates on the explosionproof containment principle rather than intrinsic safety: instead of limiting energy at the source, the device is designed to contain any internal arc, spark, or flame produced by the pushbutton contacts within the enclosure long enough for it to cool below the ignition temperature of the surrounding atmosphere before escaping through the machined joint surfaces. The two Feraloy iron alloy housing halves are precision-machined to create a flame path with tolerances tight enough to quench a Class I, Division 1, Group B explosion propagating outward, while the neoprene-gasketed operator boots keep dust and moisture out of the electrical compartment for Class II and Class III service. Each pushbutton operator is factory-sealed at the point of manufacture, so field wiring never breaches the explosionproof integrity of the switch mechanism itself.

In the Cooper Crouse-Hinds EFSC215, the two operators are wired as normally-open and normally-closed contacts feeding a remote magnetic starter coil circuit rather than switching motor load current directly, which keeps the current handled inside the station itself very low. This indirect switching arrangement is what allows a compact, low-cost device to safely control motors of any horsepower rating: the EFSC215 simply energizes or de-energizes the starter coil, and the starter contactor handles the actual motor current at a separate, appropriately rated enclosure. The practical result is a control point that requires no special maintenance access, introduces no moving parts beyond the pushbutton plungers, and can be mounted directly at the equipment being controlled without any derating of the hazardous area classification around it.

Engineering Design of the Cooper Crouse-Hinds EFSC215

Physically, the Cooper Crouse-Hinds EFSC215 measures 6.72 in in length, 5.25 in in height, and 3.5 in in width, and weighs 8.95 lb, making it substantial enough to survive rough industrial handling yet compact enough to mount on a stanchion, wall bracket, or directly to the driven equipment. The cast Feraloy iron alloy body carries an electro-galvanized and aluminum acrylic-painted finish that resists the corrosive, salt-laden atmospheres typical of coastal GCC installations and desalination plants. Two 3/4" hub openings on opposing ends of the through-feed body allow conduit to enter and exit the station in a single straight run, simplifying conduit layout in congested pipe racks and skid packages compared to dead-end single-hub stations.

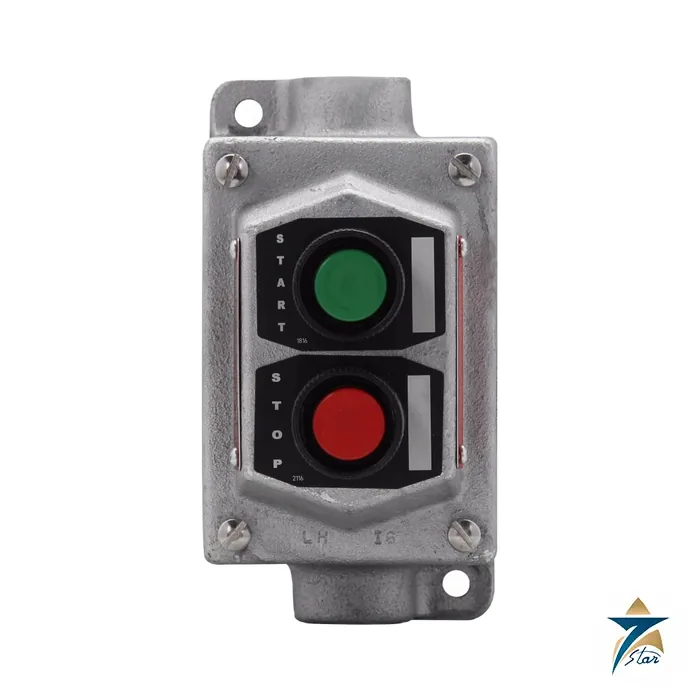

Internally, the single-gang device plate carries the two pushbutton operators mounted vertically, each stamped with its standard STOP/START legend and fitted with a visible target window so operators can confirm actuation from a distance in low-visibility or noisy plant environments. Stainless steel cover screws secure the flame-path joint, and the terminal compartment provides ample wiring space for the 1NC-1NO contact leads to be landed on a barrier strip before routing to the remote starter. The complete assembly carries a 600 Vac rating and an operating temperature range of -50°C to 60°C, so the same catalog number performs identically whether installed in an air-conditioned control building or an exposed rooftop skid under the Gulf sun.

Key Features

The Cooper Crouse-Hinds EFSC215 pushbutton control station delivers a combination of certification, durability, and installation flexibility that makes it a preferred specification across hazardous-area projects in Oman and the GCC:

• Factory-sealed Feraloy iron alloy enclosure rated for Class I Division 1 & 2, Class II Division 1 & 2, and Class III hazardous locations.
• NEMA 3, 7, and 9 rated construction for outdoor, wet, and dust-laden environments across refineries and offshore platforms.
• Two 3/4" through-feed hubs simplify conduit routing without requiring a separate junction box.
• Green START and red STOP color-coded operators with 1NC-1NO contact wiring for direct interface with magnetic starters.
• 600 Vac voltage rating suitable for standard industrial control circuit voltages.
• Operating temperature range of -50°C to 60°C for reliable performance in extreme Gulf heat and cold storage areas alike.
• Electro-galvanized and aluminum acrylic-painted finish resists corrosion in coastal and marine-adjacent installations.
• Single-gang, two-circuit design keeps the footprint compact for tight skid-mounted and pipe-rack installations.

Industrial Applications

The Cooper Crouse-Hinds EFSC215 is deployed wherever operators need a local, hard-wired START/STOP interface for motor-driven equipment in a classified hazardous area. Typical applications include remote control stations for transfer pumps and mixers in petrochemical processing units, conveyor and blower control in grain handling and cement facilities, compressor package control panels on gas gathering skids using the Cooper Crouse-Hinds EFSC215, and emergency-stop circuits for rotating equipment on offshore platforms and FPSO topsides. Its factory-sealed construction also makes it a common choice for pump houses in water and wastewater treatment plants where methane or hydrogen sulfide accumulation is a concern.

Working closely with plant engineers in the region, Seven Star LLC distributes the Cooper Crouse-Hinds EFSC215 to EPC contractors, oilfield service companies, and plant maintenance teams across Oman and the GCC, including the Sohar and Salalah economic zones, Duqm, and the greater Muscat industrial corridor. Facility engineers in these hazardous-area installations depend on Seven Star LLC not only for the genuine explosionproof pushbutton stations themselves, but for the technical support, spare parts availability, and rapid regional delivery that keep classified-area control circuits compliant and operational without waiting on overseas shipments.

Technical Specifications

The table below summarizes the key specifications of the Cooper Crouse-Hinds EFSC215 explosionproof pushbutton control station, the reference model engineers use when specifying the Cooper Crouse-Hinds EFSC215 for classified-area motor control:

Also available: Cooper Crouse-Hinds AR342 Arktite Explosionproof Receptacle

Request a Quote for Cooper Crouse-Hinds EFSC215 EFS Explosionproof Pushbutton Control Station

Facility engineers and procurement teams in Oman and across the GCC can request a formal RFQ for the Cooper Crouse-Hinds EFSC215 explosionproof pushbutton control station directly from Seven Star LLC. With fast quotation turnaround and technical support, Seven Star LLC supplies on request with lead time confirmed at quotation, provides technical datasheets on request, and connects buyers with the instrumentation and hazardous-area equipment division for application support, sizing assistance, and compatible accessory selection. Contact Seven Star LLC today to secure genuine, warrantied Cooper Crouse-Hinds EFSC215 control stations for your classified-area projects in Muscat, Sohar, Salalah, and beyond.
