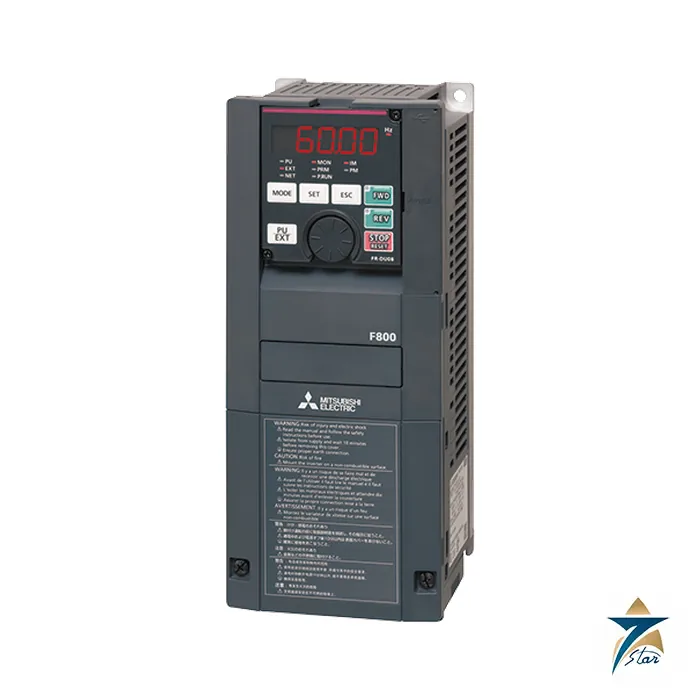

Mitsubishi FR-F800 Energy-Saving Fan and Pump Inverter

Name: Mitsubishi FR-F800 Fan and Pump Inverter – Catalog & Quote
Brand: Mitsubishi
SKU: FR-F800

Description

An energy-saving inverter designed for fans and pumps

The Mitsubishi Electric FR-F800 is a FREQROL inverter aimed at variable-torque loads such as fans, pumps and blowers. The catalogue highlights energy saving (with an energy-saving monitor and optimum excitation control), functions suited to fans and pumps including PID control, security and safety features, environmental compatibility and easy setup, plus an IP55-compatible model. It offers V/F control with optimum excitation, advanced magnetic flux vector control and PM motor control, and runs with motor capacities from 0.75 kW up to 355 kW (SLD) across the 200 V and 400 V classes.

Technical specifications

Parameter	Specification
Voltage classes	Three-phase 200 V (FR-F820) and 400 V (FR-F840); IP55-compatible models also offered
200 V class range	00046 (0.75K) to 04750 (110K); rated current 4.6 A (SLD) up to 475 A
400 V class range	00023 (0.75K) to 06830 (315K); rated current 2.3 A (SLD) up to 683 A
Overload rating	SLD: 110% for 60 s, 120% for 3 s at 40 degrees C; LD: 120% for 60 s, 150% for 3 s at 50 degrees C
Input voltage	200 V class 200 to 240 V (170 to 264 V permitted); 400 V class 380 to 500 V (323 to 550 V permitted); 50/60 Hz plus or minus 5%
Control method	Soft-PWM and high carrier frequency PWM; V/F (optimum excitation), advanced magnetic flux vector, PM motor control
Output frequency	0.2 to 590 Hz (upper limit 400 Hz under vector and PM control)
Frequency accuracy	Analog input within 0.2% of maximum frequency; digital input within 0.01%
Starting torque	120% at 0.5 Hz (advanced magnetic flux vector control, induction motor)
Acceleration/deceleration	0 to 3600 s, linear or S-pattern
Protective structure	Enclosed type IP20 on smaller ratings, open type IP00 on large ratings; IP55 on compatible models
Cooling	Natural on the smallest ratings, otherwise forced air
Mass, 200 V class	1.9 kg (0.75K) up to 74 kg (90K and 110K)

Fan and pump functions

Water supply, cooling water circulation and ventilation are typical applications for this class of drive. Because the inverter can perform PID control of flow, pressure or temperature, an external PID controller is not required for many pump and fan loops. An energy-saving monitor and pulse-train output of output power help to track consumption, and the catalogue lists options such as the FR-XC and FR-HC2 for the effective use of regenerative energy. A PLC function, FR Configurator2 software and a USB host function are described for setup and maintenance.

Selection and documents

Choose the rating from the load type and check the derating conditions in the catalogue: SLD suits light variable-torque duty and LD suits normal duty. Confirm the motor current, supply voltage, cable length, enclosure protection level (IP20 or IP55) and any required communication option before ordering. Send the motor nameplate data and the load profile with your enquiry so the correct model code can be confirmed. Related Mitsubishi drives on this site include the Mitsubishi FR-A840 and the Mitsubishi FR-E800; see all AC drives. The attached official catalogue (150 pages) contains the standard specification tables, dimensions and options. Where the drive will sit in a panel, also allow for the ventilation and clearance shown in the catalogue installation notes.

Datasheets & Documents

Catalog Mitsubishi FR-F800 inverter catalogue (150 pages) Download
