Mitsubishi FX5S-30MT/ES MELSEC iQ-F Compact PLC

Name: Mitsubishi FX5S-30MT/ES iQ-F Compact PLC – Catalog & Quote
Brand: Mitsubishi
SKU: FX5S-30MT/ES

Description

A compact iQ-F controller for small machines

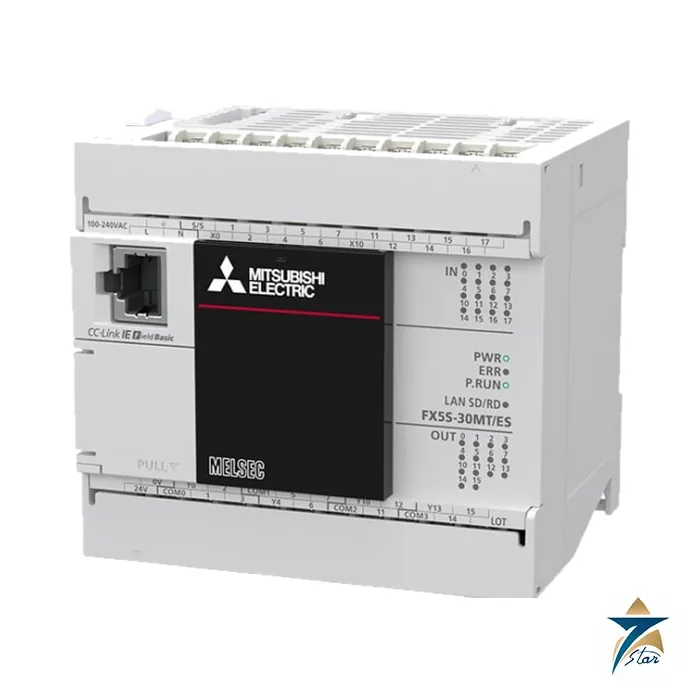

The Mitsubishi Electric FX5S is the smallest CPU of the MELSEC iQ-F family. The photographed FX5S-30MT/ES has 16 DC inputs and 14 transistor outputs on a single AC-powered unit, with the power supply, program memory and high-speed functions built in. It targets small standalone machines that need a PLC with Ethernet, high-speed counting and pulse output but not a large I/O count.

Programs are written in ladder, structured text or function block diagram with GX Works3, with 48 k steps of program memory and basic instruction times of 84 to 100 ns. Four high-speed input channels reach 100 kHz, and the unit can output pulse trains on up to four axes for stepper or servo drives.

Technical specifications

Parameter	Specification
Series	MELSEC iQ-F FX5S, the compact entry CPU of the iQ-F family (built-in power supply, I/O and program memory)
CPU models	FX5S-30M (16 in / 14 out), FX5S-40M (24 in / 16 out), FX5S-60M (36 in / 24 out); R relay, T1 transistor sink (/ES) and T2 transistor source (/ESS) outputs
Control scale	30 to 60 I/O points; up to 60 points including expansion
Power supply	100 to 240 V AC (-15 / +10 percent), 50/60 Hz; power consumption 28 W (30M), 30 W (40M), 33 W (60M); fuse 250 V 3.15 A
24 V DC service supply	400 mA for input devices
Program capacity	48 k steps (96 kbyte flash)
Memory	Device/label memory 120 kbyte; data memory 5 Mbyte; SD/SDHC card up to 16 GB; flash write count up to 20,000
Instruction speed	LD 84 ns; MOV 100 ns
Programming	Ladder (LD), structured text (ST), FBD/LD; function blocks and labels; 32 program executions
Inputs	Sink/source, 24 V DC, 5.1 mA (X0-X7) / 4.0 mA; X0, X1, X3, X4 up to 100 kHz, X2, X5-X7 up to 10 kHz; non-removable M3 terminal block
Positioning / high-speed	Up to 4 axes of pulse train at 100 kpps; high-speed counter up to 8 channels
Ports	Built-in Ethernet and USB Mini-B; RS-232 / RS-485 / Ethernet expansion boards and adapters, max 2 boards and 6 adapters
Clock	+/-45 s per month at 25 C; retained about 15 days by capacitor
Environment	0 to 55 C operating; -25 to 75 C storage; 5 to 95 percent RH; altitude 0-2000 m; inside a control panel
Dimensions (H x D)	90 mm high x 79 mm deep
Width / mass	30M: 100 mm, approx. 0.45 kg; 40M: 130 mm, approx. 0.55 kg; 60M: 175 mm, approx. 0.65 kg

Model selection and expansion

Choose the point count first: 30 points (16 in / 14 out), 40 points (24 in / 16 out) or 60 points (36 in / 24 out). Then choose the output type: relay (R) for mixed loads, or transistor sink (T1, models ending /ES) or source (T2, /ESS) for fast switching and pulse train outputs. The catalogue shows relay and transistor versions of each size.

Functions are added through FX5 expansion boards on the front (an SD memory card module and one communication board, two in total) and expansion adapters on the left side (up to 2 communication adapters and 4 analog adapters, six in total). Note that when expansion boards are used the number of adapters is restricted.

Confirm before ordering: output type and sink or source wiring, AC supply, the points needed including expansion, positioning axes, communication adapters, and the engineering software. For larger systems with more I/O, compare the Mitsubishi FX5U; a touch terminal such as the GT2510-VTBA is a typical partner, and the PLC and I/O category lists related controllers.

FX5S sizes compared

Model	I/O points	Width	Mass	Power consumption
FX5S-30M	16 in / 14 out	100 mm	0.45 kg	28 W
FX5S-40M	24 in / 16 out	130 mm	0.55 kg	30 W
FX5S-60M	36 in / 24 out	175 mm	0.65 kg	33 W

Documents and quotation

The attached file is an excerpt of the Mitsubishi Electric MELSEC iQ-F catalogue L(NA)08428ENG-G with the FX5S overview and model selection, performance, general, power and input specifications, and the external dimensions. For a quotation, send the full model code, quantity and any boards or adapters to Seven Star LLC, an independent supplier in Muscat.
