Brand: Mitsubishi

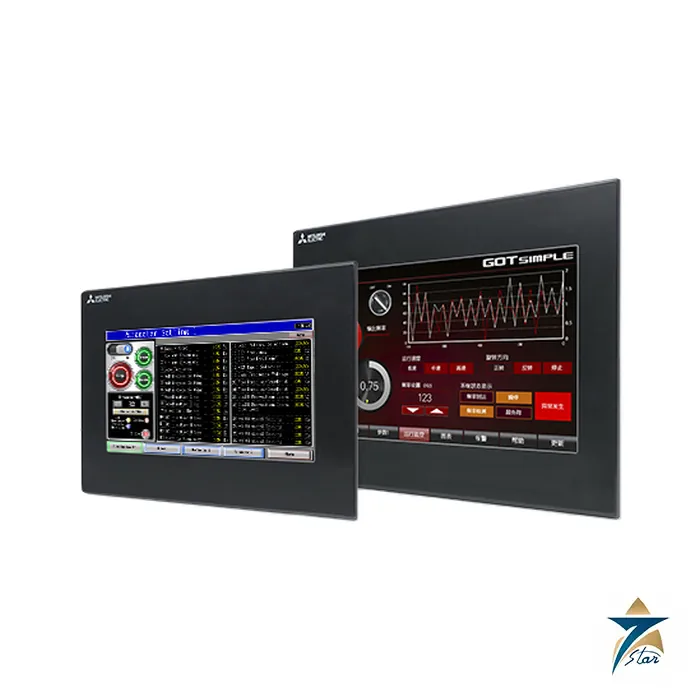

Mitsubishi GS2110-WTBD-N 10 in GOT SIMPLE HMI
Description
A 10 inch widescreen HMI for simple machine operation
The Mitsubishi Electric GS2110-WTBD-N is the 10 inch widescreen model of the GOT SIMPLE GS21 series. Mitsubishi Electric positions it as a simple terminal for simple applications: a WVGA 800 x 480 colour screen, Ethernet, serial ports and a 24 V DC supply, in a panel-mount housing designed for control cabinets.
Text is drawn with Windows and outline fonts with anti-aliasing, so labels and alarm messages stay readable at small sizes. The RS-422/485 port is a common connector for both standards, which lets temperature controllers and MODBUS devices be connected, and the optional VNC server function allows a technician to monitor the screen remotely from an office.
Technical specifications
| Parameter | Specification |
|---|---|
| Series | GOT SIMPLE GS21, simple model for simple applications |
| Screen | 10 inch widescreen TFT colour LCD (GS2107-WTBD-N is the 7 inch sibling) |
| Resolution / colours | WVGA 800 x 480 dots, 65,536 colours; white LED backlight |
| Memory | ROM 32 MB (15 MB user memory); RAM 128 MB (64 MB user memory on the upgraded model, which needs GT Works3 version 1.320J or later) |
| Built-in interfaces | Ethernet (1 port), RS-232, RS-422/485 (common connector for RS-422 and RS-485), USB device (Mini-B, USB 1.1 full speed), SD memory card interface |
| Power supply | 24 V DC (+10 / -15 percent), ripple 200 mV or less |
| Power consumption | 7.6 W or less under maximum load (317 mA at 24 V); 3.8 W or less with backlight off |
| Inrush current / power failure | 17 A or less (6 ms, 25 C, maximum load); instantaneous power failure within 5 ms |
| Insulation / withstand | 500 V DC, 10 megohm or more; 350 V AC for 1 minute across power terminals and earth |
| Operating temperature / humidity | 0 to 50 C; storage -20 to 60 C; 10 to 90 percent RH non-condensing |
| Vibration / shock | IEC 61131-2; 3.5 mm intermittent, 1.75 mm continuous; 147 m/s2 shock |
| Panel cut dimensions (W x H) | 258 x 200 mm (+2 / 0), panel thickness 1.6 to 4 mm; 10 mm minimum clearance for fittings |
| Remote monitoring | VNC server function with the GT25-VNCSKEY- licence, one licence per GOT |
| Software | GT Works3 (SW1DND-GTWK3-EC); iQ Works includes it |
Choosing between the GS21 and the GOT2000 range
The GS21 is a cost-efficient step below the GOT2000 line. It suits single-machine screens, parameter entry and basic status and alarm display. If an application needs multi-touch gestures, larger screens, extension units or higher memory, the GOT2000 GT27 series is the reference; see for instance the 12.1 inch model in the HMI and displays category.
The catalogue lists the screen configuration software MELSOFT GT Works3 as a separate product, and SD memory cards in 2 GB to 16 GB sizes as options. The Process Remote Monitoring application packages are also listed for use with the series.
Confirm before ordering: screen size (10 or 7 inch), the controller and protocol to be connected, the panel cut-out and thickness, whether the memory upgrade or the VNC licence is needed, and the version of GT Works3 on the engineering PC.
GS21 models compared
| Model | Screen | Resolution | Panel cut W x H (mm) | Power under max load |
|---|---|---|---|---|
| GS2110-WTBD-N | 10 in widescreen | WVGA 800 x 480 | 258 x 200 | 7.6 W |
| GS2107-WTBD-N | 7 in widescreen | WVGA 800 x 480 | 191 x 137 | 6.5 W |
Documents and quotation
The attached file is an excerpt of the Mitsubishi Electric GOT SIMPLE GS21 catalogue L(NA)08649ENG-D: the series overview, the specification and hardware pages, the specifications and cut-out drawings, and the product list with software and options. For a quotation, send the model, quantity and any software or accessory needs to Seven Star LLC, an independent supplier in Muscat.
Datasheets & Documents
- Catalog Mitsubishi Electric GOT SIMPLE GS21 catalogue L(NA)08649ENG-D, excerpt (selected pages) Download
Reviews (0)
About brand
Laboratories that run an NSX-2100 trace sulfur, nitrogen or chlorine analyzer usually know it as a Mitsubishi instrument. The nameplate reads Mitsubishi Chemical Analytech, a name later changed to Nittoseiko Analytech. Seven Star LLC lists the TN6RPC gas tube dryer set for this analyzer and sources NSX-2100 consumables for refinery and fuel-testing laboratories in Oman and the GCC.
The Mitsubishi listing also includes Mitsubishi Electric factory automation and drive products: MR-J3, MR-J5 and MR-JE servo amplifiers, GOT2000 and GOT SIMPLE HMI touch panels, FR-A800, FR-E800, FR-F800 and FR-CS80 FREQROL inverters, MELSEC iQ-F PLC modules, MELSEC A-series input and temperature modules with a memory cassette, and S-T magnetic contactors and TH-T thermal overload relays.
Mitsubishi NSX-2100 parts
The NSX-2100 was built with a horizontal or a vertical furnace, and one furnace can serve several detectors. The dryer set removes water from the combustion gas before it reaches the detector. Like the connection kits, it is a consumable, and its part code changes with the analyzer variant.
Ordering NSX-2100 consumables: what we need
Send the part code, for example TN6RPC, together with the exact analyzer model shown on the nameplate (the letters after NSX-2100 indicate furnace type and detectors), the serial number and the detectors fitted. Some original part codes have been replaced by newer ones, so we check each code against the manufacturer's current parts list before quoting.
Browse Mitsubishi products by category: Gas Analyzer Accessories.
Related products
Frequently Asked Questions
What display does the GS2110-WTBD-N have?
A 10 inch widescreen TFT colour LCD, WVGA 800 x 480 dots, with 65,536 colours.
What power supply does it need?
24 V DC (+10 / -15 percent); power consumption is 7.6 W or less under maximum load.
Which communication ports are built in?
Ethernet, RS-232, RS-422/485, USB device (Mini-B) and an SD memory card interface.
What is the panel cut-out size?
258 x 200 mm, for panel thickness between 1.6 and 4 mm.
Can it be monitored remotely?
Yes, with the VNC server function, which needs the GT25-VNCSKEY- licence for each GOT.
