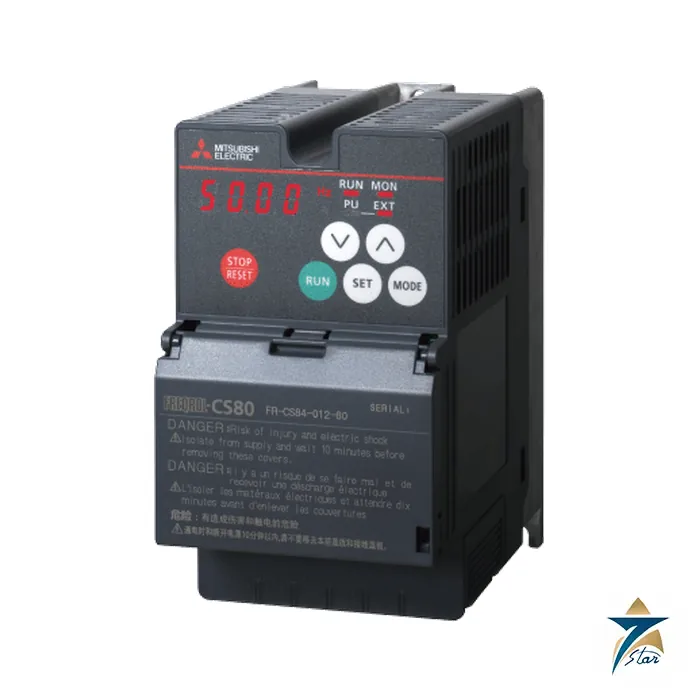

Mitsubishi FR-CS80 Compact and Smart FREQROL Inverter

Name: Mitsubishi FR-CS80 Compact Inverter 0.4-15 kW – Catalog
Brand: Mitsubishi
SKU: FR-CS80

Description

A compact and smart inverter for small machines, pumps and fans

The Mitsubishi Electric FR-CS80 is a compact FREQROL inverter that the catalogue describes as among the smallest in its class: the FR-CS84-012-60 measures 128 x 68 x 117.9 mm, a volume reduction to 57% of the conventional model. Side-by-side installation is possible at ambient temperatures up to 40 degrees C, so three of the smallest units fit in the space of two conventional inverters, and a DIN rail attachment option is available for most ratings. The standard model includes an RS-485 interface with the Mitsubishi inverter protocol and MODBUS RTU, and it can be set up with the FR Configurator2 software. Typical uses for a drive of this size include small conveyors, fans, pumps, mixers and packaging machines where panel space is limited and a simple, economical speed controller is needed.

Technical specifications

Parameter	Specification
Models	FR-CS84 three-phase 400 V (012 to 295); FR-CS82S single-phase 200 V (025 to 100)
Motor capacity, 400 V class	0.4 kW (012) up to 15 kW (295)
Rated current, 400 V class	1.2 A (012) up to 29.5 A (295); reduced at 50 degrees C
Motor capacity, 200 V single-phase	0.4 kW (025) to 2.2 kW (100); rated current 2.5 A to 10.0 A
Overload rating	150% for 60 s, 200% for 0.5 s (inverse-time characteristics)
Input voltage	400 V class: 380 to 480 V, 50/60 Hz (325 to 528 V permitted); single-phase 200 V class: 200 to 240 V (170 to 264 V permitted)
Control method	Soft-PWM and high carrier frequency PWM; V/F, general-purpose magnetic flux vector, optimum excitation control
Output frequency	0.2 to 400 Hz
Starting torque	150% or more at 1 Hz with general-purpose magnetic flux vector control and slip compensation
Frequency accuracy	Analog input within plus or minus 1% of maximum frequency; digital input 0.01% or less
Acceleration/deceleration	0.1 to 3600 s, linear or S-pattern
Protective structure and cooling	IP20 open type; natural cooling on smaller ratings, forced air on larger ones
Ambient temperature	-10 to +40 degrees C; 40 to 50 degrees C with rated current reduced by 15%
Altitude and humidity	2500 m or less (derate above 1000 m); 95% RH non-condensing with coated boards
Approx. mass	0.6 kg (smallest) up to 3.5 kg (230 and 295)

Setup and options

The catalogue lists a parameter unit (FR-PU07), the FR Configurator2 setup software, connection to Mitsubishi GOT operation terminals, AC reactors (FR-HAL), a DIN rail attachment (FR-UDA series) and a brake unit that can be used with the FR-CS84-050-60 or higher capacity inverter. The catalogue also gives the full parameter list and protective function table, which are useful when you plan to replace an older inverter or commission several units from one parameter set.

Selection and documents

Select the inverter from motor kW and rated current, then confirm the supply voltage, the enclosure temperature and whether the circuit-board coating suffix (-60) is needed for the environment. Related Mitsubishi drives on this site include the Mitsubishi FR-A840 and the Mitsubishi FR-F800; see all AC drives. Send the motor nameplate data and the ambient temperature of the panel with your enquiry so the correct model code and any derating can be confirmed. The attached catalogue (40 pages) contains the full specification, dimension and option tables.

Datasheets & Documents

Catalog Mitsubishi FR-CS80 inverter catalogue (40 pages) Download
