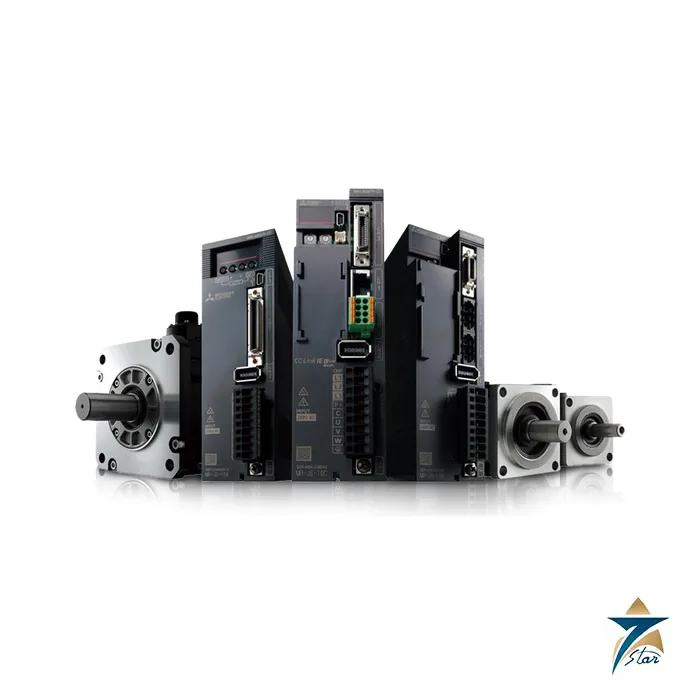

Mitsubishi MR-JE-A General-Purpose Servo Amplifier

Name: Mitsubishi MR-JE-A Servo Amplifier 0.1-3 kW
Brand: Mitsubishi
SKU: MR-JE-A

Description

A pulse-train servo amplifier for general machine axes

The Mitsubishi Electric MR-JE-A is the general-purpose interface amplifier of the MELSERVO-JE series. It takes a pulse train or an analog voltage command, so it can be driven by almost any PLC positioning output, CNC or motion card, and also by the Mitsubishi FX5 and iQ-R positioning modules shown in the catalogue. The 200 V class covers 0.1 kW to 3 kW and is paired with the HG-KN (0.1 to 0.75 kW) and HG-SN (0.5 to 3 kW) servo motors.

It positions with 131072 pulses per revolution from a 17-bit encoder, quotes a speed frequency response of 2.0 kHz, and runs in position, speed or torque control. A built-in point table or program method allows simple positioning without an external positioning module, and RS-422 or RS-485 communication links up to 32 axes for parameter and operation control.

Technical specifications

Parameter	Specification
Series / interface	MELSERVO-JE MR-JE-A, general-purpose interface (pulse train, analog voltage, RS-422/RS-485)
Rated output sizes	10A 0.1 kW, 20A 0.2 kW, 40A 0.4 kW, 70A 0.75 kW, 100A 1 kW, 200A 2 kW, 300A 3 kW
Output rated current (3-phase 170 V AC)	1.1 A, 1.5 A, 2.8 A, 5.8 A, 6.0 A, 11.0 A, 11.0 A in the order of the sizes above
Main circuit supply	3-phase or 1-phase 200-240 V AC, 50/60 Hz up to the 2 kW size; 3-phase only for 3 kW; permissible 170-264 V AC
Main circuit rated current (3-phase; 1-phase in brackets)	0.9 (1.5) A, 1.5 (2.5) A, 2.6 (4.5) A, 3.8 (6.5) A, 5.0 (10.5) A, 10.5 (15.8) A, 14.0 A
Single-phase operation	Use at 75 % or less of the effective load ratio when 1-phase 200-240 V AC is used
Interface power supply	24 V DC +/-10 %, 0.3 A capacity
Control method	Sine-wave PWM control, current control method
Built-in regenerative resistor	Permissible power 10 W (40A), 20 W (70A and 100A), 100 W (200A and 300A); none on 10A and 20A
Dynamic brake	Built in
Maximum input pulse frequency	4 Mpulses/s (differential receiver); 200 kpulses/s (open collector)
Positioning feedback	Encoder resolution 131072 pulses/rev (17-bit)
Speed control range	Analog speed command 1:2000; internal speed command 1:5000
Speed frequency response	2.0 kHz (catalogue statement)
Control modes	Position, speed and torque control; positioning mode with point table and program methods
Communication	USB for MR Configurator2; RS-422/RS-485 for 1:n control of up to 32 axes; MODBUS RTU
Other interfaces	A/B/Z-phase encoder pulse output; 2-channel analog monitor; sink or source wiring
Servo functions	Advanced vibration suppression control II, adaptive filter II, robust filter, auto tuning, one-touch tuning, tough drive, drive recorder, machine diagnosis, power monitoring, lost motion compensation
Protection	Overcurrent, regenerative overvoltage, overload, motor overheat, encoder error, regenerative error, undervoltage, instantaneous power failure, overspeed, error excessive
Structure	Open type IP20, natural or forced cooling by size; close mounting possible at 0 to 45 C or 75 % load
Environment	0 to 55 C operating, -20 to 65 C storage; 5 to 90 %RH; indoors without corrosive gas; up to 2000 m; vibration 5.9 m/s2 at 10-55 Hz

Matching the amplifier to the motor and the controller

Each amplifier size has defined motor partners: the 10A, 20A and 40A amplifiers pair with HG-KN13, HG-KN23 and HG-KN43; the 70A pairs with HG-KN73 or HG-SN52; the 100A, 200A and 300A pair with HG-SN102, HG-SN152 or HG-SN202, and HG-SN302. The B in a motor name means an electromagnetic brake and J means an oil seal fitted. A recommended load-to-motor inertia ratio of 15 times or less applies to the HG-KN motors.

Wiring follows the supply: with a 1-phase supply on the sizes up to 1 kW, connect to L1 and L3 and leave L2 empty; for 2 kW the one-phase connections are different, so follow the catalogue connection example, which also warns about differences from the older MR-E Super amplifiers. The 0.2 kW and smaller amplifiers have no built-in regenerative resistor, so a regenerative option is added for frequent starts or large inertia.

Confirm before ordering: the exact amplifier size and motor model, 1-phase or 3-phase supply, the controller output type (differential or open collector), the regenerative option, and cables. The pulse input suits the Mitsubishi FX5U CPU positioning outputs, and the MR-J3-100BS4 remains listed for older systems. More drives are in the servo drives category.

MR-JE-A sizes and motor combinations

Amplifier	Rated output	Output current	Mass	Servo motor
MR-JE-10A	0.1 kW	1.1 A	0.8 kg	HG-KN13(B)J
MR-JE-20A	0.2 kW	1.5 A	0.8 kg	HG-KN23(B)J
MR-JE-40A	0.4 kW	2.8 A	0.8 kg	HG-KN43(B)J
MR-JE-70A	0.75 kW	5.8 A	1.5 kg	HG-KN73(B)J or HG-SN52(B)J
MR-JE-100A	1 kW	6.0 A	1.5 kg	HG-SN102(B)J
MR-JE-200A	2 kW	11.0 A	2.1 kg	HG-SN152(B)J, HG-SN202(B)J
MR-JE-300A	3 kW	11.0 A	2.1 kg	HG-SN302(B)J

How the Mitsubishi MR-JE-A works

The amplifier takes a pulse train or an analog voltage as the command. It compares the command with the encoder feedback and drives the servo motor to follow. It runs in position, speed or torque control.

Where the MR-JE-A is used

General machine axes
Packaging machines
Conveyor positioning
Feeders
Small automation machines

Selection checklist for the MR-JE-A

Amplifier size
Servo motor series
Command type
Control mode
Supply phases
Regenerative resistor need
Communication need
Positioning controller

Installation, commissioning and maintenance notes for the MR-JE-A

Mount the amplifier in the cabinet and wire the supply, the motor and the encoder. Set the parameters and run a test move. Check the wiring and the cooling at regular intervals.

Requesting a quotation for the Mitsubishi MR-JE-A

Please send the motor size, the supply voltage and the command type needed. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

MR-JE-A amplifier type

It is a general-purpose servo amplifier.

MR-JE-A maker

It is made by Mitsubishi Electric.

MR-JE-A series

It belongs to the MELSERVO-JE series.

MR-JE-A interface

It is the general-purpose interface model.

MR-JE-A command types

It takes a pulse train or an analog voltage command.

MR-JE-A controllers

It works with PLC positioning outputs, CNC and motion cards.

MR-JE-A Mitsubishi modules

It also works with the FX5 and iQ-R positioning modules.

MR-JE-A voltage class

It is a 200 V class amplifier.

MR-JE-A power range

The range covers 0.1 kW to 3 kW.

MR-JE-A sizes

Sizes are 10A, 20A, 40A, 70A, 100A, 200A and 300A.

MR-JE-A small motors

The HG-KN motors cover 0.1 to 0.75 kW.

MR-JE-A larger motors

The HG-SN motors cover 0.5 to 3 kW.

MR-JE-A encoder

It uses a 17-bit encoder.

MR-JE-A resolution

The resolution is 131072 pulses per revolution.

MR-JE-A control modes

Modes are position, speed and torque control.

MR-JE-A point table

A built-in point table allows simple positioning.

MR-JE-A program method

A built-in program method is also available.

MR-JE-A no module

No external positioning module is needed for simple moves.

MR-JE-A communication

RS-422 or RS-485 links up to 32 axes.

MR-JE-A supply

The main supply is 200 to 240 V AC at 50/60 Hz.

MR-JE-A phases

One-phase supply works up to the 2 kW size.

MR-JE-A 3 kW supply

The 3 kW size needs a 3-phase supply.

MR-JE-A interface supply

The interface supply is 24 V DC.

MR-JE-A regeneration

A regenerative resistor is built in from the 40A size.

MR-JE-A dynamic brake

A dynamic brake is built in.

MR-JE-A input pulses

The maximum input is 4 Mpulses per second on a differential receiver.

MR-JE-A speed range

The analog speed command range is 1:2000.

Servo records for the MR-JE-A

Record the parameter settings, the motor model and the date of each change.

Choosing the right MR-JE-A size

Choose the size from the motor rating and the supply.

Documents and quotation

The attached file is an excerpt of Mitsubishi Electric catalogue L(NA)03086-H with the MELSERVO-JE overview, the model designation, the MR-JE-A specification and wiring pages, and the HG-KN servo motor specification. Send the amplifier model, motor model, supply and quantity to Seven Star LLC, an independent supplier in Muscat, for a quotation.

Datasheets & Documents

Catalog Mitsubishi Electric MELSERVO-JE catalogue L(NA)03086-H, MR-JE-A excerpt (selected pages) Download
