ABB ACS580-01-05A6-4 General Purpose AC Drive
ABB ACS580-01-05A6-4: motor control in a compact wall-mounted drive

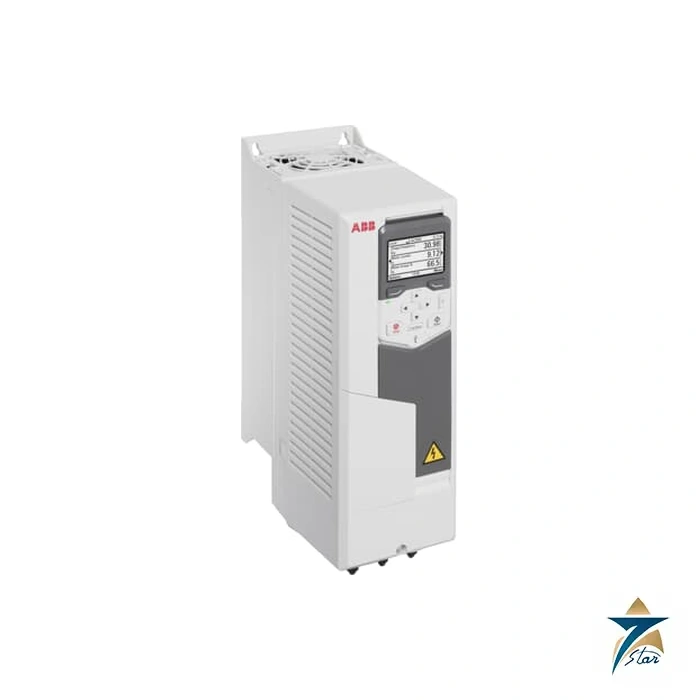

The ABB ACS580-01-05A6-4 is a general-purpose variable frequency drive for controlling AC motors in industrial machinery and process equipment. This model uses the R0 frame and the standard IP21 enclosure. Its IEC nominal motor-power rating is 2.2 kW at a 380–415 V three-phase supply, while its heavy-duty rating is 1.5 kW. That distinction matters when the driven load needs repeated overload rather than steady operation.
For a replacement or an equipment specification, match the complete type code, motor nameplate current and enclosure requirement. The ACS580-01-05A6-4+B056 is a separate factory IP55 version; it should not be treated as the same enclosure or as a field conversion kit.
Selecting the appropriate duty rating
A motor-power figure alone does not establish the correct drive size. At the IEC 400 V rating, this model provides 5.6 A nominal output current. The light-duty rating is 5.3 A for a typical 2.2 kW motor, with 110% overload for one minute in ten. Heavy-duty service uses 4.0 A and a typical 1.5 kW motor, with 150% overload for one minute in ten. Compare those conditions with the motor and the machine’s actual load cycle.
Typical selection work includes pumps, fans, conveyors and other motor-driven equipment where adjustable speed is useful. For high starting torque, frequent acceleration or a demanding mechanical load, review the overload requirement before choosing by kW. The driven machine, motor and installation remain part of the engineering assessment.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | ABB / ACS580-01-05A6-4 |
| Manufacturer product ID | 3AUA0000190555 |
| Drive construction | Wall-mounted general-purpose AC drive |
| Frame / standard enclosure | R0 / IP21, UL Type 1 |
| IEC nominal rating, 380–415 V | 5.6 A; typical motor power 2.2 kW |
| IEC light-duty rating, 380–415 V | 5.3 A; 2.2 kW; 110% overload for 1 minute in 10 |
| IEC heavy-duty rating, 380–415 V | 4.0 A; 1.5 kW; 150% overload for 1 minute in 10 |
| Maximum output current | 7.2 A, available for 2 seconds at start |
| Published NEMA light-duty rating, 440–480 V | 4.8 A; 3 hp |
| Published NEMA heavy-duty rating, 440–480 V | 3.4 A; 2 hp |
| Factory IP55 alternative | Separate +B056 configured model |
The IEC and NEMA values above refer to different voltage and duty conditions. They should not be combined into a single unconditional rating. Installation clearances, protective devices, cabling and any ambient or altitude derating must follow the applicable hardware manual.
Installation and enclosure choice
The standard IP21 drive belongs in an installation suited to that protection level. Enclosure selection is especially relevant where dust, water or washdown could reach the equipment. Use the installation assessment to decide whether the standard unit, a suitable cabinet or a separately specified protected version is required.
Communication adapters, external control-power options and other accessories must be identified in the equipment list. A family brochure may show options that are not part of this exact order code. For an existing system, provide the installed drive label and the control interface so the requested replacement can be checked against the application.
Documentation and quotation enquiries
The official ABB product record identifies the exact model. The associated hardware manual provides the duty-rating tables and installation conditions. Browse our AC Drives for related equipment.
For a quotation enquiry in Oman or the GCC, send Seven Star LLC the complete model code, quantity, motor voltage and current, required duty cycle and enclosure requirement. Include the present drive’s nameplate and required communication options when replacing an installed unit.
- Manual ABB ACS580-01 Hardware Manual — English, Revision E Download
