Invertek Drives Optidrive E3 IP66 Washdown VFD
Description
Washdown-ready drive in a sealed IP66 enclosure

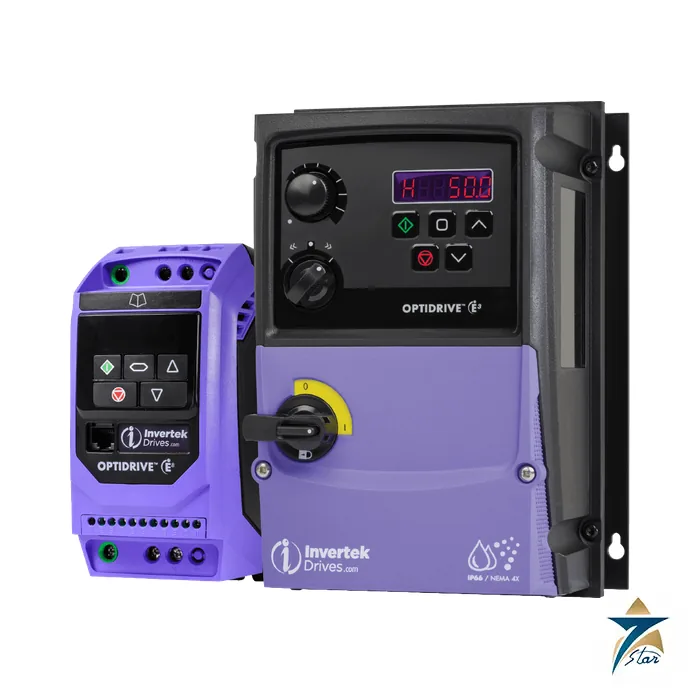

The Invertek Drives Optidrive E3 IP66 is the enclosed version of the Optidrive E3 family. It carries the electronics in a sealed polycarbonate and ABS enclosure rated IP66 and NEMA 4X, so it can be mounted on the machine or on a wall, close to the motor, without a cabinet. Ratings go up to 22 kW. The switched version adds a lockable mains isolator, a Run Reverse, Off and Run Forward selector, and a speed potentiometer on the front, which makes simple local control possible without wiring external pushbuttons.
The data below is taken from the Invertek Drives Optidrive E3 IP66 (indoor) user guide, which also covers the IP20 versions.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Invertek Drives Ltd, Welshpool, United Kingdom |
| Series and enclosure | Optidrive E3, IP66 / NEMA 4X |
| Power range | Up to 22 kW |
| Enclosure material | Polycarbonate and ABS, with coated heatsink |
| Versions | Non-switched, and switched with isolator, Run Rev/Off/Run Fwd selector and potentiometer |
| Model code | ODE-3-xxxxxx-xxxx#, where # is X for non-switched or Y for switched (IP66) |
| Example rating | ODE-3-340240: 380-480 V three-phase, 11 kW, 24 A |
| Communication | Two RJ45 ports |
| Operating temperature, enclosed | Minus 10 to plus 40 degrees C (see the user guide for the version you order) |
| Motor control | Sensorless vector for induction motors; permanent magnet, brushless DC and synchronous reluctance supported |
| Application macros | Industrial, pump and fan |
| Configuration tool | Optistick Smart |
Typical applications
Because there is no cabinet to buy, build or ventilate, the enclosed drive is attractive for distributed machinery such as conveyors, mixers, pumps and fans in food, beverage, water treatment and packaging plants. The IP66 rating covers dust and strong water jets, and the coated heatsink is intended for harsher surroundings. The user guide still limits the ambient temperature, so direct sun and hot rooms should be checked against the figures above.
Wiring and control
The guide describes the power and control terminals and the installation requirements for each frame size. Control inputs can be configured for local or remote operation, so the same drive can be run from the on-board selector in service mode and from a PLC or a field signal in production. The application macros preload typical settings and shorten commissioning time. As with all drives, motor cable length and screening affect EMC performance and should follow the guide.
In hot climates the ambient temperature around an enclosed drive matters as much as the rating on the nameplate. An enclosed drive left in direct sunshine can exceed its permitted ambient temperature even when the room is cool, so a shaded mounting position or a sun shield is sensible. The motor, the cable and the supply protection should be selected to suit the full-load current of the drive that is ordered.
Documents and quotation
The attached PDF is the official Invertek Drives user guide. Please send the supply voltage, motor rating, switched or non-switched preference and the installation environment when requesting a quotation. More drives are listed in AC Drives.
Datasheets & Documents
- User Guide Invertek Drives Optidrive E3 IP66 indoor user guide V2.00 Download
Reviews (0)
About brand
Invertek Drives designs and manufactures variable frequency drives at its global headquarters in Welshpool, Wales, in the United Kingdom. The company is part of Sumitomo Heavy Industries and holds ISO 9001 certification. Seven Star LLC lists selected Optidrive models with links to the official Invertek user guides.
Optidrive families
The Optidrive E3 is a compact general-purpose drive in IP20 and IP66 versions, with a variant for single-phase output motors. The Optidrive P2 is an industrial vector drive up to 250 kW, and the Optidrive Eco range is aimed at HVAC and pumping applications with built-in building and pump control functions.
Features such as sensorless vector control, Safe Torque Off, built-in fieldbus communication and low-harmonic design vary by family, so each product page lists the points that apply to that model and the limits of its environment.
Documents and quotation
Every Invertek page on this site links to the user guide with ratings, model codes and environmental limits. Send the supply voltage, motor data and enclosure rating with your request, and Seven Star LLC will prepare a quotation from Muscat, Oman.
