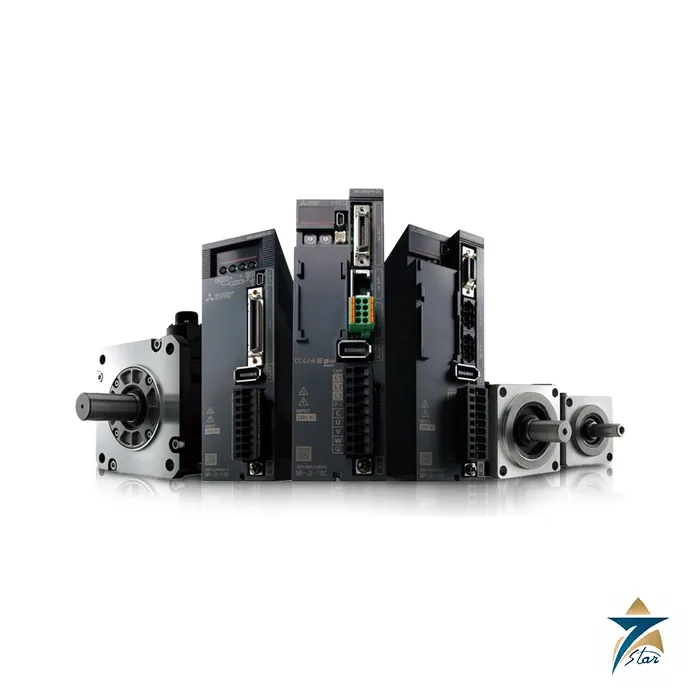

Mitsubishi MR-JE-B SSCNET III/H Servo Amplifier
Description
A fibre-optic motion network servo amplifier for multi-axis machines
The Mitsubishi Electric MR-JE-B connects a MELSERVO-JE axis to a motion controller over SSCNET III/H, the optical servo network of the Mitsubishi motion range. Instead of pulse and analog wiring, each amplifier is daisy-chained with a light-weight fibre cable, which reduces wiring on machines with many axes and keeps noise from the power cable out of the position command.
The catalogue quotes a 150 Mbps full-duplex link and a command cycle of 0.444 ms, with synchronous communication for applications such as printing, food processing and packaging where axes must stay in step. The amplifier is compatible with Simple Motion modules that provide mark detection, electronic cam and advanced synchronous control.
Technical specifications
| Parameter | Specification |
|---|---|
| Series / network | MELSERVO-JE MR-JE-B, SSCNET III/H optical servo network interface |
| Capacity codes | 10B 0.1 kW, 20B 0.2 kW, 40B 0.4 kW, 70B 0.75 kW, 100B 1 kW, 200B 2 kW, 300B 3 kW |
| Output rated current (170 V AC, 3-phase) | 1.1, 1.5, 2.8, 5.8, 6.0, 11.0 and 11.0 A in size order |
| Main supply | 3-phase 200-240 V AC; 1-phase 200-240 V AC allowed with derating to 75 percent or less of effective load ratio; permissible 170-264 V AC, 50/60 Hz |
| Main circuit current 3-phase (1-phase) | 0.9 (1.5), 1.5 (2.5), 2.6 (4.5), 3.8 (6.5), 5.0 (10.5), 10.5 (15.8) and 14.0 A (3-phase only) |
| Interface supply | 24 V DC +/-10 percent, 0.3 A |
| Command communication cycle | 0.444 ms or 0.888 ms (set by the servo system controller and axis count) |
| Network speed | SSCNET III/H, 150 Mbps full duplex (as printed in the catalogue), optical fibre cable |
| Axes per line | Up to 16 axes, selected with the axis selection rotary switch SW1; final axis CN1B needs a cap |
| Regenerative resistor (built in) | None on 10B/20B; 10 W (40B), 20 W (70B, 100B), 100 W (200B, 300B) |
| Dynamic brake | Built in |
| Absolute position | Absolute system supported with optional battery MR-BAT6V1SET-A or battery case MR-BT6VCASE with MR-BAT6V1 |
| Protection | Overcurrent, regenerative overvoltage, overload, motor overheat, encoder, regeneration, undervoltage, power failure, overspeed, error excessive, hot-line forced stop |
| Structure / cooling | IP20 open; natural cooling up to 100B, forced cooling for 200B and 300B |
| Environment | 0-55 C operation, -20 to 65 C storage; 5-90 percent RH; up to 2000 m; vibration 5.9 m/s2 at 10-55 Hz |
| USB | Personal computer connection for MR Configurator2 |
| Mass | 0.8 kg (10B, 20B, 40B), 1.5 kg (70B, 100B), 2.1 kg (200B, 300B) |
Controllers and wiring for MR-JE-B
The catalogue shows the amplifier connected to servo system controllers including the MELSEC iQ-R motion CPUs R16MTCPU, R32MTCPU and R64MTCPU, the Q-series Simple Motion and Motion CPUs, the iQ-F FX5-40SSC-S and FX5-80SSC-S modules, and the MR-MC series motion controller. Up to 16 axes can be set with the rotary switch on each amplifier, and connections between axes use MR-J3BUS cables of 0.5 m up to 40 m, depending on the type.
Power wiring depends on supply and size: sizes up to 1 kW share one terminal arrangement for 1-phase or 3-phase input, and 2 kW and 3 kW use an extra regenerative-option terminal set. A regenerative option replaces the built-in resistor on heavy duty axes; take care to disconnect the built-in resistor wires before connecting it. An absolute-position battery is optional.
Matching with servo motors
The same HG-KN and HG-SN servo motors that pair with the JE-A and JE-C amplifiers pair with the JE-B, and the B version supports either an absolute or an incremental 17-bit encoder with 131,072 pulses per revolution. Compare it with the older MR-J3-100BS4 if you are replacing SSCNET III hardware, or browse the servo drives category.
| Amplifier | Servo motor | Rated output | Mass |
|---|---|---|---|
| MR-JE-10B | HG-KN13(B)J | 0.1 kW | 0.8 kg |
| MR-JE-20B | HG-KN23(B)J | 0.2 kW | 0.8 kg |
| MR-JE-40B | HG-KN43(B)J | 0.4 kW | 0.8 kg |
| MR-JE-70B | HG-KN73(B)J / HG-SN52(B)J | 0.75 kW | 1.5 kg |
| MR-JE-100B | HG-SN102(B)J | 1 kW | 1.5 kg |
| MR-JE-200B | HG-SN152(B)J / HG-SN202(B)J | 2 kW | 2.1 kg |
| MR-JE-300B | HG-SN302(B)J | 3 kW | 2.1 kg |
Confirm before ordering: that the controller is SSCNET III/H capable, the motor model and size, supply phase, regenerative option, battery for absolute operation, and the SSCNET cable lengths.
Documents and quotation
The attached file is an excerpt of Mitsubishi Electric catalogue L(NA)03086-H with the SSCNET III/H overview page, the MR-JE-B specifications, wiring and dimension pages and the motor combination tables. Send the amplifier type, motor, supply, controller and quantity to Seven Star LLC, an independent supplier in Muscat, for a quotation.
