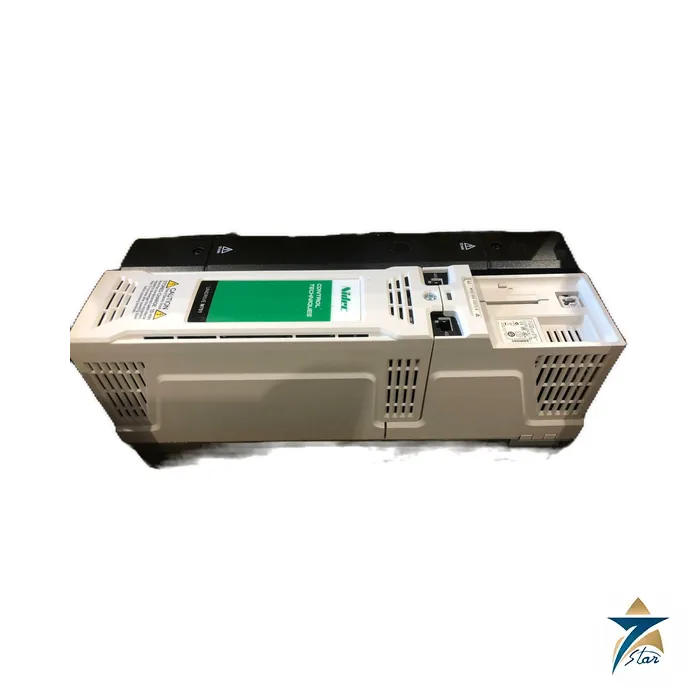

Control Techniques Unidrive M701 AC Variable Speed Drive
Overview
The Control Techniques Unidrive M701 is a universal variable speed AC drive from Control Techniques, part of the Nidec Corporation, engineered to deliver precise open-loop and closed-loop control of induction and permanent-magnet motors across a wide power range. Designed as the direct upgrade path from the legacy Unidrive SP platform, the Control Techniques Unidrive M701 combines onboard RS485 Modbus RTU communications with a single Safe Torque Off (STO) input, giving plant engineers a drop-in replacement that adds modern diagnostics, energy-saving control algorithms, and flexible fieldbus connectivity without redesigning the motor control cabinet or re-terminating existing field wiring.
Seven Star LLC supplies the Control Techniques Unidrive M701 to industrial and process facilities across Oman, Muscat, Sohar, Salalah, and the wider GCC as an experienced supply partner for genuine Control Techniques drives and spares. Every Control Techniques Unidrive M701 supplied through Seven Star LLC comes with manufacturer documentation and technical support, so that maintenance teams in the Sultanate of Oman can commission, configure, and service the drive with confidence.
Operating Principle
At the core of the Control Techniques Unidrive M701 is the 1.5-axis Advanced Motion Controller (AMC), a built-in programmable control core that lets the drive execute custom logic, PID loops, and sequencing directly on the drive rather than requiring an external PLC for simple applications. The drive rectifies incoming three-phase AC supply to a DC bus, then uses insulated-gate bipolar transistor (IGBT) switching to synthesize a variable-frequency, variable-voltage output waveform applied to the motor windings, allowing continuous adjustment of motor speed and torque to match real-time process demand rather than running the motor across the line at fixed speed.
Because the Control Techniques Unidrive M701 supports open-loop vector, closed-loop vector, and V/f control modes from a single hardware platform, the same drive can be configured for simple fan and pump duty or reconfigured for more demanding applications such as positioning, tension control, or coordinated multi-axis motion once an encoder feedback module is fitted. Auto-tuning routines identify motor parameters automatically during commissioning of the Control Techniques Unidrive M701, reducing setup time on site and improving torque accuracy at low speed, which matters on hoist, extruder, and winder duties where standstill torque control is critical.
Engineering Design
The Control Techniques Unidrive M701 is built around a modular Solutions Module architecture, with option slots that accept fieldbus modules for EtherCAT, PROFIBUS DP, PROFINET, EtherNet/IP, and Modbus TCP/IP, along with encoder feedback and additional digital or analogue I/O modules. This lets integrators tailor the drive to whatever plant communication standard is already in use, rather than forcing a change to the wider control architecture just to accommodate one new drive. The unit is housed in a compact IP20 panel-mount enclosure sized for cabinet installation, with heatsink fin spacing and forced-air cooling engineered to maintain rated output at ambient temperatures typical of enclosed switchrooms.
Build quality on the Control Techniques Unidrive M701 follows Control Techniques’ standard design practice: conformal-coated PCB options are available for humid or corrosive coastal environments, a consideration that matters directly for installations near Sohar port, Salalah, and other coastal industrial zones in Oman where airborne salinity and humidity can shorten the service life of unprotected electronics. The onboard STO input satisfies EN ISO 13849-1 safety requirements for removing torque-producing power to the motor without opening the main line contactor, simplifying machine safety-circuit design and reducing contactor wear on frequently cycled equipment.
Key Features
- Direct upgrade path from Unidrive SP with matching terminal layout for faster retrofit
- Onboard RS485 Modbus RTU communications with no extra module required
- 1.5-axis Advanced Motion Controller for onboard PLC-style logic and PID control
- Single Safe Torque Off (STO) safety input to EN ISO 13849-1
- Open-loop vector, closed-loop vector, and V/f motor control from one platform
- Solutions Module slots for EtherCAT, PROFIBUS, PROFINET, and encoder feedback
- Automatic motor parameter auto-tuning for fast, accurate commissioning
- Optional conformal coating for humid, dusty, and coastal GCC environments
Industrial Applications
Across Oman’s process industries, the Control Techniques Unidrive M701 is applied to conveyors and bulk material handling systems, centrifugal pumps and fans in water and wastewater treatment plants, cranes and hoists, extrusion lines, and CNC machine tool axes, wherever accurate, repeatable speed and torque control is required. Its ability to run both induction and permanent-magnet motors from the same drive family makes the Control Techniques Unidrive M701 a practical standard-platform choice for facilities that want to reduce the number of different drive types held in spares inventory across multiple sites.
Seven Star LLC supplies the Control Techniques Unidrive M701 on request for oil and gas, power generation, marine, and heavy manufacturing customers throughout Muscat, Sohar, Salalah, and the broader GCC, alongside manufacturer documentation and application engineering support so that replacement projects and new installations use correctly rated equipment.
Technical Specifications
| Model | Unidrive M701 |
|---|---|
| Manufacturer | Control Techniques (Nidec Corporation) |
| Drive Type | Universal variable speed AC drive |
| Control Modes | Open-loop vector, closed-loop vector, V/f |
| Onboard Communications | RS485 Modbus RTU |
| Safety Input | Single Safe Torque Off (STO), EN ISO 13849-1 |
| Control Core | 1.5-axis Advanced Motion Controller (AMC) |
| Enclosure Rating | IP20, panel mount |
| Optional Fieldbus | EtherCAT, PROFIBUS DP, PROFINET, EtherNet/IP |
| Motor Types Supported | Induction and permanent-magnet motors |
Get a Quote
Seven Star LLC is a trusted supplier of Control Techniques products supplying the Control Techniques Unidrive M701 and the full Unidrive M range across Oman, Muscat, Sohar, Salalah, and the GCC. Contact Seven Star LLC today for pricing, current availability and lead time, and technical support on your Control Techniques Unidrive M701 drive requirement.
Related Products
- Schneider Electric Lexium 32 Servo Drive
- LS Electric LSLV0022S100-4EXNNS S100 Series VFD
- Danfoss VLT AutomationDrive FC 302 Variable Frequency Drive
- Schneider Electric ATV212WD15N4 Altivar 212 HVAC Variable Speed Drive
- Schneider Electric Altivar Process ATV930 Variable Speed Drive
- Danfoss 132B0101 VLT Control Panel LCP 12
- Datasheet Control Techniques Unidrive M701 AC Variable Speed Drive Datasheet Download
Control Techniques drive families we list
The Commander C200 is a general purpose AC drive for open loop control of standard induction motors. The Unidrive M701 belongs to the high performance Unidrive M700 group and is the version with RS485 communications on board, the one normally chosen when an older Unidrive SP has to be replaced.Ordering Control Techniques drives and spares: what we need
Send the full model code from the rating label, which gives the frame size, voltage rating and current rating, together with the serial number. Add the motor nameplate data, the supply voltage and a list of the option modules in the drive slots. If parameters must be carried over, keep a copy of the parameter file or the memory card.Browse Control Techniques products by category: AC Drives.
