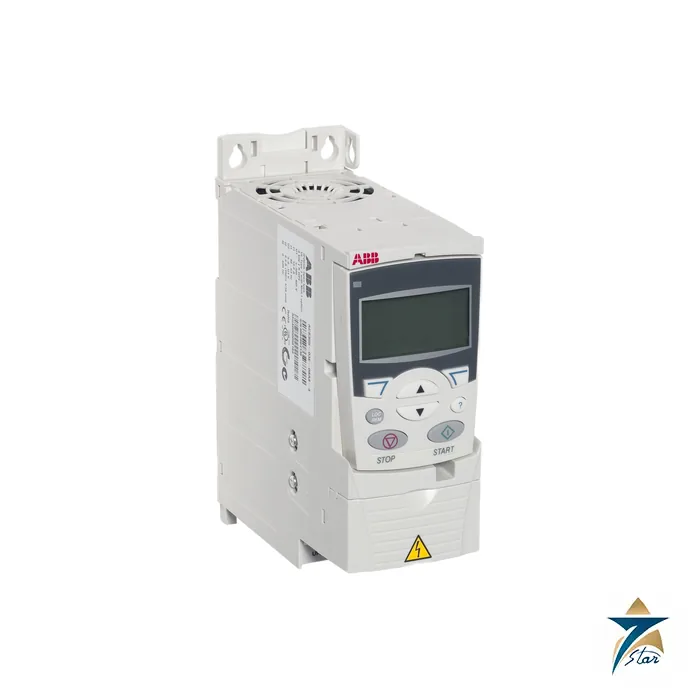

ABB ACS355-03E-07A3-4 Machinery Drive 3kW

Overview

ABB ACS355-03E-07A3-4 is a general-purpose machinery drive from ABB’s ACS355 low-voltage AC drive platform, rated for 3kW (4hp) three-phase 400V motors drawing up to 7.3A on the compact R1 frame. Sitting one step below the 4kW variant in the same ACS355 line, this rating is a common fit for small pumps, fan sections, and light conveyor drives where a machine builder needs dependable, energy-efficient speed control without over-specifying the drive for the load. Like the rest of the ACS355 family, it ships with an assistant control panel that guides a technician through commissioning using plain menu prompts rather than a spreadsheet of numeric parameter codes.

Working closely with plant engineers in the region, Seven Star LLC proudly supplies the ACS355-03E-07A3-4 machinery drive to industrial customers, system integrators, and OEM panel builders across Oman and the wider GCC. Every drive is supplied with manufacturer documentation and Seven Star’s own regional technical support, with a formal quotation for each order.

Operating Principle

Internally, the ABB ACS355-03E-07A3-4 works as a standard pulse-width-modulated (PWM) frequency converter: incoming 3-phase 400V AC is rectified to a DC bus, then converted back to a controllable AC waveform of variable voltage and frequency by an IGBT inverter bridge. This lets the drive vary motor speed continuously across its operating range rather than the fixed synchronous speed a motor would run at when connected directly to line voltage. Selectable scalar (V/Hz) or vector control lets an engineer trade off simplicity against dynamic torque response depending on whether the load is a straightforward centrifugal pump or a more demanding conveyor or mixer application.

Running the motor at exactly the speed the process requires — rather than at full speed with mechanical throttling downstream — is what delivers the real-world payoff of this control principle: lower energy draw on partial-load duty cycles, gentler mechanical starts that reduce belt and coupling wear, and the ability to ramp up or down smoothly instead of the abrupt torque spike of a direct-on-line motor start. For a 3kW pump or fan running well under rated load for much of a shift, this translates directly into measurable energy savings across the operating life of the equipment.

Engineering Design of the ABB ACS355-03E-07A3-4

The ABB ACS355-03E-07A3-4 shares the ACS355 family’s compact R1 frame, engineered to mount flush on a DIN rail or panel backplate without consuming excessive cabinet space. Its assistant keypad, either basic-text or graphical depending on ordering option, steps a commissioning engineer through motor nameplate entry, macro selection for the target application, and I/O assignment, which meaningfully shortens the time between unpacking the drive and having a motor running under closed-loop control. A removable memory module allows a proven parameter set from one machine to be duplicated onto sister units on a production line without re-entering every value by hand.

Power and control terminals sit on the front and lower face of the enclosure for accessible field wiring, while a top-mounted cooling fan draws air across the internal heatsink to keep the IGBT bridge within its thermal limits under continuous duty. Integrated EMC filtering and an optional built-in brake chopper reduce the amount of ancillary hardware a panel builder must add to satisfy CE marking and regional machinery-safety code requirements common across GCC industrial installations.

Key Features

The ABB ACS355-03E-07A3-4 is engineered for straightforward, reliable variable-speed control at a smaller power point in the ACS355 range. Key features include:

• 3kW (4hp) output rating at 7.3A continuous current on a 3-phase 400V supply, R1 frame size.
• Integrated EMC filter for reduced conducted emissions without external filter modules.
• Assistant keypad with guided commissioning wizard for fast, low-error start-up.
• Selectable scalar (V/Hz) and vector control for pump, fan, and general machinery loads.
• Removable memory unit enabling one-click parameter cloning across identical machines.
• Pre-built application macros tuned for pump, fan, HVAC, and conveyor duty.
• Built-in PID controller for closed-loop pressure, flow, or level regulation.
• Compact R1 frame footprint suited to space-constrained control panels and OEM enclosures.

Industrial Applications

The ABB ACS355-03E-07A3-4 is a natural fit for smaller pump stations, HVAC fan sections, light-duty conveyors, and general machine automation where a 3kW motor is the correct sizing. Across Oman’s industrial landscape, this rating appears in packaged utility pump skids, workshop and warehouse ventilation systems, and small OEM machinery built for facilities in the Sohar and Salalah economic zones, where integrators need a drive that is both physically compact and quick to commission on-site without a specialist drives engineer present for every unit.

With fast quotation turnaround and technical support, Seven Star LLC distributes the ACS355-03E-07A3-4 to machine builders, maintenance departments, and system integrators throughout Oman and the GCC, supporting projects in Muscat’s industrial estates as well as the wider Gulf region. Lead time and availability are confirmed at quotation, and Seven Star’s automation team provides application sizing support so engineers select the exact ACS355 rating their load actually requires.

Technical Specifications

The table below lists the key manufacturer-published ratings for the ABB ACS355-03E-07A3-4, and every ABB ACS355-03E-07A3-4 unit sold by Seven Star LLC matches this exact factory specification.

Request a Quote for ABB ACS355-03E-07A3-4

Seven Star LLC invites plant engineers, panel builders, and procurement teams across Oman and the GCC to submit a formal RFQ for the ABB ACS355-03E-07A3-4 machinery drive; availability and lead time for the ABB ACS355-03E-07A3-4 are confirmed at quotation. With engineering support in Muscat, Seven Star LLC supplies on request with lead time confirmed at quotation, provides the ABB technical datasheet for engineering review, and connects buyers directly with our automation division for sizing, technical, and retrofit support. Contact Seven Star LLC today to request pricing, lead times, and full technical documentation for your next drive procurement.
