Delta ME300 Basic Compact AC Motor Drive

Overview

The Delta ME300 is the basic compact drive in the Delta Electronics micro drive range. It is designed for simple speed control duties where size, cost and quick installation count most: single pumps and pump sets, conveyors, fans, woodworking, packaging and textile machines. Delta states that the series achieves up to 60 percent volume reduction compared with corresponding ratings of the older VFD-EL series, while adding user-defined parameter groups, single and multi-pump functions, a built-in brake chopper and an optional Class C2 EMC filter. The drive also replaces the discontinued Delta VFD-S series, and it shares the screwless terminal style used across the newer Delta compact drives.

Seven Star LLC supplies the Delta ME300 to pump skid builders, HVAC and plumbing contractors, OEM machine shops and maintenance teams across Oman and the GCC. Our Muscat office helps match the drive to motor current, supply voltage and installation conditions, and it can advise when a Delta ME300 is sufficient and when a larger vector drive would be the better choice.

Working Principle

A variable frequency drive changes motor speed by changing the frequency applied to the motor. Inside the Delta ME300, the supply is rectified to a DC bus and an inverter produces a pulse-width modulated output whose fundamental frequency can be set anywhere from 0 to 599 Hz. In V/f mode the drive keeps the voltage-to-frequency ratio in step so the motor magnetisation stays correct, while sensorless vector control estimates the motor flux and adjusts current to hold torque at low speed. For induction motors in heavy duty, the general specifications list 150 percent starting torque at 3 Hz and a speed control range of 1:50.

For pumping, the drive closes a PID loop around a pressure or flow signal and adjusts speed to hold the setpoint. When demand falls and pressure is stable, sleep mode stops the pump to avoid frequent start-stop cycles, and leakage detection prevents nuisance wake-ups. If the water supply fails, dry-run detection decelerates the pump to a stop to protect the seal and impeller. These functions save energy compared with throttling and reduce wear on the hydraulic system.

Engineering Design of the Delta ME300

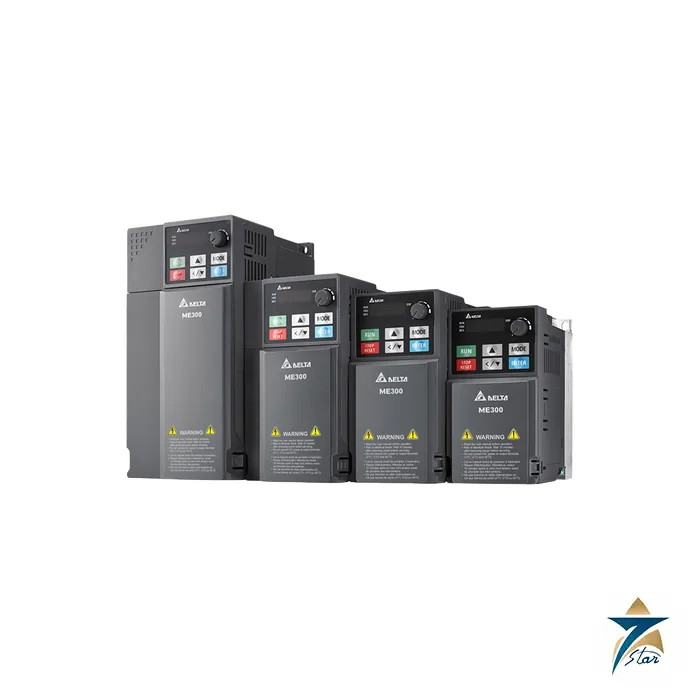

The Delta ME300 is built in frames A to D, with widths from 68 mm to 109 mm in the standard model tables. The front panel carries a 4-digit LED display, a frequency setting potentiometer and direction keys, so many installations can be run without an external keypad. The front case is screwless and removes by pressing two side tabs, the cooling fan can be replaced without tools, and a removable RFI jumper adapts the EMC filter to earthed or non-earthed supplies. Delta coats 100 percent of the printed circuit boards to IEC 60721-3-3 class 3C2, and an optional NEMA 1 kit improves protection where dust is present.

Side-by-side installation is supported at minus 20 to 40 degrees Celsius, and standalone installation is rated to 50 degrees Celsius without derating, with a maximum ambient of 60 degrees Celsius. DC plus and minus terminals allow a common DC bus between drives, so regenerative energy from one motor can be shared with others during deceleration. Built-in RS-485 Modbus, a 10 kHz pulse input for speed reference and analogue inputs of 0 to 10 V or 4 to 20 mA make the drive easy to connect to a PLC or a simple panel.

Key Features

The Delta ME300 brings the following capabilities to a basic compact drive, as listed by Delta.

• Up to 60 percent smaller volume than equivalent ratings of the older Delta VFD-EL series.
• Control of induction, interior permanent magnet and surface permanent magnet motors, with two independent motor parameter sets.
• Pump functions including sleep mode, leakage detection and dry-run protection.
• Multi-pump control with alternate operation and constant pressure mode for up to four pumps in Delta examples.
• Normal duty overload of 120 percent for 60 seconds and 150 percent for 3 seconds; heavy duty overload of 150 percent for 60 seconds and 200 percent for 3 seconds.
• Built-in brake chopper and Deceleration Energy Backup to stop the motor safely when power fails.
• Safe Torque Off complying with ISO 13849-1 Category 3 PL d, EN 61508 SIL2, EN 62061 SIL CL 2 and EN 60204-1 Category 0.
• Application groups (macros) and screwless control terminals for fast set-up and wiring.

Industrial Applications

The Delta ME300 is a natural fit for booster pump sets in residential towers and hotels in Muscat, for irrigation pumps on farms in Al Batinah and Dhofar, and for small transfer pumps in water treatment and desalination plants. Its multi-pump control lets one set of drives rotate duty between pumps so running hours are equalised, which matters in hot climates where pump motors run for long periods. In factories it drives conveyors, small fans, mixers and packaging machines where a compact drive with basic vector control is enough.

Facility management companies across the GCC often standardise on a small number of drive models to simplify spares. The Delta ME300 suits that approach for loads up to 7.5 kW, sitting below the larger Delta vector and HVAC drives. Seven Star LLC supplies the Delta ME300 with the appropriate accessories, and our Muscat team supports contractors with model selection, parameter guidance for pump control and replacement of legacy Delta VFD-S and VFD-M drives.

Technical Specifications

Key Delta ME300 data from the Delta Electronics catalogue is shown below. See the attached catalogue for full model tables and dimensions.

How to Order

To receive a quotation for the Delta ME300, send Seven Star LLC the model code or the motor rating and supply details, plus any pump control requirements. Our Muscat instrumentation and automation division confirms availability, provides the Delta catalogue for design and approval files, and supports engineers in Oman and the GCC. You may also review other drives we supply, including the ABB ACQ580 water and wastewater drive, the Siemens SINAMICS G120X and the Yaskawa GA500.
