Brand: Mitsubishi

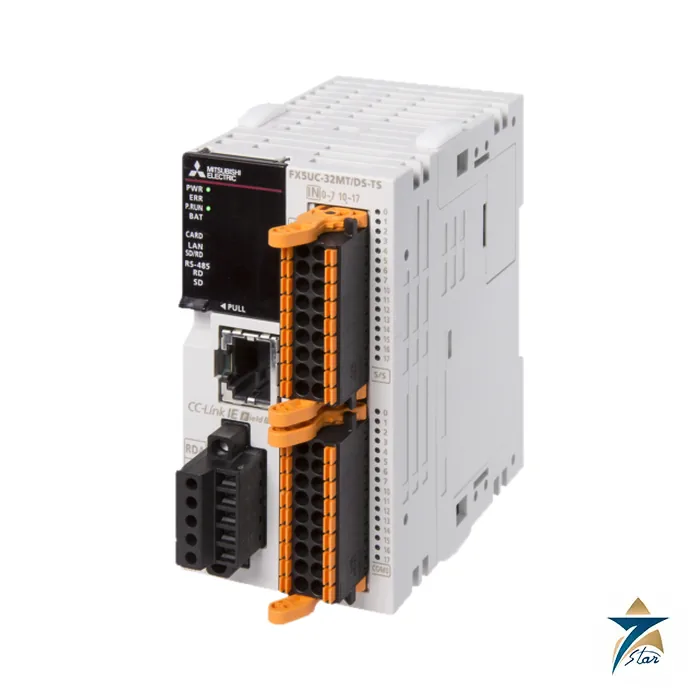

Mitsubishi FX5UC-32MT/DS-TS MELSEC iQ-F 32-Point PLC
Description
A narrow connector-type PLC for compact panels
The Mitsubishi Electric FX5UC is the connector-type CPU of the MELSEC iQ-F family. It is 24 V DC powered and only 42 mm wide in the 32-point version, so it suits compact control panels, OEM machines and distributed cells. The FX5UC-32MT/DS-TS shown has a spring-clamp terminal block instead of the standard connectors, which makes wiring without crimping possible.
Despite its size the CPU shares the FX5U performance: 64 k or 128 k steps of program memory, 34 ns instructions, SFC programming support and up to 512 I/O points including remote stations. Inputs X0 to X5 accept pulses at 200 kHz on the 32-point models.
Technical specifications
| Parameter | Specification |
|---|---|
| Series | MELSEC iQ-F FX5UC, compact connector-type CPU with 24 V DC supply |
| CPU models | FX5UC-32M (16 in / 16 out), FX5UC-64MT (32 / 32), FX5UC-96MT (48 / 48); /D sink, /DSS sink-source with source output, -TS spring-clamp versions of 32-point models |
| Power supply | 24 V DC (+20 / -15 percent); 5 W alone (30 W with maximum connections) for 32-point; 8 W (33 W) for 64-point; 11 W (36 W) for 96-point |
| Internal supply capacity | 5 V DC 720 mA; 24 V DC 500 mA |
| Fuse / inrush | 125 V 3.15 A time-lag; 35 A max. 0.5 ms (32/64) and 40 A max. 0.5 ms (96) |
| Program capacity | 64 k or 128 k steps (128 / 256 kbyte flash) |
| Memory | Device/label 150 kbyte; data memory 5 Mbyte; SD/SDHC to 16 GB; flash writes up to 20,000 |
| Instruction speed | LD 34 ns, MOV 34 ns (64 k steps) |
| I/O capacity | 256 or 384 local points; 384 or 512 remote points; 512 total |
| Programming | Ladder, structured text, FBD/LD and SFC (firmware 1.220 or later, GX Works3 1.070Y or later); function blocks and labels |
| Inputs | 24 V DC, 5.3 mA (X0-X17) / 4.0 mA; X0-X5 to 200 kHz (32-point); connector or spring-clamp terminal; sink (/D) or sink/source (/DSS, -TS) |
| Transistor outputs | 5-30 V DC; Y0-Y3 0.3 A per point, Y4 onward 0.1 A per point; max 0.8 A per common; response Y0-Y3 2.5 microseconds or less |
| Clock | +/-45 s per month at 25 C; retained about 10 days |
| Environment | -20 to 55 C operating; -25 to 75 C storage; 5 to 95 percent RH; up to 2000 m; vibration 4.9 m/s2 on DIN rail |
| Dimensions | 32-point: 42.1 mm wide, approx. 0.2 kg; 64-point: 62.2 mm wide, approx. 0.3 kg (width and mass as read from the catalogue table) |
| Ports | Ethernet and RS-485 built in; extension adapters for RS-232, RS-485 and analog; extension modules through extension connector |
Picking the right FX5UC type
Model codes show the wiring and logic: /D has sink inputs and sink outputs; /DSS has sink/source inputs and source outputs; the -TS suffix means a spring-clamp terminal block. The catalogue lists 32-point models with transistor outputs (MT) and a relay version (FX5UC-32MR/DS-TS), plus 64 and 96-point transistor models.
Because the supply is 24 V DC only, a separate power supply is required, and the catalogue lists the FX2NC-100MPCB power cable as an accessory of the connector-type units. I/O can be extended with extension-connector modules such as FX5-C16EX/D, FX5-C32EYT/D and FX5-C32ET/D, in the numbers shown in the catalogue lineup.
Confirm before ordering: connector or spring-clamp type, sink or source logic, the points needed, output type (the transistor outputs here are 0.1 to 0.3 A per point, so relays or interface modules are needed for larger loads), the program memory size and the 24 V DC supply. For an AC-powered terminal-block CPU see the Mitsubishi FX5U; for drives to connect see the FR-A840 inverter; more controllers are in the PLC and I/O category.
FX5UC sizes compared
| Model | I/O points | Mass | Width |
|---|---|---|---|
| FX5UC-32MT/D | 16 in / 16 out | 0.2 kg | 42.1 mm |
| FX5UC-64MT/D | 32 in / 32 out | 0.3 kg | 62.2 mm |
| FX5UC-96MT/D | 48 in / 48 out | See catalogue | See catalogue |
Documents and quotation
The attached file is an excerpt of the Mitsubishi Electric MELSEC iQ-F catalogue L(NA)08428ENG-G with the FX5UC system configuration, model selection, performance, power, input and output specifications, and dimensions. For a quotation, send the full model code, quantity and extension needs to Seven Star LLC, an independent supplier in Muscat.
Datasheets & Documents
- Catalog Mitsubishi Electric MELSEC iQ-F catalogue L(NA)08428ENG-G, FX5UC excerpt (selected pages) Download
Reviews (0)
About brand
Laboratories that run an NSX-2100 trace sulfur, nitrogen or chlorine analyzer usually know it as a Mitsubishi instrument. The nameplate reads Mitsubishi Chemical Analytech, a name later changed to Nittoseiko Analytech. Seven Star LLC lists the TN6RPC gas tube dryer set for this analyzer and sources NSX-2100 consumables for refinery and fuel-testing laboratories in Oman and the GCC.
The Mitsubishi listing also includes Mitsubishi Electric factory automation and drive products: MR-J3, MR-J5 and MR-JE servo amplifiers, GOT2000 and GOT SIMPLE HMI touch panels, FR-A800, FR-E800, FR-F800 and FR-CS80 FREQROL inverters, MELSEC iQ-F PLC modules, MELSEC A-series input and temperature modules with a memory cassette, and S-T magnetic contactors and TH-T thermal overload relays.
Mitsubishi NSX-2100 parts
The NSX-2100 was built with a horizontal or a vertical furnace, and one furnace can serve several detectors. The dryer set removes water from the combustion gas before it reaches the detector. Like the connection kits, it is a consumable, and its part code changes with the analyzer variant.
Ordering NSX-2100 consumables: what we need
Send the part code, for example TN6RPC, together with the exact analyzer model shown on the nameplate (the letters after NSX-2100 indicate furnace type and detectors), the serial number and the detectors fitted. Some original part codes have been replaced by newer ones, so we check each code against the manufacturer's current parts list before quoting.
Browse Mitsubishi products by category: Gas Analyzer Accessories.
Related products
Frequently Asked Questions
What supply voltage does the FX5UC use?
24 V DC (+20 / -15 percent); it has no AC supply input.
How many I/O points can it have?
32, 64 or 96 CPU points; up to 512 points in total including remote I/O.
What does the -TS suffix mean?
The unit has a spring-clamp terminal block instead of connectors.
What is the program capacity?
64 k or 128 k steps, with 128 or 256 kbyte flash memory.
What are the transistor output ratings?
5-30 V DC; 0.3 A per point on Y0-Y3 and 0.1 A per point from Y4 onward.
