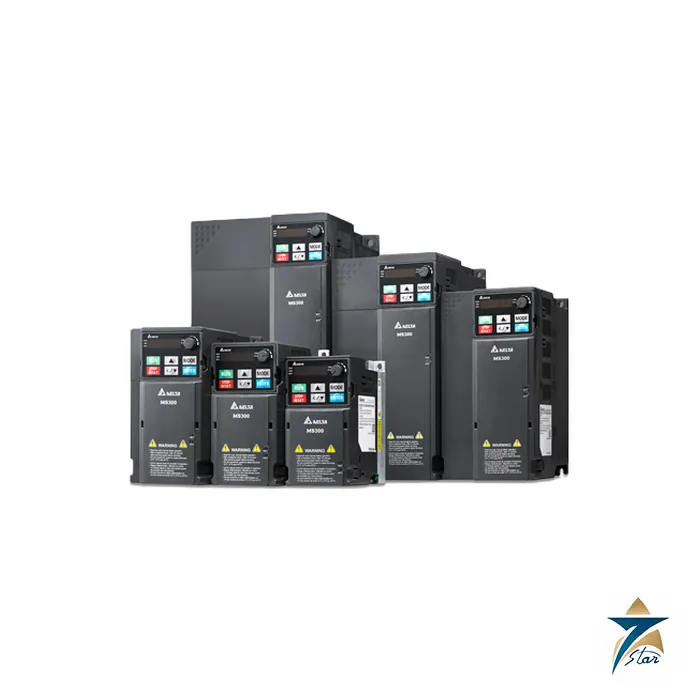

Delta MS300 Standard Compact AC Motor Drive

Overview

The Delta MS300 is the standard compact drive in the Delta Electronics micro drive family. Delta describes it as a new generation high performance compact vector control drive that is up to 40 percent smaller than earlier models while keeping functions normally found on larger drives: a built-in PLC, communication card slots, a USB port, Safe Torque Off and support for both induction and permanent magnet motors. It is intended for machine builders and system integrators who need many small motors controlled reliably in limited panel space, from packaging and textile machines to pumps and fans.

Seven Star LLC supplies the Delta MS300 to OEM workshops, maintenance departments and panel shops across Oman and the GCC. From Muscat, our engineers help select the right supply voltage, rating, EMC filter option and enclosure type, and they can recommend the Delta MS300 as a replacement path for older Delta VFD-B and VFD-M drives that Delta itself lists as superseded by this series.

Working Principle

The drive converts the fixed frequency mains supply into a DC link and then switches it through an inverter bridge to produce a variable voltage, variable frequency output for the motor. By changing frequency the drive changes motor speed, and by managing the ratio between voltage and frequency, or by running a vector model of the motor, it controls torque. The Delta MS300 delivers 200 percent starting torque at 0.5 Hz and keeps speed stable as load changes, which matters on machines with dynamic loading such as tool changers and woodworking spindles.

Two power-loss features are worth noting. Deceleration Energy Backup (DEB) brings the motor to a controlled stop when the supply fails unexpectedly, so tools and products are not damaged, and it can return the motor to its previous speed when power comes back. Deceleration Energy Control Mode adjusts motor speed and current to shorten braking time, and in suitable applications it reduces the need for an external braking resistor. A built-in brake chopper remains available when larger braking torque is required.

Engineering Design of the Delta MS300

The Delta MS300 is built in frames A to F. Its enclosure options include IP20 for cabinet mounting, IP40 models with strengthened fan coating and concealed air vents that keep dust out, and IP66 / NEMA 4X models that can be mounted directly on or beside the machine. The printed circuit boards are 100 percent coated to IEC 60721-3-3 class 3C2 for moisture, corrosion and dust resistance, and selected models carry a built-in Class A (C2) EMC filter so additional filters and wiring are not needed.

Installation details have been simplified throughout. The keypad is removable, a built-in USB port allows parameter upload and download without extra converters, control terminals use a screwless wiring design, and drives can be mounted side by side at operating temperatures of minus 20 to 40 degrees Celsius. An optional 24 VDC external power card keeps the control board and communications alive when the mains supply is off, which is useful for networked machines that must keep reporting status.

Key Features

The Delta MS300 combines the following functions in a single compact drive, based on the Delta catalogue.

• Up to 40 percent smaller than earlier Delta drives of similar rating, with side-by-side mounting to save panel width.
• Control of induction motors and surface permanent magnet motors, with four independent induction motor parameter sets.
• Built-in PLC with 2k steps of program capacity for distributed or stand-alone logic.
• Normal duty overload of 120 percent for 60 seconds and 150 percent for 3 seconds, and heavy duty overload of 150 percent for 60 seconds and 200 percent for 3 seconds.
• Integrated Safe Torque Off complying with ISO 13849-1 Category 3 PL d, EN 61508 SIL2, EN 62061 SIL CL 2 and EN 60204-1 Category 0.
• Built-in RS-485 Modbus, with optional PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, CANopen and EtherCAT cards.
• Standard models run 0 to 599 Hz, while high-speed models reach 0 to 1500 Hz.
• Carrier frequency adjustable from 2 to 15 kHz, with a default of 4 kHz.

Industrial Applications

Delta lists machine tools, woodworking machines, automatic tool changers, pumps, packaging machines and textile machines among the main applications for the Delta MS300. In Oman these duties appear in food and beverage plants in the Rusayl and Sohar industrial estates, in fabrication workshops supporting the oil and gas sector, and in building services where small pumps and fans run in hotels, hospitals and commercial towers in Muscat. The IP66 version suits wash-down areas and outdoor skids where a separate enclosure would add cost.

For water and irrigation contractors, the Delta MS300 offers a compact way to add speed control to small pumps, while the built-in PLC can handle simple sequencing without a separate controller. Seven Star LLC supplies the Delta MS300 with suitable option cards and accessories, and our Muscat team supports engineers working across the GCC with selection, parameter guidance and replacement planning for legacy drives.

Technical Specifications

The following Delta MS300 data is taken from the Delta Electronics catalogue. Refer to the attached document for frame dimensions and full model tables.

How to Order

For a formal quotation on the Delta MS300, send Seven Star LLC the drive model code, or the motor kW, supply voltage and enclosure requirement. Our Muscat instrumentation and automation division confirms availability, shares the Delta catalogue for your records, and supports buyers and engineers in Oman and the GCC. Related drives we supply include the Yaskawa GA500 industrial microdrive, the ABB ACS550 general purpose drive and the Danfoss VLT AQUA Drive FC 202.
