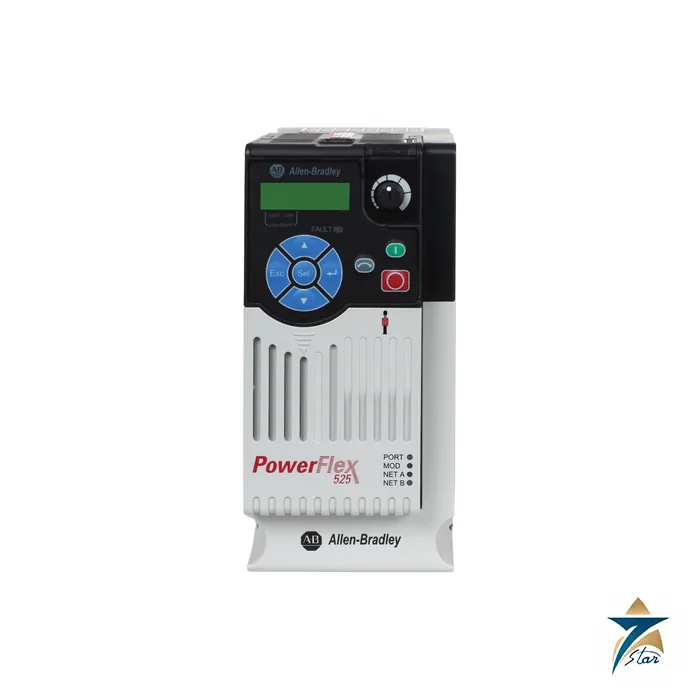

Allen-Bradley PowerFlex 525 AC Drive

Overview

The Allen-Bradley PowerFlex 525 is the higher-performance member of Rockwell Automation’s PowerFlex 520-series compact AC drives (Bulletin 25B). It covers motor ratings from 0.4 to 22 kW (0.5 to 30 HP) across 100–120 V, 200–240 V, 380–480 V and 525–600 V supplies, and combines an embedded EtherNet/IP port, a standard Safe Torque Off function and several motor control modes in one small, modular package. Where the PowerFlex 523 is a general-purpose drive, the PowerFlex 525 adds closed-loop velocity vector control, permanent magnet motor control, encoder feedback, point-to-point positioning and a second PID loop.

Seven Star LLC supplies the Allen-Bradley PowerFlex 525 to plant owners, panel builders, OEMs and EPC contractors in Oman and the GCC, with engineering support in Muscat. The drive is a frequent choice on pumps, fans, conveyors and packaged skids where a site already standardises on Logix controllers and wants the drive to appear as a native device in the same Studio 5000 project.

Operating Principle

Like other variable frequency drives, the Allen-Bradley PowerFlex 525 rectifies the incoming AC supply to a DC bus and then uses an IGBT inverter, switched with sinusoidal pulse width modulation, to rebuild a three-phase output of variable voltage and frequency. Output frequency is programmable from 0 to 500 Hz, and the carrier frequency is adjustable from 2 to 16 kHz for quieter motor operation. A relay-based precharge limits inrush current at power-up, and an integral brake transistor on every rating allows dynamic braking with a simple external resistor.

The control firmware of the Allen-Bradley PowerFlex 525 offers Volts per Hertz, sensorless vector control (SVC), SVC Economizer, closed-loop velocity vector control and permanent magnet motor control for surface-mount and interior permanent magnet motors. Rockwell specifies speed regulation of ±0.5% of base speed across a 100:1 range with SVC and no encoder, improving to ±0.1% across a 1000:1 range in velocity vector mode with encoder feedback. SVC Economizer reduces motor voltage at light load to save energy on variable-torque duties such as centrifugal pumps and fans.

Engineering Design of the Allen-Bradley PowerFlex 525

Each Allen-Bradley PowerFlex 525 consists of a power module and a detachable control module. The control module is common across the whole power range, so one spare suits every frame, and it can be configured on a desk before the power module is even installed. Using MainsFree programming, the control module is powered from a PC through a standard USB cable for upload, download and firmware updates without connecting mains. Five frame sizes (A to E) are available; frames A, B and C can be DIN-rail or panel mounted, while D and E are screw mounted. Zero stacking is allowed up to 45 °C ambient, which saves panel width in crowded MCC sections.

The standard enclosure of the Allen-Bradley PowerFlex 525 is IP20 (NEMA open type), with an optional IP30 / NEMA UL Type 1 conduit box. Integral EMC filtering is available on 200 V and 400 V ratings to meet EN 61800-3 category C2 and C3, and external filters extend compliance to category C1. On every Allen-Bradley PowerFlex 525, a removable MOV-to-ground jumper allows operation on ungrounded supplies, which is common on industrial networks in the region. The drive accepts two accessory cards without increasing its footprint, such as a dual-port EtherNet/IP card for Device Level Ring networks or an incremental encoder card for closed-loop feedback.

Key Features

The Allen-Bradley PowerFlex 525 brings several functions that usually require a larger drive into a compact unit:

• Embedded EtherNet/IP port for configuration, control and diagnostics, plus integral RS-485 with Modbus RTU and optional DeviceNet or PROFIBUS DP cards.
• Safe Torque Off as standard, certified to ISO 13849-1 and EN 61800-5-2 for ratings up to SIL 2 / PLd, removing rotational power without switching off the drive.
• Seven digital inputs, two isolated analog inputs (one unipolar, one bipolar), one analog output, two opto outputs and two relay outputs.
• Two PID loops, StepLogic sequencing with eight local positions and PointStop positioning that stops a load consistently without an encoder.
• Normal duty rating of 110% for 60 s and heavy duty rating of 150% for 60 s on drives above 15 kW, with heavy duty peaks up to 180% (200% programmable) for 3 s.
• Half DC bus operation and enhanced inertia ride-through to keep running through brownouts and voltage dips.
• Typical efficiency of 97.5% and a displacement power factor of 0.98 across the speed range.
• AppView and CustomView parameter groups in Connected Components Workbench, plus Add-on Profiles for Studio 5000 Logix Designer.

Industrial Applications

In Oman’s water and wastewater sector, the Allen-Bradley PowerFlex 525 runs lift station pumps, chemical dosing pumps, filter backwash blowers and clarifier drives, where its PID loops can hold a level or pressure set point directly. Desalination plants on the Batinah coast and utilities in Muscat use it on transfer pumps and ventilation fans, while district cooling plants apply it to cooling tower fans and secondary pumps. Upstream and midstream oil and gas facilities use it on packaged skids, air coolers, lube oil and chemical injection systems, often networked over EtherNet/IP to a CompactLogix or ControlLogix controller.

In manufacturing plants in the Sohar and Salalah free zones and the Rusayl and Nizwa industrial estates, the Allen-Bradley PowerFlex 525 drives conveyors, mixers, packaging machines, extruders and material handling systems, and its positioning functions suit indexing tables and simple pick-and-place axes. Seven Star LLC supplies the drive with the voltage class, frame, filter option, communication card and accessories matched to the motor and the panel, and can help with spares for installed drives across the GCC.

On the same Logix network, the PowerFlex 525 is often paired with the Allen-Bradley 5069-L340ERM CompactLogix controller.

Technical Specifications

Key data for the Allen-Bradley PowerFlex 525 are taken from Rockwell Automation publication 520-TD001I-EN-E (September 2025):

How to Order

To request an Allen-Bradley PowerFlex 525 quotation, send Seven Star LLC the motor power and current, supply voltage and phases, duty (normal or heavy), filter requirement, network and any option cards. Our Muscat team will confirm the catalog number, check stock and delivery to sites in Oman and the GCC, and provide the Allen-Bradley PowerFlex 525 datasheet, which is Rockwell publication 520-TD001 attached to this page. Related products on our site include the Allen-Bradley PowerFlex 755 AC drive for larger motors, the Allen-Bradley 1734-IB8 POINT I/O module and the Schneider Electric Altivar Process ATV930 drive.
