JUMO diraTRON 104 Compact Controller, Type 702114

Name: JUMO diraTRON 104 Compact Controller – Datasheet & Quote
Brand: JUMO
SKU: diraTRON 104

Description

Universal 96 x 96 mm controller for temperature, pressure and process loops

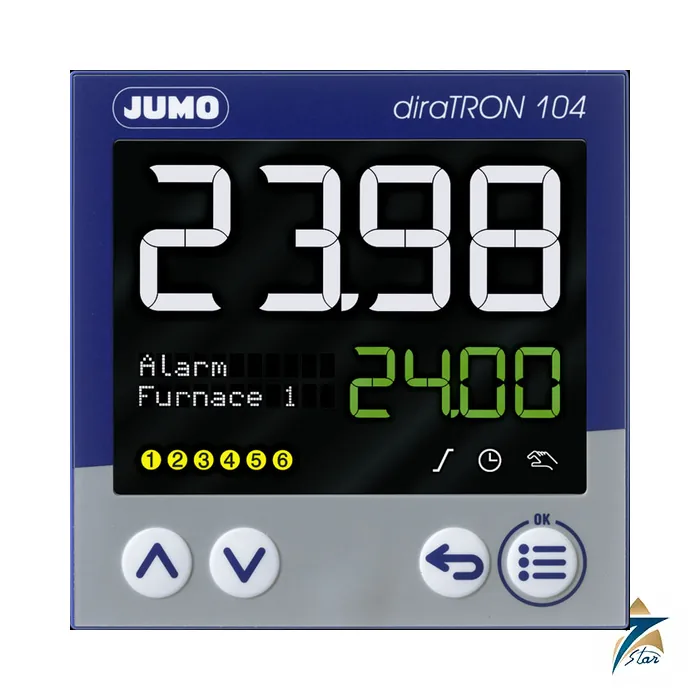

The JUMO diraTRON 104 (type 702114) is the largest model in the JUMO diraTRON compact controller series. It has a 96 mm x 96 mm front with two 18-segment LCD displays, white for the actual value and green for the setpoint, plus a pixel matrix line for plain-text messages such as alarm or plant names. The four-key membrane keypad and IP65 front make it suitable for panel doors in workshops and process plants.

The basic unit already contains autotuning, a ramp function, a program controller with up to 24 segments, manual mode, four limit value monitors, timers and a service counter. A math and logic function and user applications written in structured text (ST code) are available as extra codes.

Technical specifications

Parameter	Specification
Manufacturer	JUMO GmbH & Co. KG
Model / type	diraTRON 104 / 702114 (format 104, 96 x 96 mm)
Panel cut-out	92 (+0.8) x 92 (+0.8) mm; panel thickness 1 to 10 mm
Analog input	Universal: thermocouple, Pt100, Pt1000, KTY, 0 to 10 V, 4 to 20 mA, resistance transmitter, potentiometer
Accuracy (examples)	Pt100 three-wire 0.1 %; type K 0.25 %; 4 to 20 mA 0.1 % of range
Sampling rate	150 ms
Outputs (basic)	2 relays (N/O), max. 3 A at AC 230 V; switchable digital input/output (logic 0/14 V)
Output options	Relays, logic outputs, PhotoMOS relays, analog output 0(2) to 10 V / 0(4) to 20 mA
Interfaces	USB device (setup, USB-powered); options RS485 Modbus RTU or Ethernet Modbus TCP
Display	Upper 24.8 mm digits, lower 12 mm digits; text line 2 x 11 fields
Supply	AC 110 to 240 V or AC/DC 20 to 30 V, 48 to 63 Hz
Power consumption	Max. 6.6 W (AC 110 to 240 V)
Ambient temperature	-10 to +55 °C operation; -30 to +70 °C storage
Protection	IP65 front, IP20 rear
Connection	Push-in spring-cage terminals, 0.2 to 1.5 mm²
Weight	Max. 220 g
Approvals	cULus (all types); DNV GL and Bureau Veritas for listed variants

Other diraTRON formats

Model	Type	Front format
diraTRON 132	702110	48 x 24 mm
diraTRON 116	702111	48 x 48 mm
diraTRON 108 H	702112	48 x 96 mm
diraTRON 108 Q	702113	96 x 48 mm
diraTRON 104	702114	96 x 96 mm

Configuration and setup

The controller can work as a two-state, three-state, three-step or continuous controller, with two parameter blocks and up to four setpoints selected by binary signals. Configuration is easiest with the JUMO setup program on a PC: the USB port powers the device during setup, so no mains connection is needed on the bench. The setup program also records start-up curves, edits setpoint programs and supports customer linearisation with up to 40 value pairs. For larger multi-loop systems see the JUMO DICON touch.

Panel builders often choose the 96 x 96 mm format because the large 24.8 mm digits stay readable from a distance, while the text line can show the loop name or an alarm message. Before ordering, confirm whether a three-step output for a motorised valve, a continuous 4 to 20 mA output, or simple relay switching is required, because the output options must be selected in the order code and some inputs and outputs cannot be used at the same time.

Documents and quotation

The attached JUMO data sheet 702110 covers all five formats, the full input table, connection diagrams, dimensions and order codes. To quote, send the order code or the required format, supply voltage, outputs and interface. More instruments are listed under Controllers and Data Acquisition.

Datasheets & Documents

Datasheet JUMO diraTRON 104/108/116/132 data sheet 702110 (EN, V8.00, 2024-10) Download
