JUMO flowTRANS MAG H20 Hygienic Electromagnetic Flowmeter

Name: JUMO flowTRANS MAG H20 Electromagnetic Flowmeter
Brand: JUMO
SKU: flowTRANS MAG H20

Description

Compact electromagnetic flowmeter for small volumes and hygienic lines

The JUMO flowTRANS MAG H20 (type 406065) is a compact electromagnetic flowmeter that measures flow and temperature of conductive liquids. It mounts in plastic or metal pipes and measures very small volumes precisely; the sizes are DN 6, DN 15, DN 20 and DN 25 with full-scale flows of 5, 35, 75 and 150 l/min.

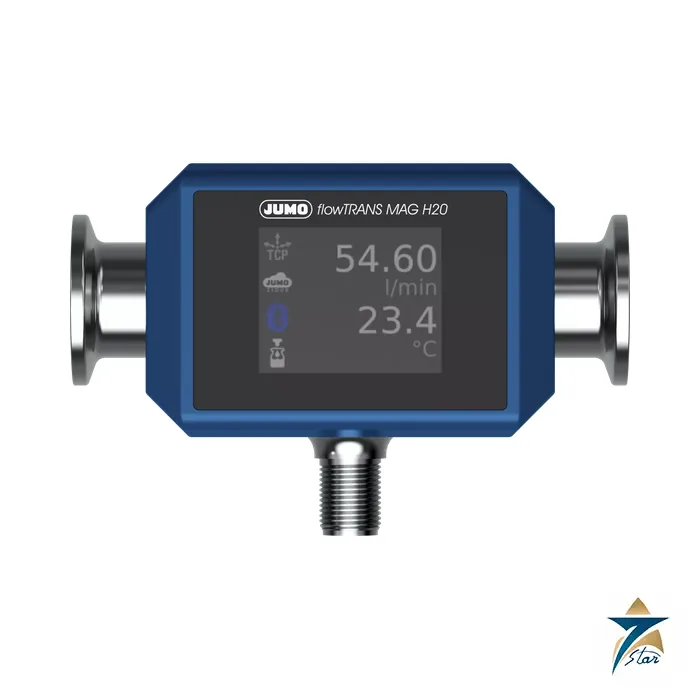

A display shows flow and temperature, and a Tri-Clamp version is securely welded for hygienic lines. Two variants exist: IO-Link with configurable analog outputs and Single Pair Ethernet with connection to the JUMO Cloud, both set up through the smartCONNECT app. The data sheet names the food and beverage industry and auxiliary systems such as cooling and process water.

Technical specifications

Parameter	Specification
Data sheet type	406065
Principle	Electromagnetic flow plus temperature
Sizes and Qmax	DN 6: 5 l/min; DN 15: 35 l/min; DN 20: 75 l/min; DN 25: 150 l/min
Flow accuracy	0.5 % of measured value +/-1.5 mm/s under reference conditions
Temperature measurement	-20 to +90 C, +/-2.5 K
Response time t90	Up to 250 ms
Minimum conductivity	20 uS/cm
Materials	Process connection 316L; PEEK measuring pipe; carbon fiber electrodes; EPDM or FKM seal
Supply	DC 18 to 30 V PELV
Interfaces	IO-Link; SPE (IEEE 802.3cg)
Protection	IP65, IP67
Approvals as printed	RED, FCC; UK radio regulations; pressure equipment: sound engineering practice for DN up to 25

Typical use

Small flows in cooling circuits, dosing lines, CIP supply and beverage processing are the natural fit, since DN 6 starts at 0.005 l/min. Because it also reports temperature, one device replaces a flow sensor and a temperature probe in the line.

The IO-Link version delivers values and diagnostics to a PLC master, while the SPE version feeds cloud dashboards over a two-wire cable up to 500 m. Both versions have the display on the device, so operators can read flow and temperature locally without a laptop.

Specifying and installing

State the size, the connection (thread or Tri-Clamp), the seal, the interface and the nominal pressure. The pressure loss diagram in the data sheet helps check DN 6 at high flows, and a derived rule is to keep the pipe full and the flow direction arrow correct. In hygienic lines, use the welded Tri-Clamp version with the correct gasket and avoid air pockets, because bubbles cause unstable readings in any electromagnetic meter.

The liquid must be conductive above 20 uS/cm, so demineralised water is not suitable. Confirm the pressure rating, cable and radio approvals for your country before ordering, and ask for the nominal pressure of the chosen connection, because the thread and clamp versions can differ in their limits and in their approved medium temperature.

Documents and quotation

Please check the size, connection and interface before ordering, because the final code depends on the installation. The attached manufacturer file, JUMO flowTRANS MAG H20 data sheet 406065 (EN), carries the authoritative data. Send the code you selected and the quantity, and we respond with a written offer. Similar instruments: Flowmeters.

Datasheets & Documents

Datasheet JUMO flowTRANS MAG H20 data sheet 406065 (EN) Download

Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

About brand

JUMO is the German maker of temperature sensors, process controllers, pressure transmitters and liquid analysis instruments. Moritz Kurt Juchheim founded it in Fulda in 1948 as M. K. Juchheim KG, making glass thermometers with six employees. The name JUMO comes from the founder's name. It is still a family company headquartered in Fulda, and the parent company has been called JUMO GmbH & Co. KG since 2003.

Seven Star LLC is an independent supplier in Muscat. We list JUMO RTD and thermocouple probes, thermowells, transmitters, controllers, recorders and water analysis instruments, and supply them to process plants, OEMs, HVAC contractors and water utilities in Oman and the GCC by type number.

JUMO company profile

Established	1948, Fulda, Germany, by Moritz Kurt Juchheim
First products	Glass and contact thermometers; platinum glass sensors from 1966
Ownership	Family-owned; renamed JUMO GmbH & Co. KG in 2003
Product families	RTD and thermocouple probes, thermowells, temperature and pressure transmitters, controllers and thermostats, safety temperature limiters, paperless recorders, liquid analysis and flow and level instruments

Milestones

1948: Moritz Kurt Juchheim founds M. K. Juchheim KG in Fulda, making glass thermometers with six employees.
1966: Platinum glass temperature sensors are added.
2003: The parent company is renamed JUMO GmbH & Co. KG.

JUMO products we list

Family	Models	Typical use
RTD and thermocouple probes	902020, 902030, 902050, 902120, 902006 2xPt100, PROCESStemp, mineral-insulated RTD, 901020 thermocouple, 901210, 902810 hygienic, 902550 surface, 902520 HVAC, MarineTemp	Temperature measurement in pipes, vessels, machines, HVAC and food plants
Thermowells and inserts	909710 thermowells, 909740 measuring inserts	Protecting sensors and replacing them without opening the process
Temperature transmitters	dTRANS T01, T03, T04, T05, T06 SIL, T07 HART, T09, T1000 IO-Link, DELOS T switch	Converting sensor signals to 4-20 mA, HART or IO-Link
Pressure and level	dTRANS p20, p30, p31 hygienic, p33 Ex, p02 DELTA, MIDAS S05, MIDAS DP10, DELOS S02, MAERA S25, NESOS R20	Pressure in process, hydraulic and OEM systems; tank and well level
Controllers, limiters and recorders	DICON touch, IMAGO 500, dTRON 316, iTRON, cTRON, diraTRON 104, eTRON T, safetyM STB/STW, safetyM TB/TW, LOGOSCREEN 601, mTRON T	Furnace, oven and process control, over-temperature protection and recording

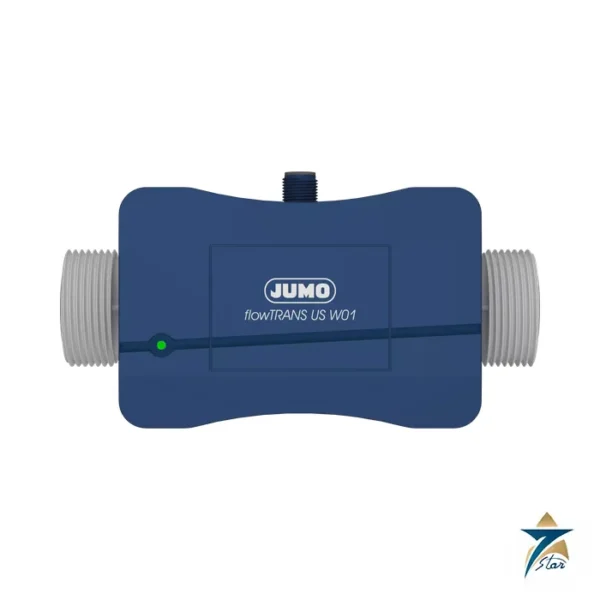

Liquid analysis and flow	AQUIS touch S, AQUIS touch P, AQUIS 500 pH, AQUIS 500 CR, dTRANS pH 02, pH electrode, digiLine DO, ecoLine NTU, flowTRANS MAG H20, flowTRANS US W01	pH, conductivity, oxygen and turbidity in water treatment; liquid flow
