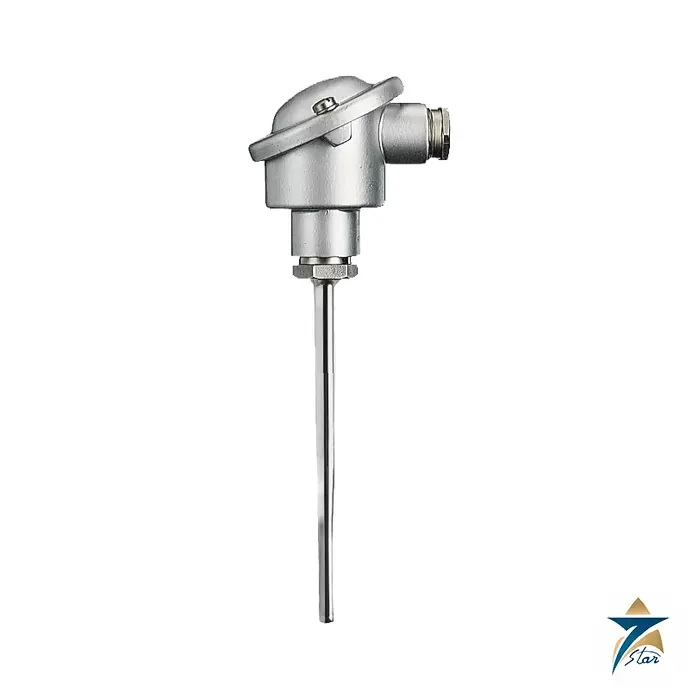

JUMO PROCESStemp RTD Temperature Probes for Process Plants
Description
DIN 43772 RTD probes for chemical and petrochemical plants
The JUMO PROCESStemp series (type 902820) is a family of Pt100 resistance temperature probes for process technology: chemical and petrochemical plants, pressure vessels and similar applications that measure liquids and gases. Each probe combines a protection fitting to DIN 43772, a terminal head and an interchangeable measuring insert, and the 40-page data sheet covers screw-in, flanged and thermowell versions in one place.
The protection fitting is stainless steel 1.4571 as standard, and highly corrosion-resistant materials and coatings are optional. The standard sensor is Pt100 to DIN EN 60751:2009 / IEC 60751:2008 class B, and class A, class AA, two-element and 3- or 4-wire versions are available. Versions with flameproof enclosure or intrinsic safety cover potentially explosive areas, and SIL and PL compatible variants exist through extra codes.
Technical specifications
| Parameter | Specification |
|---|---|
| Data sheet type | 902820 (basic types /10, /11, /20, /21, /50, /51) |
| Standards | Fittings to DIN 43772 forms 2G, 3G, 4; thermowell forms to DIN 43765, 43766, 43771 |
| Sensor | Pt100 DIN EN 60751 (alpha 3.850e-3), class B standard; class A, AA on request |
| Operating ranges (codes) | 150: -200 to +600 C (wire-wound); 386: -50 to +260 C; 402: -50 to +400 C; 415: -50 to +600 C (thin film) |
| Measuring insert codes | 1001 / 1003 / 1011 single Pt100 3-, 2-, 4-wire; 2001 / 2003 / 2011 double Pt100 |
| Protection tube | Stainless steel 1.4571, diameter 6, 9, 11 or 12 mm; titanium, tantalum, Inconel, Hastelloy on request |
| Process connections | G 1/2, G 1, 1/2-14 NPT, 1-11.5 NPT; flanges DN 25 / DN 40 PN 40 (EN 1092-1); thermowells 1.4571 or 1.7335 |
| Terminal heads | BUZ, BUZH (aluminium die-cast, IP65), BBKS (PA 6, IP54), BEGF (1.4541, IP65), XD Ex d / Ex tb (IP66) |
| Response time | t0.9 approx. 50 s (water 0.2 m/s, 9 mm tube) |
| Vibration | 20 g peak-to-peak at the insert tip |
| Transmitter options | Data sheets 707010, 707030, 707050, 707080 (HART/SIL), 707060 wireless |
| Approvals as printed | ATEX SEV 15 ATEX 0118 and IECEx SEV 15.0006 (extra code 362); CCC certificates for Ex i and Ex d |
How the order code works
The code starts with the basic type (for example 902820/10 screw-in with continuous protection tube), then the operating-temperature code, the measuring insert, the tolerance class (1 class B, 2 class A, 3 class AA), the tube diameter and insertion length EL (up to 1000 mm), the process connection (104 G 1/2, 106 G 1, 144 1/2 NPT, 146 1 NPT, 642 and 644 flange) and the protection-tube material (26 for 1.4571). Extra codes include 658 or 659 for SIL and PL compatible probes with yellow heads, and 362 for explosion protection.
The data sheet also lists standardized versions with fixed forms, for example B1 with 9 mm tube and 160 mm insertion in G 1/2, or C1 with 11 mm tube and 160 mm in G 1, as the quickest way to a stock configuration.
Choosing a probe for the plant
Decide first whether the probe is inserted directly or into a thermowell. Direct screw-in versions respond faster, whereas thermowells (see data sheet 909710) allow replacement without opening the process. For vessels, check the pressure rating of the fitting and the immersion length against the line size; EL up to 1000 mm is available.
In hazardous areas select the Ex d or Ex i head and a matching transmitter or barrier, and for safety loops use extra code 658 with the JUMO safety temperature limiter of data sheet 701150. JUMO offers factory test certificates to document measurement tolerance and materials.
Documents and quotation
Use the request form to ask for this model with your exact code. The attached JUMO PROCESStemp data sheet 902820 (EN, 40 pages) lists all variants and options, and the basic type, insertion length and process connection should be confirmed before the order is released. Other products of this kind can be found in Temperature Instrumentation.
Datasheets & Documents
- Datasheet JUMO PROCESStemp data sheet 902820 (EN, 40 pages) Download
