Thorlabs TED200C Thermoelectric Temperature Controller

Overview

The Thorlabs TED200C is a bench-top thermoelectric temperature controller designed to precisely regulate the temperature of laser diodes, photodetectors, and other temperature-sensitive optoelectronic components using a connected Peltier (TEC) element. Seven Star LLC supplies the Thorlabs TED200C across Oman and the GCC as part of its genuine Thorlabs catalog, giving regional photonics laboratories and industrial optoelectronics facilities a dependable local source for authentic Thorlabs temperature control instrumentation with responsive technical support.

Laser and detector engineers select the Thorlabs TED200C whenever a project needs standalone, high-precision temperature stabilization without the added complexity of an integrated current driver, making it a natural pairing with a separate Thorlabs laser diode driver in a two-instrument bench setup. With fast quotation turnaround and technical support, Seven Star LLC proudly supplies the Thorlabs TED200C across Oman and the wider GCC, backed by genuine stock, manufacturer-standard calibration data, and responsive local technical support.

Measurement and Working Principle

The Thorlabs TED200C reads temperature from a connected thermistor or AD590/LM335-type IC temperature sensor mounted at the load, then drives a bidirectional current through the attached Peltier element to heat or cool the component until it reaches the user-programmed setpoint. The proportional-integral-derivative control loop on the controller continuously compares measured temperature against setpoint and adjusts TEC drive current to hold the load within a fraction of a degree, compensating for ambient temperature drift and internal heat generated by the laser diode or detector itself. Configurable current and temperature limit protection on the Thorlabs TED200C shuts down the TEC drive if the sensor reports an open circuit, an out-of-tolerance reading, or an over-temperature condition, protecting the connected optoelectronic component from thermal damage.

Engineering Design of the controller

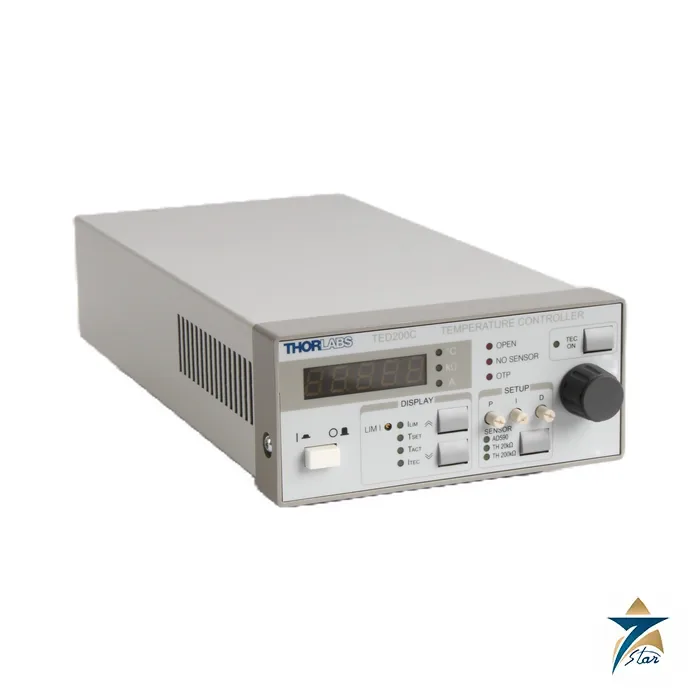

Housed in a compact bench-top chassis with a bright seven-segment display and a rotary adjustment knob, the Thorlabs TED200C presents temperature, current limit, and setpoint values directly on its front panel without requiring a connected computer for routine operation. Front-panel SETUP buttons let a technician select the connected sensor type (AD590, 10 kOhm or 20 kOhm thermistor), tune the P, I, and D control loop gains, and configure protection limits, while status LEDs indicate OPEN sensor, NO SENSOR, and OTP (over-temperature protection) fault conditions at a glance. The controller is commonly paired with a separate Thorlabs laser diode current driver such as the LDC series, giving a lab a modular two-box solution where the temperature controller and current driver can be serviced, calibrated, or replaced independently.

Key Features

• The Thorlabs TED200C provides precision PID temperature control of a connected Peltier element based on thermistor or IC sensor feedback.
• The controller supports multiple sensor types, including AD590 and both 10 kOhm and 20 kOhm thermistors.
• The Thorlabs TED200C includes configurable current and temperature limit protection with dedicated OPEN, NO SENSOR, and OTP fault LEDs.
• The controller displays temperature, setpoint, and current limit directly on its front-panel seven-segment display.
• This bench-top TEC controller pairs naturally with a separate Thorlabs laser diode driver for a modular two-instrument bench setup.
• This Thorlabs temperature controller uses front-panel SETUP buttons for tuning PID gains without a computer connection.

Industrial Applications

The Thorlabs TED200C is widely used in photonics research laboratories, university optics departments, and applied physics facilities across Oman and the GCC to stabilize the temperature of laser diodes and detectors during spectroscopy, wavelength-sensitive measurement, and long-duration experiments where thermal drift would otherwise corrupt the data. In fiber-optic and telecommunications testing environments, the controller helps hold laser sources at a stable operating temperature so their emission wavelength stays within a tight tolerance band throughout a test sequence. Semiconductor and detector characterization facilities also rely on the Thorlabs TED200C to hold photodetectors at a fixed reference temperature, since detector responsivity and dark current are both temperature-dependent and must be controlled for repeatable measurements.

Because the Thorlabs TED200C operates independently of any specific current driver, laboratories across the region use it to add precision temperature control to existing laser setups without replacing an already-qualified current source, simplifying incremental lab upgrades. With regional stock and engineering support in Muscat, Seven Star LLC distributes the Thorlabs TED200C to laboratories, industrial facilities, and research institutions throughout Oman, Muscat, and the Sohar and Salalah economic zones, backed by regional stock and manufacturer-standard support.

Educational and training laboratories at Omani and GCC universities also deploy the Thorlabs TED200C in photonics and optoelectronics coursework, giving students practical exposure to closed-loop PID temperature control on real laser diode and detector hardware.

System integrators building OEM laser modules or custom optoelectronic instrumentation across the region use the Thorlabs TED200C during prototyping to validate thermal management approaches before committing to embedded TEC driver circuitry in a production design.

Seven Star LLC’s Thorlabs catalog, including the TED200C, gives regional photonics buyers a single trusted local partner for temperature controllers, laser diode drivers, and optical measurement instrumentation, simplifying procurement for laboratories that previously sourced this equipment individually from overseas suppliers.

Facilities running multiple temperature-critical laser stations across a site also benefit from standardizing on the Thorlabs TED200C, since a shared instrument platform simplifies spares planning, calibration scheduling, and operator training across every bench.

Because the modular TEC-only design of the Thorlabs TED200C keeps temperature control electronics separate from current-driving electronics, a facility that later switches to a different laser diode driver, or adds a second driver channel to an existing setup, can usually keep the same TED200C in service rather than replacing an integrated current-and-temperature instrument outright.

Technical Specifications

Also available: Thorlabs KDC101 K-Cube Brushed DC Servo Motor Controller

Request a Quote for Thorlabs TED200C Thermoelectric Temperature Controller

Seven Star LLC supplies the Thorlabs TED200C and the broader Thorlabs range of TEC controllers, laser diode drivers, and optical measurement instrumentation with genuine stock and technical support across Oman, the UAE, Saudi Arabia, and the wider GCC. Contact Seven Star LLC today for a fast quotation and expert guidance on configuring the Thorlabs TED200C for your laser diode or detector temperature stabilization application. Backed by genuine manufacturer documentation, Seven Star LLC guarantees genuine Thorlabs TED200C stock with full manufacturer warranty and regional technical support.
