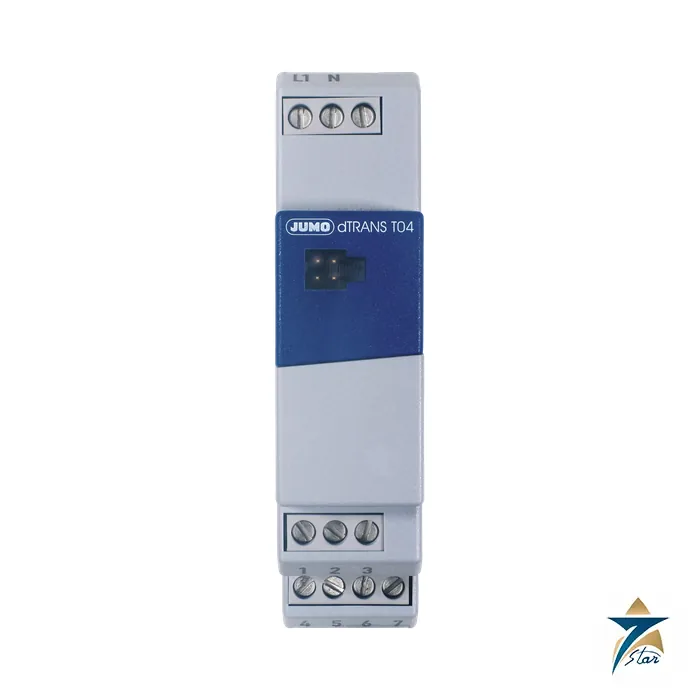

JUMO dTRANS T04 Four-Wire Rail Transmitter for Pt100, Pt1000 or Potentiometer, Type 707040

Name: JUMO dTRANS T04 Four-Wire Transmitter 707040 | Seven Star LLC
Brand: JUMO
SKU: dTRANS T04

Description

A DIP-switch or PC-configured four-wire transmitter with galvanic isolation

The JUMO dTRANS T04 (type 707040) is a four-wire transmitter for industrial temperature or resistance measurement with Pt100 or Pt1000 resistance thermometers or a potentiometer, in 2-wire or 3-wire sensor circuit. It sits on a 35 mm DIN rail to EN 60715 and delivers a selectable output of 0 to 20 mA, 4 to 20 mA or 0 to 10 V, linear with temperature or resistance. The analog signal path is continuous, so the output follows a temperature change quickly and with low noise, and range-specific gain adjustment preserves accuracy on small spans.

The measuring range and output response can be set directly on the instrument with a DIP switch, while the PC setup program offers further ranges and parameters. The supply is electrically isolated from the input and output, which helps in cabinets where signal grounds differ. Three basic versions cover Pt100, Pt1000 and potentiometer inputs, and the sensor type cannot be switched afterwards.

Technical specifications

Parameter	Specification
Basic types	707040/1 (Pt100), 707040/2 (Pt1000), 707040/3 (potentiometer)
Range limits	Pt100/Pt1000 -200 to +850 degC; potentiometer 0 to 11000 ohm
Shortest / largest span	25 degC / 1050 degC; potentiometer 250 / 11000 ohm
Range start, shortest span	-50 to +20 degC; potentiometer 0 to 500 ohm
Sensor circuit	2-wire or 3-wire; lead resistance up to 11 ohm per conductor (3-wire)
Sensor current	Max. 0.5 mA (Pt100); max. 0.1 mA (Pt1000, potentiometer)
Output signal	0 to 20 mA, 4 to 20 mA or 0 to 10 V, selected by DIP switch or PC
Burden / load	Current output 750 ohm or less; voltage output 10 kohm or more
Transfer accuracy	Max. +/-0.1 %; residual ripple max. +/-0.2 %
Calibration accuracy	Pt100 +/-0.3 % or 0.3 degC; Pt1000 +/-0.5 % or 0.5 degC; potentiometer +/-0.3 %
Settling time	40 ms on a temperature change; 200 ms after switch-on
Supply	AC 110 to 240 V +10/-15 % (4 VA) or AC/DC 20 to 53 V, 48 to 63 Hz (3 VA)
Test voltage / isolation	3700 V (mains supply) or 500 V; supply isolated from input and output
Operating temperature	-25 to +55 degC; storage -40 to +90 degC
Temperature error	Max. +/-0.01 % per degC
Climatic class	EN 60721-3-3 class 3K3; vibration to GL characteristic 2
Housing	Polycarbonate, DIN rail EN 60715, IP20, approx. 100 g
Fault levels	Under 3.6 mA; over 21.6 to 28 mA (24 mA typical); voltage over 11 to 14 V

Ordering and configuring the dTRANS T04

The order code is 707040/basic version – input – output – supply, with the example 707040/1 – 888 – 888 – 23. Input code 888 is factory-set (3-wire circuit, 0 to 100 degC for the Pt types and 0 to 1 kohm for the potentiometer) and 999 is configuration to customer specification in plain text. Output code 888 is factory-set 0 to 20 mA and 999 customer-specified. Supply code 22 is AC/DC 20 to 53 V and 23 is AC 110 to 240 V. The datasheet advises checking whether the required range and output can be set by DIP switch, in which case factory-set can be ordered.

Accessory	Part no.
PC setup program, multilingual	00448774
PC interface USB/TTL with adapters	00456352

The PC setup program configures a 14-character TAG number, probe and cable break response, range start and end, output signal and 2-wire lead resistance, and it provides fine adjustment of the output by +/-0.2 mA or +/-0.1 V. The transmitter must be connected to its supply during configuration.

Installation notes and signalling of faults

The device is intended for switching cabinet mounting to EN 50178 and for SELV/PELV circuits on the low-voltage version. Overvoltage category III and pollution degree 2 apply to EN 61010 part 1. There is no electrical isolation between input, output and setup connector, so connect the PC interface only when the loop is safe to do so. Fine adjustment through the setup program lets a technician compensate systematic errors such as those caused by an unsuitable probe mounting.

For underrange the 4 to 20 mA output falls to 3.6 mA or less, the 0 to 20 mA output goes below 0 mA and the voltage output below 0 V; for overrange the current rises to between 21.6 and 28 mA and the voltage to 11 to 14 V. Probe and cable break response, positive or negative, is selectable. With the potentiometer version the output is linear with resistance, so it suits valve-position feedback or damper positions alongside Pt100 measurements on the same rail.

As general guidance, record the order code printed on the nameplate before requesting a quotation, and keep the data sheet revision with the project documents so that later replacements match the installed device. Tell us the quantity, the delivery location in Oman and any wiring or mounting accessories you also need, and we will confirm availability and lead time for the exact variant.

Documents and quotation

The JUMO data sheet 707040 (V1.01) can be downloaded below. Seven Star LLC supplies JUMO transmitters from Muscat; state the sensor version, output, supply voltage and range for a quotation. See https://omansevenstar.com/product-category/sensors-transmitters/temperature/ for matching temperature probes.
