JUMO dTRANS T1000 IO-Link Temperature Sensor

Name: JUMO dTRANS T1000 IO-Link Temperature Sensor | Seven Star
Brand: JUMO
SKU: dTRANS T1000

Description

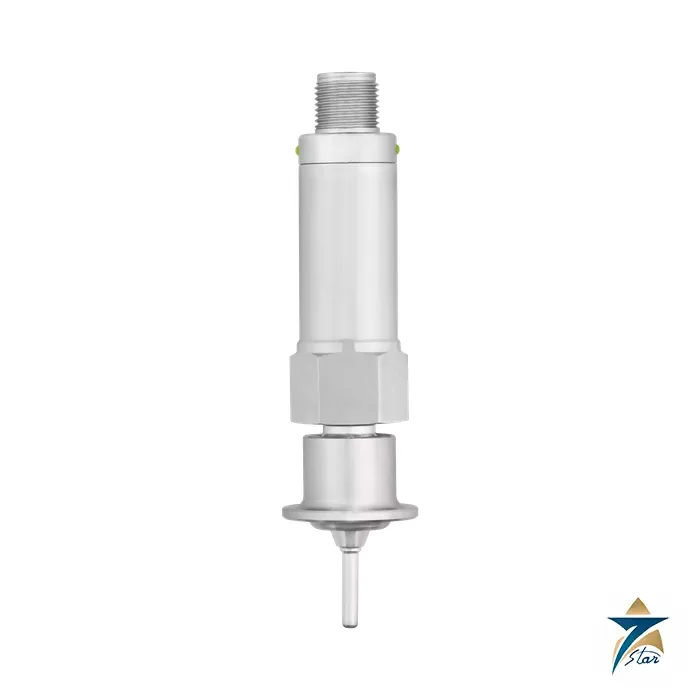

Compact stainless steel temperature sensor with IO-Link

The JUMO dTRANS T1000 (type 902915) is a compact, fully welded stainless steel temperature sensor with an IO-Link interface to specification 1.1. A Pt1000 element in 4-wire measurement feeds an electronic unit that amplifies, digitises and transmits the value as process data, together with parameters, diagnostics and status messages.

It offers one IO-Link output or two switching outputs in SIO mode, each configurable for PNP or NPN, hysteresis or window function, normally open or closed, and switching delays up to 100 s. Two green LEDs show supply and IO-Link communication. The data sheet names process automation, food and beverage machines and general machine building, with many hygienic and standard process connections.

Technical specifications

Parameter	Specification
Data sheet type	902915 (/10 and /30 ranges)
Sensor	Pt1000 to DIN EN 60751, 4-wire
Measuring range	902915/10: -50 to +150 C; 902915/30: -50 to +260 C
Sensor accuracy	Class A: +/-(0.15 + 0.002 x \|t\|) C; Class AA: +/-(0.10 + 0.0017 x \|t\|) C
Electronics	Calibration accuracy 0.08 % of range; ambient influence 0.0025 %/K
Sampling rate	160 ms; 2nd order digital filter
Outputs	1 IO-Link output (V1.1, COM3 230.4 kBaud) or 2 switching outputs
Switching current	Up to 100 mA per output; short-circuit and polarity protected
Response time	Water 0.4 m/s: t0.5 = 5 s, t0.9 = 12 s (6 mm tube); faster with 3 mm tube
Cable length	Up to 20 m unshielded
Approvals as printed	UL (E201387); H2 ready (KIWA, type 902915/10)

Why IO-Link

The point-to-point link uses standard prefabricated cables, avoids wiring errors and returns process values, parameters and diagnostics to the controller. Automatic parameter transfer allows a replacement sensor to be set up without a laptop, and a different but compatible sensor can be detected.

Response time depends on the protection tube: the 3 mm tube is fastest, the offset 6 mm tube sits in between and the standard 6 mm tube is slowest, which matters for fast control loops.

Selecting a version

State the range (150 or 260 C), the accuracy class, the tube diameter and length, and the process connection, for example a hygienic clamp. As a derived example, a pasteurising line at 95 C fits the 150 C range with a hygienic connection.

A pressure sensor with IO-Link, described in data sheet 402058, shares the same interface. Check the IO-Link master you plan to use and the approval status of the exact type code before ordering. Plan the cable route as well: IO-Link allows up to 20 m of unshielded cable, so long runs to remote skids need an IO-Link hub or a master located closer to the sensor, and the M12 connector must be tightened to keep the protection rating.

Commissioning is quick because the IO-Link master can write all parameters in one step: set the switching points, the hysteresis or window, the delays and the filter, then store them in the master so a replacement sensor receives the same set automatically. Label each sensor with its tag, and keep the IODD file with the project documents so that engineers can reconfigure the device years later.

Documents and quotation

Use the request form to ask for this model with your exact code. The attached JUMO dTRANS T1000 data sheet 902915 (EN) lists all variants and options, and the range, tube length and process connection should be confirmed before the order is released. Other products of this kind can be found in Temperature Instrumentation.

Datasheets & Documents

Datasheet JUMO dTRANS T1000 data sheet 902915 (EN) Download
