JUMO dTRANS T09 Cable Transmitter for Pt100/Pt1000, 4-20 mA or IO-Link, Type 707090

Name: JUMO dTRANS T09 Cable Transmitter 707090 | Seven Star LLC
Brand: JUMO
SKU: dTRANS T09

Description

An M12 in-line transmitter that retrofits any four-wire Pt100 or Pt1000

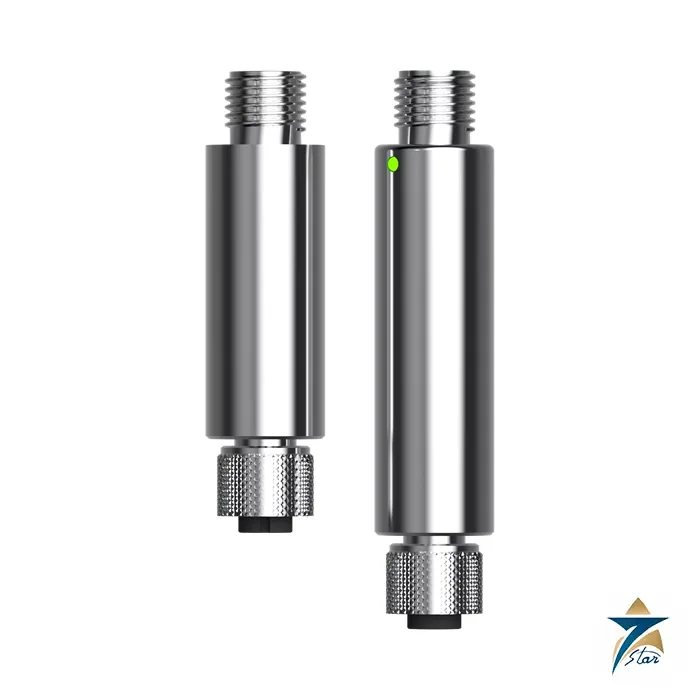

The JUMO dTRANS T09 is a cable transmitter for temperature that turns an existing Pt100 or Pt1000 probe into a standardized signal without opening a connection head. It is offered as the dTRANS T09 AS (type 707090) with a 4 to 20 mA analog output and as the dTRANS T09 DS (type 707091) with an IO-Link interface. Input and output are made through M12 plug connectors, so plant retrofitting and digitization need only short downtime and installation is plug and play.

The stainless steel case has protection ratings of IP66, IP67 and IP69 with mating connectors, and it withstands vibration of 10 g from 10 to 2000 Hz and shock of 20 g for 11 ms. The input is a four-wire Pt100 or Pt1000 over -50 to +260 degC. The AS version is configured with the JUMO setup program through a PC interface and a configuration cable, whereas the DS version is configured through an IO-Link master with the IODD file and can also be run as a switching output in SIO mode.

Technical specifications

Parameter	Specification
Types	707090 (T09 AS, analog 4 to 20 mA); 707091 (T09 DS, IO-Link)
Input	Pt100 or Pt1000 to EN 60751 in four-wire circuit (chosen at order, not interchangeable)
Measuring range	-50 to +260 degC; smallest span 10 K (AS)
Sensor line resistance	Up to 11 ohm per line
Sampling rate	AS: 1 measurement per second; DS: 160 ms
Accuracy, AS	Pt100 0.2 K or 0.13 %; Pt1000 0.1 K or 0.08 % (larger value applies)
Accuracy, DS	Pt100 within +/-0.08 %; Pt1000 within +/-0.1 % (of 310 K range)
Output, AS	Load-independent 4 to 20 mA, temperature linear; max. burden RB = (Ub – 8 V) / 23 mA, max. 600 ohm
Fault signals, AS	NAMUR NE43: under 3.8 mA, over 20.5 mA, probe fault 3.6 mA or below / 21.0 mA or above (configurable)
Supply, AS	DC 8 to 35 V, current max. 25 mA incl. load; SELV/PELV only
Supply, DS	DC 18 to 32 V in IO-Link operation; DC 9.6 to 32 V in switch operation
IO-Link, DS	IO-Link device V1.1, downward compatible to V1.0; max. line length 20 m; IODD available
Galvanic isolation	None between sensor and output
Electrical safety	Protection class III per DIN EN 61140; reverse polarity protection (AS)
Connectors	M12 x 1, 4-pole machine connectors to DIN EN 61076-2-101 (input socket with union nut, output pin)
Protection	IP66, IP67, IP69 with mating connector, stainless steel case
Ambient / storage temperature	-40 to +85 degC / -40 to +85 degC
Climate / vibration / shock	Class 3K7; 10 g at 10 to 2000 Hz; 20 g for 11 ms
Weight, AS	Approx. 35 g
Approval	UL certificate 2022-07-27-E201387 (UL 61010-1, CAN/CSA-C22.2 No. 61010-1)

Order code, probes and accessories for the T09

The order code is basic type / configuration – input / extra code, with the example 707090 / 8 – 1011 / 061. Configuration 8 is the default setting (the AS output is scaled 0 to 100 degC; the DS output is fixed at -50 to +260 degC and not scalable) and 9 is a customer-specific setting. Measurement input 1011 is one Pt100 in four-wire circuit and 1013 one Pt1000 in four-wire circuit; a Pt100 version cannot connect a Pt1000 sensor and vice versa. Extra code 061 adds UL approval.

Accessory	Part no.
M12 connecting cable (PUR), 5-pole shielded, 500 mm	00638312
M12 connecting cable (PUR), 5-pole shielded, 1500 mm	00638313
Output cable PVC with M12 socket, 4-pole, 2000 mm	00404585
M12 cable socket, straight, 5-pole, self-assembly	00419130
M12 cable socket, angled, 5-pole	00419133
Setup program on CD-ROM (AS only)	00485016
PC interface USB/TTL with USB line (AS only)	00456352
Configuration line 4-pole M12 to RJ-45 (AS only)	00484692

JUMO names the dTRANS T100 probe without electronics (type 902815), the VIBROtemp with M12 connector (type 902040) and other RTD probes with connecting lines as suitable partners. Power supply units are covered in data sheet 707500.

Installation, supply and monitoring

The supply must meet SELV requirements and come from a limited-energy circuit as defined in EN 61010-1. There is no galvanic isolation between sensor and output, so use a supply isolator or isolation amplifier (data sheet 707530) where ground loops are a concern. On the AS version the setting time after switch-on or reset is 5 s or less, and the output current is limited to 25 mA or less during a probe short-circuit or break.

On the DS version, process data are flagged invalid through a configurable IO-Link event, and the unit can drive a switching output in SIO mode. Because a four-wire probe is used, lead resistance of up to 11 ohm per line does not affect the reading. The compact stainless body, high ingress protection and shock rating make it a sensible choice for washdown areas, machine builders and skids where a head transmitter would be difficult to fit.

Documents and quotation

The JUMO data sheet 707090 (V3.00, 2022-11-09) is available below. Seven Star LLC supplies JUMO sensors and transmitters from Muscat; send the version (AS or DS), sensor type, configuration and extra codes for a quotation. Related items are listed under https://omansevenstar.com/product-category/sensors-transmitters/temperature/.

Datasheets & Documents

Datasheet JUMO data sheet 707090 (dTRANS T09), V3.00 2022-11-09 Download
