JUMO dTRANS T06 Four-Wire Rail Transmitter with SIL
Description

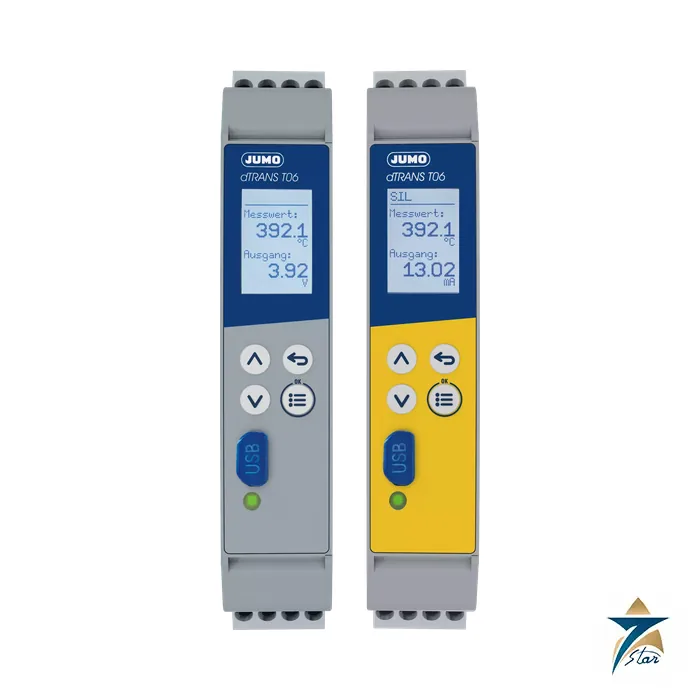

Universal four-wire transmitter for DIN-rail cabinets
The JUMO dTRANS T06 (type 707071) is a multifunctional four-wire transmitter in a DIN-rail case. It accepts RTD probes in 2-, 3- or 4-wire circuit, thermocouples including double thermocouples, resistance and potentiometer signals, and standard signals of 0(4) to 20 mA or 0 to 1/10 V, and it converts them to a galvanically isolated analog output of 0(4) to 20 mA or alternatively 0(2) to 10 V.
It is assessed to DIN EN 61508 and EN ISO 13849: the data sheet states it meets SIL 2 / SIL 3 and PL c / PL d with systematic capability SC = 3, with a TUV Nord certificate. A dot-matrix LCD with white backlight and a red/green status LED show the value, and extra codes add a limit-value relay with an RS485 Modbus RTU interface or a DNV GL approval.
Technical specifications
| Parameter | Specification |
|---|---|
| Data sheet type | 707071 (T06 Junior is 707070) |
| RTD inputs | Pt50, Pt100, Pt500, Pt1000, Ni100/500/1000, Cu50, Cu100; 2-, 3- or 4-wire; Pt100 range -200 to +850 C |
| RTD accuracy | From +/-0.1 K (Pt100, 4-wire, -100 to +200 C) to +/-0.5 K depending on type and wiring |
| Thermocouples | J -210 to +1200 C; K -200 to +1300 C; T -200 to +400 C; L, U and further types, typically +/-0.1 % |
| Sensor current / line resistance | Below 0.3 mA; up to 50 Ohm per wire (3- and 4-wire) |
| Output | 0(4) to 20 mA or 0(2) to 10 V, galvanically isolated |
| Supply | AC 110 to 240 V (+10/-15 %, 48-63 Hz) or DC 24 V (+10/-15 %); max. 3 W, 10 VA |
| Display | Dot-matrix LCD 64 x 96 pixels, backlit; red/green LED |
| Relay (code 018) | Changeover limit-value relay; 30 000 switching operations at AC 240 V 3 A resistive |
| Interfaces | USB device for setup; RS485 Modbus RTU slave (code 018) |
| Protection | IP20; weight about 200 g with screw terminals |
| Approvals as printed | TUV Nord SEBS-A.093409/14V1.0 (SIL 2/SIL 3 per DIN EN 61508; PL c/PL d per EN ISO 13849); DNV GL via extra code 062 |
Order code
The code reads 707071 / version / supply / extra codes. Version 8 is the standard unit with default settings and version 9 a configuration to customer specification given in plain text. Supply is 23 (AC 110 to 240 V) or 29 (DC 24 V, only to SELV or PELV circuits). Extra codes are 018 for the RS485 interface and limit relay, 058 for SIL and PL approval (yellow front foil) and 062 for DNV GL approval.
Scope of delivery is the transmitter and an operating manual; the setup program for the dTRANS T06 series (part no. 00668006), a 3 m USB cable (00616250) and a screw-on end clamp for the rail (00528648) are listed as accessories.
Why choose a four-wire rail unit
Where signals are collected in a panel and sensors are routed in long cables, a rail transmitter with isolated input, output and supply avoids ground loops, and the 4-wire sensor connection removes lead-resistance error. Linearisation variants (linear, temperature-linear, customer-specific) are selectable, and measuring-range limits can be set in steps of 0.1 K.
For field-mounted sensors use a head transmitter such as the dTRANS T07 or T05. Cold-junction compensation for thermocouples uses an internal Pt1000 or a fixed or external value according to the setting.
Documents and quotation
Please check the supply voltage, SIL extra code and output type before ordering, because the final code depends on the installation. The attached manufacturer file, JUMO dTRANS T06 data sheet 707071 (EN), carries the authoritative data. Send the code you selected and the quantity, and we respond with a written offer. Similar instruments: Temperature Instrumentation.
