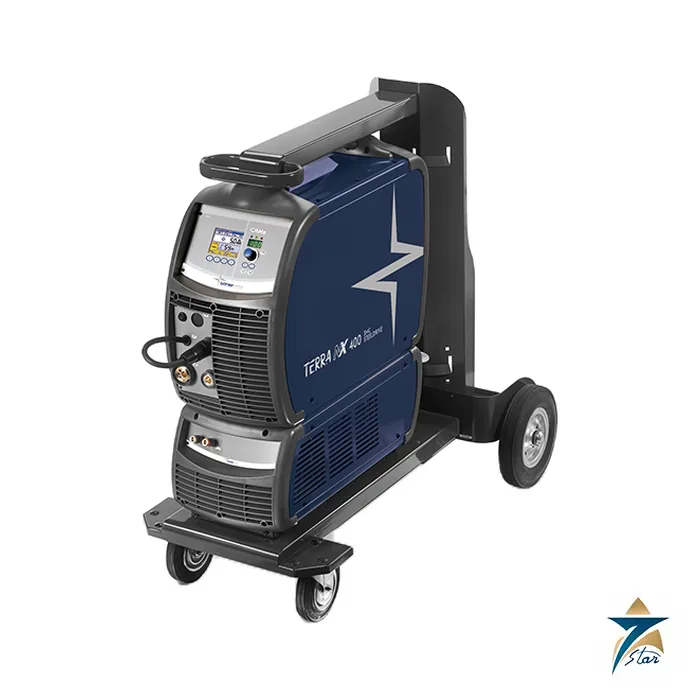

Böhler Welding TERRA NX 400 SMC MIG/MAG Welding Machine

Name: Böhler TERRA NX 400 SMC MIG/MAG Welding Machine – Datasheet
Brand: Böhler Welding
SKU: TERRA NX 400 SMC

Description

Three-phase MIG/MAG inverter with built-in wire feeder

The Böhler Welding TERRA NX 400 SMC is a MIG/MAG welding machine with inverter technology and a three-phase supply. According to Böhler Welding, it combines the power source with a built-in wire feeder unit, offers MIG/MAG welding with two proprietary welding processes, and stores up to 240 personalized programs, called jobs. The machine is built around the Inverter ThreeLevel technology by Böhler Welding, with digital CANBUS communication at 500 Kbs.

Welding current is adjustable from 3 to 400 A. The wire drive is a four-roll motorgear that takes wire spools of 200 or 300 mm diameter, with a wire speed of 0.5 to 22.0 m/min.

Technical specifications

Parameter	Specification
Manufacturer	Böhler Welding (voestalpine)
Model	TERRA NX 400 SMC
Application	MIG/MAG welding, inverter technology, three-phase supply
Inverter technology	Inverter ThreeLevel by Böhler Welding
Communication	CANBUS digital communication, 500 Kbs
Power supply (50/60 Hz)	3 x 400 V +/- 15 %
Maximum input power	20.9 kVA
Maximum input current	30.1 A
Power factor / cos phi	0.73 / 0.99
Efficiency	89 %
Adjustment range	3 to 400 A
Open circuit voltage	61 V DC
Slow blow line fuse	25 A
Power supply cable	4 x 3 mm2, 5 m
Protection class / insulation class	IP23S / H
Dimensions (power source)	690 x 290 x 510 mm
Weight (power source)	34.0 kg
Wire feeder technology	4-roll motorgear by Böhler Welding
Wire speed	0.5 to 22.0 m/min
Wire spool diameter	200 / 300 mm
Wire drive unit power	90 W (CLASSIC, SMART); 120 W (STEELDRIVE)
Welding programs	18 (SMART); up to 600 (STEELDRIVE)
Personalized programs (jobs)	240 (STEELDRIVE)
MIG/MAG processes	ArcDrive (CLASSIC, SMART); ArcDrive and RapiDeep (STEELDRIVE)
User panel	LED (CLASSIC, SMART); 3.5 in colour graphic LCD (STEELDRIVE)
Cooling unit	WU 330: 705 x 305 x 250 mm, 15.0 kg, 1.0 kW, 5.5 l coolant, 1 x 400 V, IP23S
Torches (liquid cooled)	MT 440 W / MT 440 W U/D (STEELDRIVE) / PP PLUS 401D; MT 440 W rated 450 A at 100 % with Ar/CO2, wire 0.8 to 1.6 mm, cable 3 to 4 m
Trolley	GT 500 / GT 700
Validation program	Included

Choosing the wire feeder version

The data sheet lists three wire feeder versions with the same power source. WF NX CLASSIC has an LED panel and no stored programs. WF NX SMART adds 18 welding programs. WF NX STEELDRIVE has a 3.5 in colour graphic LCD, up to 600 programs in total, 240 personalized jobs and the additional RapiDeep process alongside ArcDrive, and a slightly stronger 120 W wire drive. Main MIG/MAG functions named for the family include welding speed, arc dynamic, spot welding, crater filler and MIG bi-level, with the exact set depending on the version.

The standard torch choice is a liquid-cooled MT 440 W, which means the cooling unit WU 330 is part of the working package. A trolley, GT 500 or GT 700, carries the power source and cooling unit.

Supply and installation points

With a maximum input current of 30.1 A and a 25 A slow blow fuse, the machine needs a three-phase 400 V connection with a suitable cable (4 x 3 mm2, 5 m supplied length as listed). The IP23S protection class is for use where the machine is not exposed to direct rain. Confirm the generator or mains capacity against the 20.9 kVA maximum input power before commissioning on a remote site.

Documents and quotation

The attached Böhler Welding technical data sheet lists the equipment options, technical features and technical data for the TERRA NX 400 SMC. For a quotation please send the application and material, the wire or electrode type and diameter, the mains supply available on site, the cooling method and torch you need, and the quantity. Related machines are listed under MIG/MAG Welding Machines.

Datasheets & Documents

Datasheet Böhler Welding TERRA NX 400 SMC technical data sheet (EN) Download
