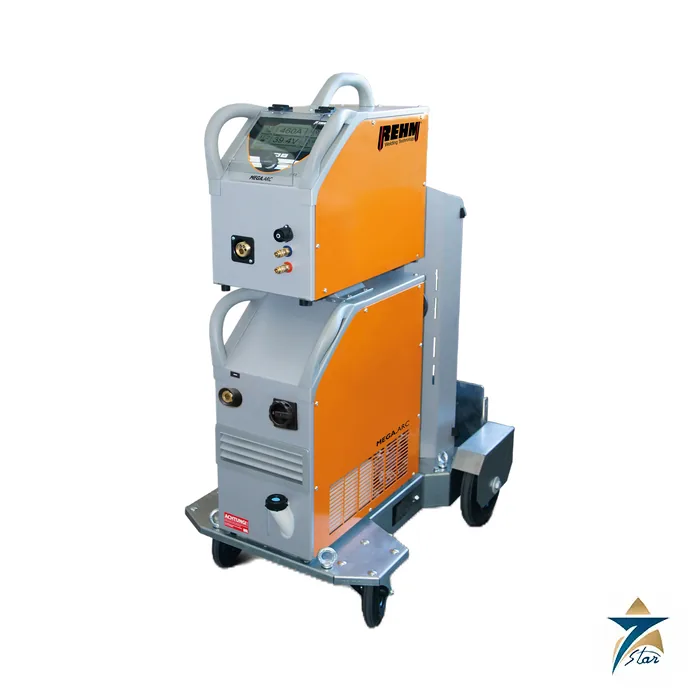

REHM MEGA.ARC P 450 WS Pulse MIG/MAG

Name: REHM MEGA.ARC P 450 WS Pulse MIG/MAG – Brochure & Quote
Brand: REHM
SKU: MEGA.ARC P 450 WS

Digital pulse MIG/MAG for demanding fabrication

The REHM MEGA.ARC P 450 WS is the largest water-cooled, separate-feed-case version of REHM’s MEGA.ARC P series of fully digital pulse MIG/MAG machines. The series is intended for fabricators who weld steel, stainless steel and aluminium at higher current and want to control heat input and spatter. REHM quotes up to 460 A, with 400 A at 100 % duty cycle for the 450 class.

The machine carries four digitally controlled processes: POWER.ARC for standard welding, POWER.PULS for pulse and double-pulse work on steel, stainless and aluminium, FOCUS.ROOT for thin-material and root welding with almost no spatter, and FOCUS.ARC for a short, deep-penetrating arc. REHM states that FOCUS.ARC can cut grinding dust by up to 80 % and rework by up to 80 % in suitable applications, which is the manufacturer’s claim and depends on the job.

Operation is through the SIRIUS display, with graphic visualisation, assist functions and, per REHM, readiness for Industry 4.0 connection with freely configurable interfaces.

Technical specifications

Parameter	Specification
Manufacturer / model	REHM / MEGA.ARC P 450 WS
Item number	1307188 (water-cooled with wire feed case)
Setting range	20 to 460 A
Duty cycle at Imax	60 %
Weld current at 100 % duty	400 A
Open-circuit voltage	75 V (450 class)
Wire diameter	1.0 / 1.2 mm
Mains connection	3 x 400 V, tolerance +15 / -25 %
Fuse	32 A
Power factor	0.99
Power consumption at Imax	20.6 kVA
Protection type	IP 23
Weight, with wire feed case, water-cooled (WS)	73 kg (without undercarriage)
Dimensions	650 x 330 x 1,100 mm L x W x H, WS version without undercarriage
Digital processes	POWER.ARC, POWER.PULS, FOCUS.ROOT, FOCUS.ARC

Versions and undercarriages

Version	Item number (450 class)	Configuration
MEGA.ARC P 450	1307185	Compact, gas-cooled
MEGA.ARC P 450 S	1307187	Feed case, gas-cooled
MEGA.ARC P 450 W	1307186	Compact, water-cooled
MEGA.ARC P 450 WS	1307188	Feed case, water-cooled

Options listed by REHM include the Profi and Advanced 50 l undercarriages, a trolley, an upright stand, an air pre-filter, a toolbox, crane lifting lugs for the feed unit and shock-proof display covers. The 1.2 mm wire is common for this class, but the brochure lists 1.0 and 1.2 mm only.

What to confirm before ordering

Confirm the three-phase 400 V supply and 32 A fuse, the torch and cooling arrangement, and which undercarriage or trolley suits the workshop. State the materials and thicknesses so the right pulse or FOCUS process can be considered. If fume extraction or robot integration is planned, tell us so the interface options can be checked.

The 450 class is the right size when high current and long arc-on time are routine. Where most work is thin or medium plate, the 300 and 350 sizes of the same series, rated by REHM at 280 A and 320 A at 100 % duty, are lighter alternatives. The feed case versions (S and WS) keep the heavy power source on the floor while the wire feed unit sits closer to the joint, which helps on large assemblies.

Documents and quotation

The REHM MEGA.ARC P brochure is on this page. Compare other machines under MIG/MAG Welding Machines, for example the EWM Phoenix XQ 500 puls D.

To request a quotation send the version, item number, supply, wire and material range and accessories.

Product lines and technology

The range includes the SYNERGIC.ARC heavy-duty MIG/MAG machines, the MEGA.ARC and FOCUS.ARC pulse systems, TIGER digital portable TIG inverters, BOOSTER stick (MMA) inverters and BARRACUDA plasma cutters. The machines use the SIRIUS graphic operating system, and the TIG line adds the HYPER.PULS, HYPER.SPOT and DUAL.WAVE processes. The manufacturer also supplies welding accessories, training and service.
